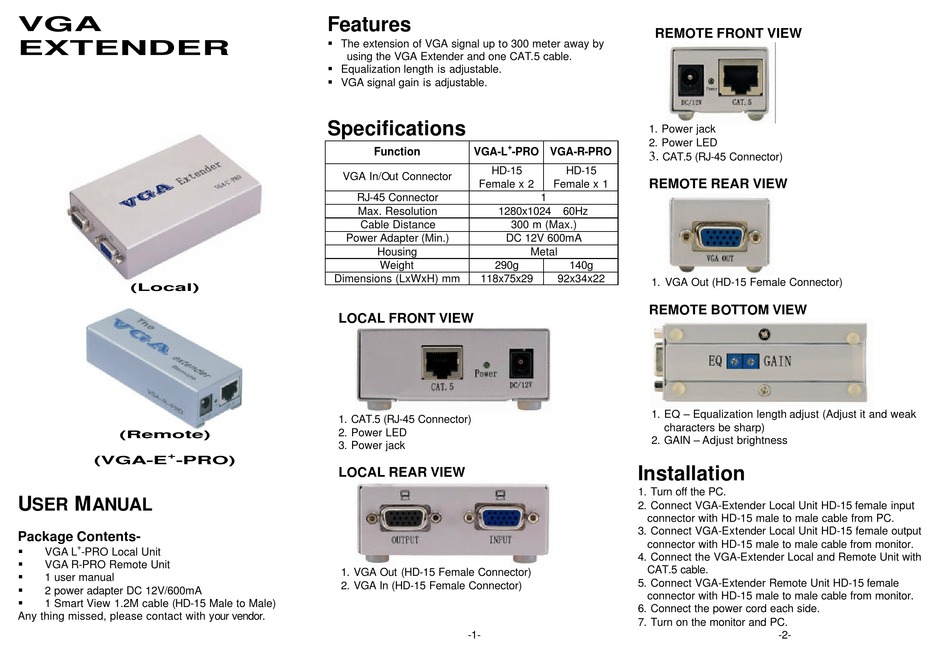

Ace Plus VGA-L-PRO User Manual

VGA
EXTENDER
(Local)
(Remote)
+
(VGA-E -PRO)
U M
SER ANUAL
Package Contents-
+
§

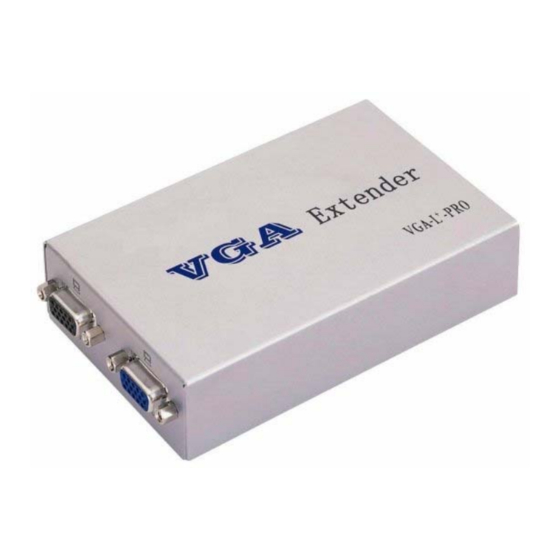

VGA L -PRO Local Unit
§
VGA R-PRO Remote Unit
§
1 user manual
§
2 power adapter DC 12V/600mA
§
1 Smart View 1.2M cable (HD-15 Male to Male)
Any thing missed, please contact with your vendor.

Features

§ The extension of VGA signal up to 300 meter away by
using the VGA Extender and one CAT.5 cable.
§ Equalization length is adjustable.
§ VGA signal gain is adjustable.

Specifications

Function VGA-L
HD-15
VGA In/Out Connector
Female x 2
RJ-45 Connector
Max. Resolution 1280x1024
Cable Distance
Power Adapter (Min.)
Housing
Weight 290g
Dimensions (LxWxH) mm 118x75x29
LOCAL FRONT VIEW
1. CAT.5 (RJ-45 Connector)
2. Power LED
3. Power jack
LOCAL REAR VIEW
1. VGA Out (HD-15 Female Connector)
2. VGA In (HD-15 Female Connector)
-1-
REMOTE FRONT VIEW
1. Power jack
2. Power LED
+
-PRO VGA-R-PRO
3.
CAT.5 (RJ-45 Connector)
HD-15
REMOTE REAR VIEW
Female x 1
1
60Hz
300 m (Max.)
DC 12V 600mA
Metal
140g
92x34x22
1. VGA Out (HD-15 Female Connector)
REMOTE BOTTOM VIEW
1. EQ – Equalization length adjust (Adjust it and weak
characters be sharp)
2. GAIN – Adjust brightness

Installation

1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female input
connector with HD-15 male to male cable from PC.
3. Connect VGA-Extender Local Unit HD-15 female output
connector with HD-15 male to male cable from monitor.
4. Connect the VGA-Extender Local and Remote Unit with
CAT.5 cable.
5. Connect VGA-Extender Remote Unit HD-15 female
connector with HD-15 male to male cable from monitor.
6. Connect the power cord each side.
7. Turn on the monitor and PC.
-2-
