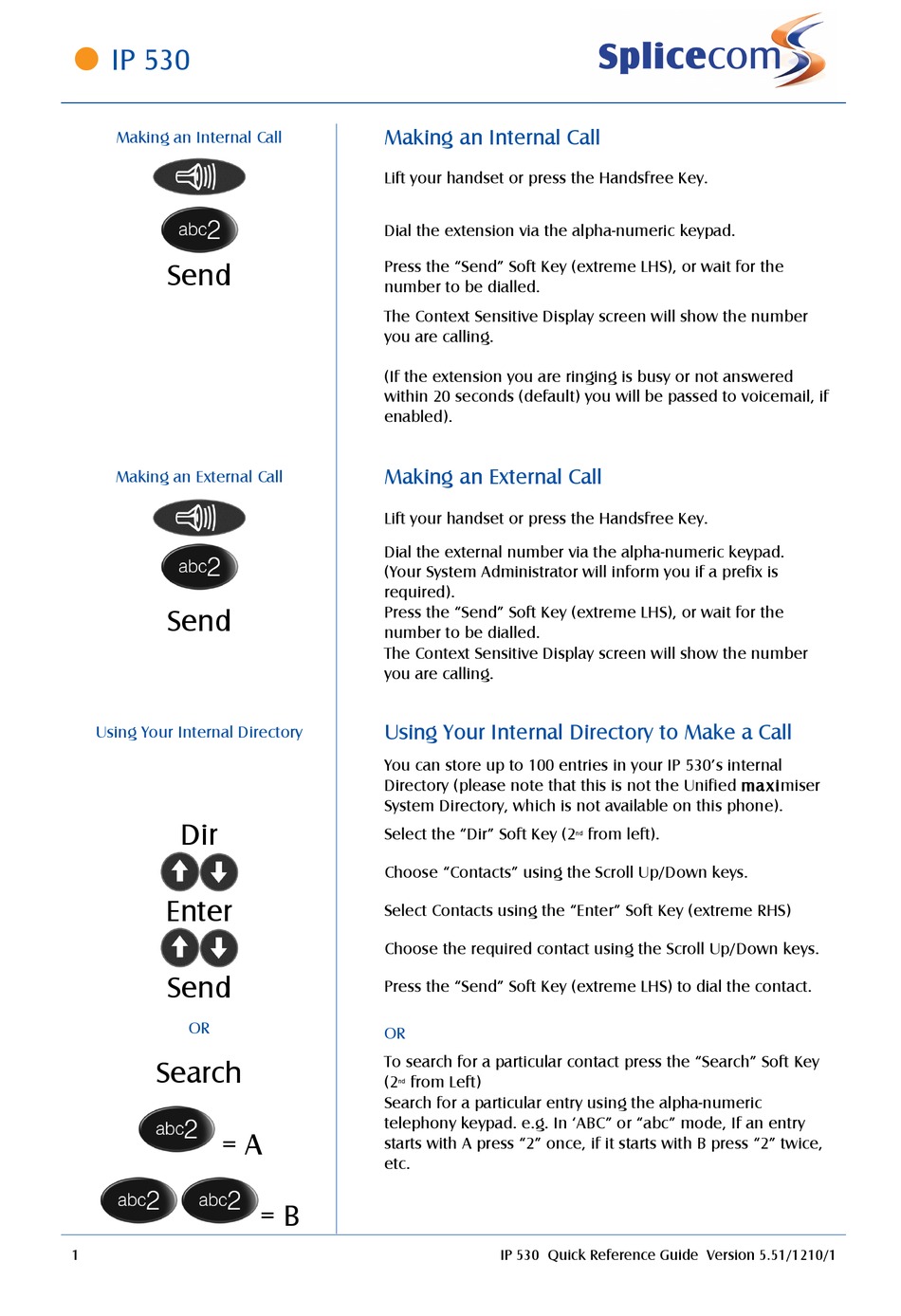

Making An Internal Call; Making An External Call - Splicecom IP 530 Quick Reference Manual


IP 530

Making an Internal Call

Send

Making an External Call

Send
Using Your Internal Directory
Dir
Enter
Send
OR
Search
= A
1
Making an Internal Call
Lift your handset or press the Handsfree Key.
Dial the extension via the alpha-numeric keypad.
Press the "Send" Soft Key (extreme LHS), or wait for the
number to be dialled.
The Context Sensitive Display screen will show the number
you are calling.
(If the extension you are ringing is busy or not answered
within 20 seconds (default) you will be passed to voicemail, if
enabled).
Making an External Call
Lift your handset or press the Handsfree Key.
Dial the external number via the alpha-numeric keypad.
(Your System Administrator will inform you if a prefix is
required).
Press the "Send" Soft Key (extreme LHS), or wait for the
number to be dialled.
The Context Sensitive Display screen will show the number
you are calling.
Using Your Internal Directory to Make a Call
You can store up to 100 entries in your IP 530's internal
Directory (please note that this is not the Unified ma ximiser
System Directory, which is not available on this phone).
Select the "Dir" Soft Key (2
Choose "Contacts" using the Scroll Up/Down keys.
Select Contacts using the "Enter" Soft Key (extreme RHS)
Choose the required contact using the Scroll Up/Down keys.
Press the "Send" Soft Key (extreme LHS) to dial the contact.
OR
To search for a particular contact press the "Search" Soft Key
(2 from Left)
nd
Search for a particular entry using the alpha-numeric
telephony keypad. e.g. In 'ABC" or "abc" mode, If an entry
starts with A press "2" once, if it starts with B press "2" twice,
etc.
= B
from left).
nd
IP 530 Quick Reference Guide Version 5.51/1210/1
