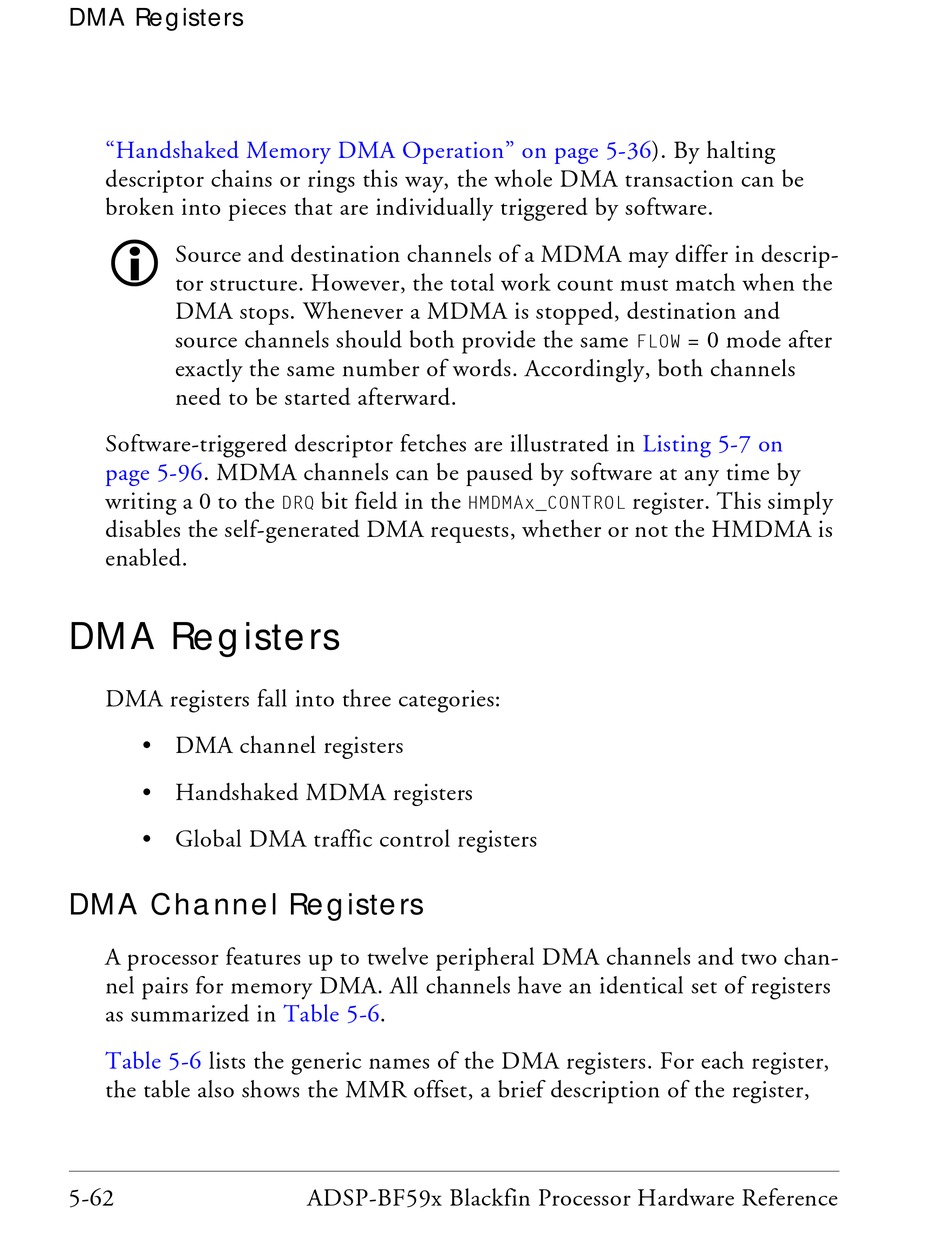

DMA Registers

"Handshaked Memory DMA Operation" on page
descriptor chains or rings this way, the whole DMA transaction can be
broken into pieces that are individually triggered by software.

Source and destination channels of a MDMA may differ in descrip-
tor structure. However, the total work count must match when the
DMA stops. Whenever a MDMA is stopped, destination and
source channels should both provide the same
exactly the same number of words. Accordingly, both channels
need to be started afterward.
Software-triggered descriptor fetches are illustrated in
page 5-96. MDMA channels can be paused by software at any time by
writing a 0 to the
disables the self-generated DMA requests, whether or not the HMDMA is
enabled.
DMA Registers
DMA registers fall into three categories:

• DMA channel registers

• Handshaked MDMA registers
• Global DMA traffic control registers
DMA Channel Registers
A processor features up to twelve peripheral DMA channels and two chan-
nel pairs for memory DMA. All channels have an identical set of registers
as summarized in
Table 5-6 lists the generic names of the DMA registers. For each register,
the table also shows the MMR offset, a brief description of the register,
5-62
bit field in the
DRQ
Table 5-6.
ADSP-BF59x Blackfin Processor Hardware Reference
5-36). By halting
FLOW
Listing 5-7 on
register. This simply
HMDMAx_CONTROL
= 0 mode after
