Summary of Contents for Heinner HWM-6120
- Page 1 Automatic washing-machine Model: HWM-6120 Instruction manual www.heinner.com 1/74...
-
Page 2: Table Of Contents
CHAPTER-8: FLUSH STOPPER / BODY / DRUM 64 CHAPTER-9: TROUBLESHOOTING 65-66-67-68-69 CHAPTER-10: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE 70 CHAPTER-11: PRACTICAL INFORMATION 71-72-73-74 • How to read the energy label and saving energy 75-76 • Disposal of your old machine 77 www.heinner.com 2/74... -
Page 3: Chapter-1: Before Using The Appliance
Children should be supervised to ensure that they do not play with the appliance. www.heinner.com 3/74... -
Page 4: Specifications
• It is recommended to perform the first washing operation in 90˚ Cotton programme and without laundry by inserting ½ scale of detergent in 2nd compartment of the detergent drawer. www.heinner.com 4/74... - Page 5 Keep the packaging materials in a place where children cannot reach or dispose of them appropriately. • Keep the small parts found in the document part away from the reach of children and babies. • Use pre-wash programs only for very dirty laundry. www.heinner.com 5/74...
- Page 6 • Never force the door to open when the machine is running. • Washing floury clothes in your machine damages the machine. Do not wash floury clothes in your machine. www.heinner.com 6/74...
-
Page 7: Safety Warnings
You must read these warnings. You can thus protect yourself and your beloved ones against fatal injuries and risks. DANGER OF GETTING BURNT! Do not touch discharging hose and water during discharging as the appliance may reach high temperatures when running. www.heinner.com 7/74... - Page 8 • Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution! • Never touch the machine with wet hands or feet. • Call the nearest authorized service for a replacement if the power cord malfunctions. www.heinner.com 8/74...
-
Page 9: Flooding Risk
• Take necessary measures to prevent the slipping of your hose. • The backfiring force of a hose that is not placed appropriately can displace the hose. Prevent the stopper inside your sink from blocking the sink hole. www.heinner.com 9/74... - Page 10 • Never use products that contain solvent material (like washing gas) in your machine. • Remove all the objects in the pockets of your laundries (needle, paperclip, lighter, matches etc.) when placing them your machine. Fire and Explosion risk may occur. www.heinner.com 10/74...
- Page 11 • There’s the risk of tripping and injury if the materials like hose and cables are not properly stored after your machine is installed. Machine must be carried by 2 people or more. www.heinner.com 11/74...
- Page 12 • Poisoning might occur if the detergent and maintenance materials are consumed, and eyes or the skin might be irritated if they come into contact with the skin. Keep the cleaning materials away from the reach of children. www.heinner.com 12/74...
- Page 13 • The amount of laundry you put in your washing machine should not exceed the maximum amount indicated. • By this way, your machine shall run in saving mode. • Not using the pre-wash feature for little and normal-dirty laundry shall save electricity and water. www.heinner.com 13/74...
-
Page 14: Chapter-2: Overview Of Your Device

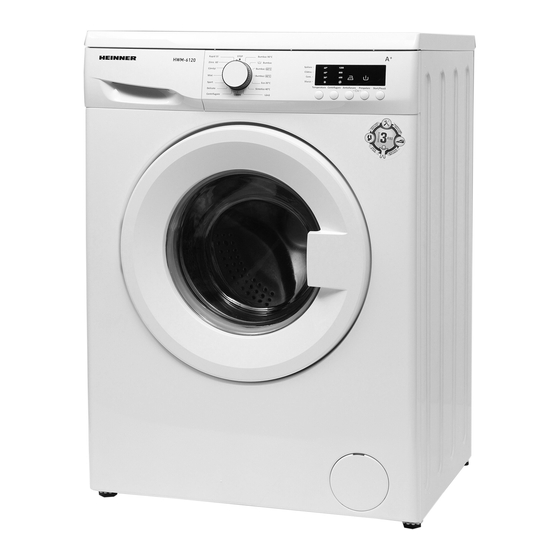

CHAPTER -2: OVERVIEW OF YOUR DEVICE GENERAL APPEARANCE Electronic display Programme knob Upper Tray Detergent drawer Container Cover of pump filter www.heinner.com 14/74... - Page 15 Transportation Safety Screw Water Inlet Valve Discharging Hose Power Cable Transportation Safety Screw Transportation Safety Screw Transportation Safety Screw www.heinner.com 15/74...
- Page 16 Water pressure Maximum: 1 Mpa Minimum : 0.1 Mpa Total power (W) 2200 Maximum dry laundry capacity (kg) Spinning revolution 1200 (rev / min) Programme number Dimensions 845 x 597 x 527 (Height x Width x Depth) (mm) www.heinner.com 16/74...
-
Page 17: Chapter-3: Installation
If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee). For this reason, transportation safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench. www.heinner.com 17/74... - Page 18 NOTE: You should absolutely remove the transportation screws of your machine before the first usage. Faults occurring in the machines operated with transportation screw fitted shall be out of scope of warranty. www.heinner.com 18/74...
-
Page 19: Adjusting Adjustable Stays
• To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground. • You can adjust the balance of your machine through the stays. • Loosen the plastic adjustment nut. www.heinner.com 19/74... - Page 20 • Adjust the stays upward and downward by rotating them. • After maintaining the balance, compress the plastic adjustment nut upward again. www.heinner.com 20/74...
- Page 21 • Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distortions on the ground. • When cleaning the ground, on which your machine rests, be careful not to disorder stays stabilization. www.heinner.com 21/74...
-
Page 22: Electrical Connection
• We do not take the responsibility of the damages that occur due to ungrounded usage. NOTE: Operating your machine under low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted. www.heinner.com 22/74... - Page 23 • Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efficiently.) (0,1 Mpa pressure means that more than 8 litres of water will flow through a fully-tapped faucet per one minute.) www.heinner.com 23/74...
-
Page 24: Water Inlet Hose Connection
70°C. Note: Use only the new water inlet hose coming with your machine while making Water inlet hose connection of your machine. Never use old, used or damaged water inlet hoses. www.heinner.com 24/74... -
Page 25: Water Discharge Connection
• Make sure that the water discharge hose does not bend, buckle, be crushed or extended. Please note: • The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground. www.heinner.com 25/74... -
Page 26: Chapter-4: Introduction Of Control Panel
CHAPTER-4: INTRODUCTION OF CONTROL PANEL www.heinner.com 26/74... -
Page 27: Detergent Drawer
(*) and set the detergent amount. (Use the recommended amount of liquid detergent by detergent producers). Do not exceed the MAX level, use only for liquid detergent, do not use this aparatus for powder detergent and take it out.) www.heinner.com 27/74... - Page 28 To prevent this situation, more viscous liquid softeners are recommended to be used or the softener could be thinned and then used. Pre-wash detergent compartment: This compartment must only be used When the pre-wash feature is selected. www.heinner.com 28/74...
-
Page 29: Programme Knob
• You can select the programme you want to wash your laundry in through programme knob. • You may set the programme selection operation by rotating the programme knob in both directions. • Ensure that the programme knob is exactly on the programme you want to select. www.heinner.com 29/74... -
Page 30: Electronic Display
“Finished” on the display as soon as the washing programme you have selected has finished as well. www.heinner.com 30/74... -
Page 31: Separating Laundries
• Remove the metallic or plastic hooks of tulle curtains or curtains or place them in a washing net or bag and then muzzle them. • Reverse textiles such as pants, knitwear, t-shirt and sweat suit. • Wash socks, handkerchief and suchlike small laundries in a washing net. www.heinner.com 31/74... - Page 32 32/74...
-
Page 33: Chapter-5: Preliminary Preparation For Laundering
You can take the following table of weights as an example: • Put each item of laundry separately. • Ensure that no laundry is stuck between the cover and bellow seal when closing the door of yourmachine. www.heinner.com 33/74... -
Page 34: Adding Detergent Into Machine
(*) into 2nd compartment of the detergent drawer and set the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate. (*)Machinery specifications may vary depending on the product purchased. www.heinner.com 34/74... -
Page 35: Operating Your Machine
• Open the machine door. • Spread your laundries in your machine. • Push the door of your machine until hearing the locking sound to close it. Selecting programme Select the convenient programme for your laundries on the programme table. www.heinner.com 35/74... -
Page 36: Auxiliary Functions
• Your machine has passed over the stage, during which the auxiliary function you would like to select would be implemented. • It is not compatible with an auxiliary function you have selected previously. www.heinner.com 36/74... - Page 37 When the temperature value is decreased to 60°, 40°, 30°, (cold washing) temperature levels by pressing the temperature adjustment button, the decreased temperature value is displayed on the display panel. www.heinner.com 37/74...
- Page 38 You can make additional rinse operation on your laundry by using this additional function. You may make the programme active by pressing the extra rinsing auxiliary function button when the led light of the symbol turns on. (*) Model Dependant www.heinner.com 38/74...
- Page 39 You may make the programme active by pressing the anti-allergic button on the display panel when the led light of the symbol turns on. www.heinner.com 39/74...
- Page 40 If your machine detects half load, the led of the symbol will automatically flash on display panel. (*) Model Dependant www.heinner.com 40/74...
- Page 41 You may make the programme active by pressing the easy ironing auxiliary function button when the led light of the symbol turns on. (*) Model Dependant www.heinner.com 41/74...
- Page 42 By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Standby led on the electronic display will blink. (*) Model Dependant www.heinner.com 42/74...
-
Page 43: Child Lock
To deactivate it, it will be sufficient to press on the same buttons for more than 3 seconds. When the child lock is deactivated, the Additional Function Leds will blink on the display. www.heinner.com 43/74... -
Page 44: Cancelling Programme
3- To get rid of the water accumulated in the machine switch the programme knob to any programme. 4- Your machine will perform the necessary discharge operation and cancel the programme. 5- You can run your machine by selecting a new programme. www.heinner.com 44/74... -
Page 45: Finishing Programme
- Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries. - Switch the programme knob to CANCEL position. - Unplug your machine. - Turn the water faucet off. www.heinner.com 45/74... -
Page 46: Chapter-6: Program Table
Detergent compartment 1&2 Programme duration (Min.) Dirty cotton and flax textiles. (Underwears, linen, tablecloth, Laundry type / Descriptions towel(maximum 3,5 kg), bedclothes, etc. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 46/74... -
Page 47: Cotton
Detergent compartment Programme duration (Min.) Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel Laundry type / Descriptions (maximum 3,5 kg), bedclothes, etc. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 47/74... -
Page 48: Eco 20
(kg) Detergent compartment Programme duration (Min.) Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, Laundry type / Descriptions syntheticincluding trousers etc.) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 48/74... -
Page 49: Wool
If you want to additionally rinse your laundries upon completion of washing operation, you may use this Laundry type / Descriptions programme for any kind of laundries. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 49/74... - Page 50 Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Laundry recommended for hand Laundry type / Descriptions wash or sensitive laundry. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 50/74...
-
Page 51: Sports Wear
Detergent compartment Programme duration (Min.) Dirty cotton, synthetics, colour and flax textiles can be washed Laundry type / Descriptions together. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 51/74... -
Page 52: Blouses/ Shirts 106 106 60
Programme duration (Min.) You can wash your dirty cotton, colour and flax textiles at 60°C in 60 Laundry type / Descriptions minutes.. NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO AMOUNT LAUNDRY, WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 52/74... - Page 53 (The duration of 2 minutes required to open the door of your machine is not included in the washing period.) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS. www.heinner.com 53/74...
-
Page 54: Program Details
Daily 60' 0,90 Rapid 15' 0,10 WIT: Water Inlet Temperature Temperature may vary depending on the heating time Durations may vary according to wash load (weight and type), tap water, ambient temperature and selected extra functions. www.heinner.com 54/74... - Page 55 Program Minutes/program Minutes/program Full load Half load Cotton 90 Cotton 60 Cotton Eco Cotton 40 Eco 20 Easy Care Wool Rinse Spin Hand Wash Sports Wear Mix Wash Blouses/ shirts Daily 60’ Fast 30’ Rapid 15’ www.heinner.com 55/74...
-
Page 56: Chapter-7: Maintenance And Cleaning Of Your Machine Warnıng
Turn the tap water off before starting the maintenance cand cleaning of your machine. CAUTION: Your machine’s parts might be damaged if cleaners with solvent agents are used. Do not use cleaning materials with solvent agents. www.heinner.com 56/74... -
Page 57: Water Inlet Filters
Filters of water inlet valves may be clogged due to contaminated water faucet or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously. The breakdowns that may arise due to these reasons are out of the scope of warranty. www.heinner.com 57/74... -
Page 58: Pump Filter
• Loosen the filter cover in counter-clockwise and then empty water. Note: You may have to empty the water collection vessel several times according to the amount of water in the machine. (*) Machinery specifications may vary depending on the product purchased. www.heinner.com 58/74... - Page 59 • You can reattach the pump cover in the reverse order that you removed it. WARNING! As water in the pump may be hot, wait until it cools down. www.heinner.com 59/74...
-
Page 60: Detergent Drawer
Take out the liquid detergent level apparatus for cleaning and maintenance purposes as shown in the picture and clean well detergent residues. Put the apparatus back into its place. Make sure no residues are left inside. (*) Machinery specifications may vary depending on the product purchased. www.heinner.com 60/74... -
Page 61: Chapter-8: Flush Stopper / Body / Drum
This objects lead to formation of rust stains in the drum. To clean such rust stains, use a nonchlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains. www.heinner.com 61/74... -
Page 62: Chapter-9: Troubleshooting
(*) does Valve inlet filter Clean the valve not intake clogged. inlet filters. (*) water. The machine door Close the machine is not completely door. closed. (*) See the chapter regarding maintenance and cleaning of your machine. www.heinner.com 62/74... - Page 63 Your machine Prevent your machine rests on a hard from resting surface. on hard surfaces. (*) See the chapter regarding maintenance and cleaning of your machine. (**) See the chapter regarding installation of your machine. www.heinner.com 63/74...
- Page 64 Amount of detergent amount and contamination Unsatisfactory used insufficient. degree of your washing result. laundries. Laundries in excess Load your machine with of maximum laundries, amount of capacity put in your which will not exceed machine. maximum laundry capacity. www.heinner.com 64/74...
- Page 65 Apply the maximum Grey spots The reason for such amount of detergent appear spots may be oil, instructed by the detergent on the laundries. cream or ointment. manufacturer in the next washing operation. www.heinner.com 65/74...
- Page 66 Wringling operation is not No fault. Unbalanced operation will begin after performed or load control system your laundry is spread. runs has been activated. Place the laundry in the late. machine in a balanced fashion the next time. www.heinner.com 66/74...
-
Page 67: Chapter-10: Automatic Fault Warnings And What To Be Done
Pursuant to has excessive discharging operation, turn off your amount of machine and unplug it. Turn off water. your faucet and contact the nearest authorised service. (*) See the chapter regarding maintenance and cleaning of your machine. www.heinner.com 67/74... -
Page 68: Chapter-11: Practical Information
After submerging your laundries in cold water and rubbing it using soap or detergent, wash it in temperature that fabric type of your laundry can resist. In case the oil stain is still visible, wipe with oxygen water (3%). www.heinner.com 68/74... - Page 69 Mustard: Apply glycerine on spotted area. Scrub with detergent and wash. If the spot cannot be removed, wipe with alcohol. (For synthetic and colour fabrics, a mixture of 1 scale of alcohol and 2 scales of water should be used) www.heinner.com 69/74...
- Page 70 For wool fabric, a cloth previously submerged in oxygen water should be covered over the stain and it should be ironed after putting a dry cloth on this cloth. It should be washed after being rinsed properly. www.heinner.com 70/74...
- Page 71 (3%). Ink: Subject the spotted area to running water and wait until the flow of inked water ends. Then wipe it with lemon- added water and detergent, and wash it after allowing 5 minutes. www.heinner.com 71/74...
- Page 72 DESCRIBING ENERGY LABEL AND SAVING ENERGY www.heinner.com 72/74...
-
Page 73: Disposal Of Your Old Machine
Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product. www.heinner.com 73/74... - Page 74 HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.
