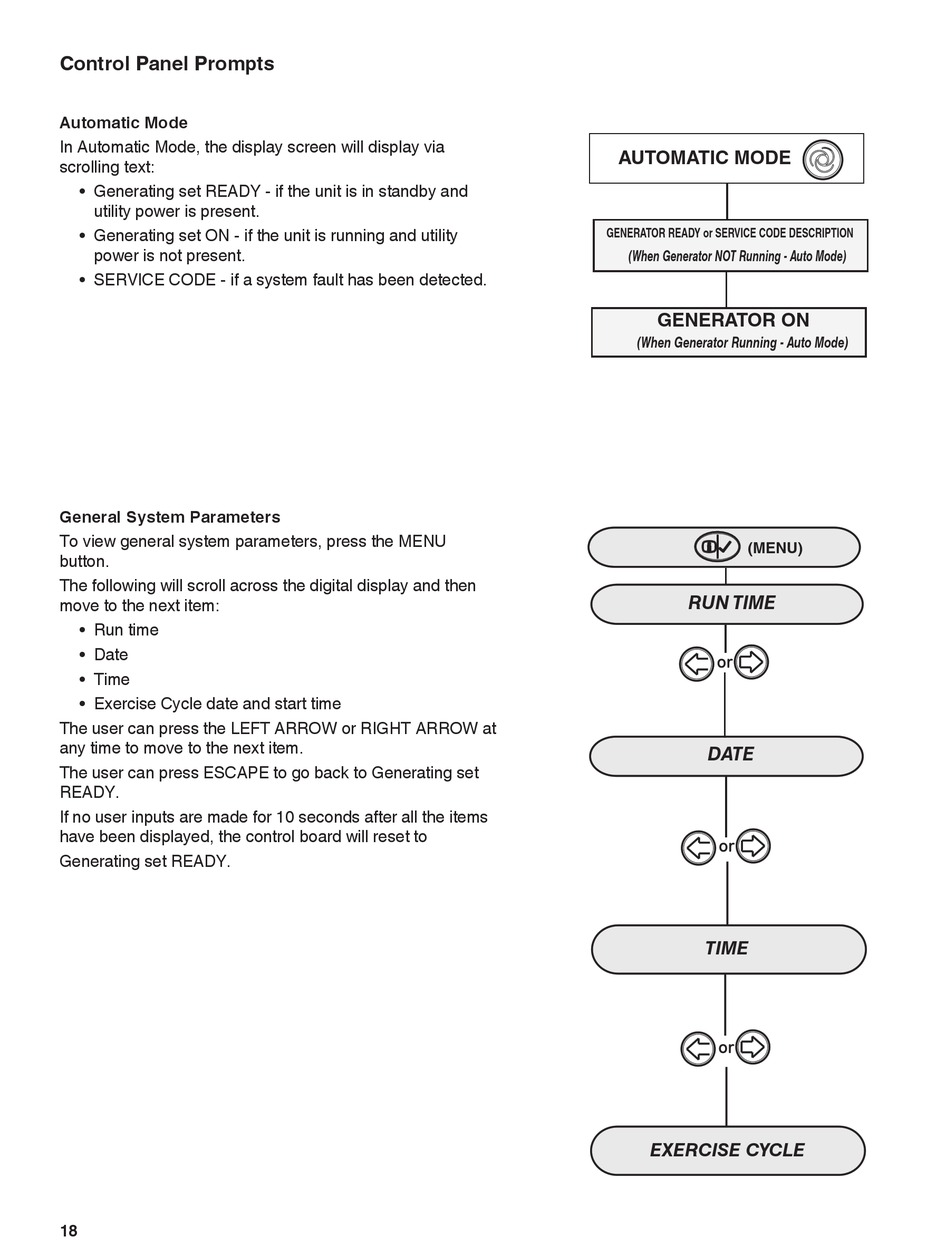

Control Panel Prompts

Automatic Mode
In Automatic Mode, the display screen will display via
scrolling text:
• Generating set READY - if the unit is in standby and
utility power is present.
• Generating set ON - if the unit is running and utility
power is not present.
• SERVICE CODE - if a system fault has been detected.
General System Parameters
To view general system parameters, press the MENU
button.
The following will scroll across the digital display and then
move to the next item:
• Run time
• Date
• Time
• Exercise Cycle date and start time
The user can press the LEFT ARROW or RIGHT ARROW at
any time to move to the next item.
The user can press ESCAPE to go back to Generating set
READY.
If no user inputs are made for 10 seconds after all the items
have been displayed, the control board will reset to
Generating set READY.
18
AUTOMATIC MODE
GENERATOR READY or SERVICE CODE DESCRIPTION
(When Generator NOT Running - Auto Mode)
AUTOMATIC MODE
GENERATOR ON
(When Generator Running - Auto Mode)
GENERATOR READY or SERVICE CODE DESCRIPTION
(MENU)
(When Generator NOT Running - Auto Mode)
RUN TIME
GENERATOR ON
(When Generator Running - Auto Mode)
or
(MENU)
RUN TIME
DATE
or
or
DATE
TIME
or
or
TIME
EXERCISE CYCLE
or
EXERCISE CYCLE
