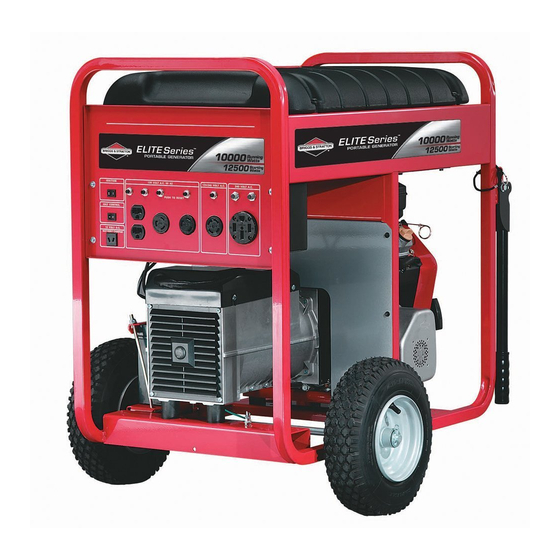

Briggs & Stratton ELITE SERIES 9801 Illustrated Parts List

10000w elite series
Hide thumbs

Advertisement

Table of Contents

Illustrated Parts List

09801
(10000W)
Questions? Help is just a moment away!
Call: Generator Helpline - 1-800-743-4115 M-F 8-5 CT
web: www.briggsandstratton.com
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
Manual No. 191423A
JEFFERSON,WISCONSIN, U.S.A.
Revision 2 (03/10/2006)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE SERIES 9801 and is the answer not in the manual?

Questions and answers

Related Manuals for Briggs & Stratton ELITE SERIES 9801

Summary of Contents for Briggs & Stratton ELITE SERIES 9801

  • Page 1: Illustrated Parts List

    Illustrated Parts List 09801 (10000W) Questions? Help is just a moment away! Call: Generator Helpline - 1-800-743-4115 M-F 8-5 CT web: www.briggsandstratton.com BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC Manual No. 191423A JEFFERSON,WISCONSIN, U.S.A. Revision 2 (03/10/2006)

  • Page 2: Exploded View – Main Unit

    10000W Generator EXPLODED VIEW – MAIN UNIT Copyright © 2006 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power Products Group, LLC.
  • Page 3 PARTS LIST – MAIN UNIT Item Part # Description M189487GS CRADLE M77304GS SUPPORT, Engine ASSY, Alternator (see page 6) 75246GS SELF TAPPING, 3/8"-16 x 1-1/4" Lg. 22511GS CAPSCREW, 3/8 x 1-1/4" 96832GS CLAMP, Hose 10 55934GGS CLAMP, Hose 11 * WASHER, M8 - Lock 12 * HHCS, M8 - 1.25 x 20 Lg.
  • Page 4 EXPLODED VIEW AND PARTS LIST – CONTROL PANEL Item Part # Description AB4432GS PANEL, Control B95906GS BOX, Control 43437GS OUTLET, 120/240V, 30A Locking 68759GS OUTLET, 120V, 20A Duplex 68868GS OUTLET, 120V, 30A Locking B5112GS ASSY, Diode 186102GS ASSY, Engine Harness 90576GS GROMMET, Rubber B4262GS...
  • Page 5 EXPLODED VIEW AND PARTS LIST – WHEEL KIT Item Part # B193200GS 189718GS 194034GS B4135GS B93394GS 191413GS 10 192432GS 11 * 12 * 13 * 14 191267BGS 15 89635GS 16 89742GS 17 * 18 191265GS * - Items without part numbers are common fasteners and can be found at your local hardware store.
  • Page 6 EXPLODED VIEW AND PARTS LIST – ALTERNATOR 10000W Generator Item Part # Description B4906GS SHIELD, Front B4907GS GRID, Front B4908GS BOLT, Shaft Stay B4909GS BOLT, Stay B4910GS ASSY, Housing 187049GS PLUG, Domed B4912GS COVER, Blind End B4913GS COVER,Top Black B4914GS CAPACITOR 11 B4916GS CAPACITOR, Diode + Varistor + EMC...
