Page 1: Instruction Manual
Instruction Manual www.imaxrc.com... -
Page 2: Product Introduction

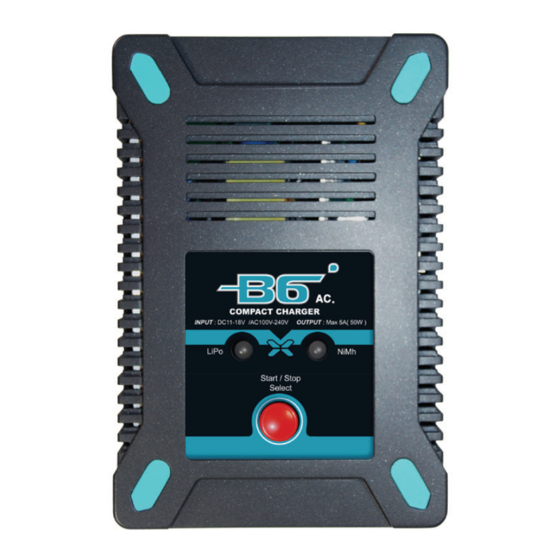

Product Introduction The B6 AC compact charges 2S to 6S Lipo and 1 to15 cell NiMH battery packs with just the press of a button.Everything is automatic,so there’s no complicated guesswork.You get a safe, high-quality charge every time.Tt’s the easiest charger you’ll... - Page 3 OVERVIEW AND CONTENTS Use the photos below to familiarize yourself with the various connections and controls of the iMaxrc. AC Input Power Port DC Input Power Port Start/Stop/Select Button LiPo Status LED NiMH Status LED XH Balance Ports Output Power Ports...
- Page 4 Use the information in this section to connect the B6 AC and your battery.Failure to make the connections correctly can result in damage to the charger and/or your battery. Connect the charger to its power source, using either the AC power cord or the DC power cord provided.When connected...
-
Page 5: Charging Your Battery
In addition,if your LiPo battery does not feature an XH balance connector,an adaptor board can be used.For more information,re- fer to the notice on previous page. Charging your battery The charge rate of 1.5C is vatiable and is automatically deter- mined by the charger. -
Page 6: Fault Description
If charging a LiPo battery,the LiPo status LED will turn orange when the battery is charged to 90% capacity,then will turn green when charged to full capacity as described above. The charging process can be stopped at any time by pressing the Start/Stop/Select button. - Page 7 The charger’s input voltage is too high(greater than 18V ).Disconnect the charger and reconnect to a power source within the recommended specification (DC 11 to 18V). Fault description LiPo or NiMH Status LED Flashes Red with Audible Chime ·A cell (or cells )in the battery pack is bad or an individual cell’s voltage is too high or too low.If after checking the cells they are determined to be okay,unplug the charger from its power source,then plug it back in and try starting the charging process...
- Page 8 Chargers accessories Charger AC Input cable Manual Output cable DC Input cable Obetaining warranty service Before returning your product for warranty consideration,the status of the unit must be within the terms of the Warranty Infor- mation section on the previous page.When requesting warranty service,please observe the following: ·Include a note detailing the problem or service you are request- ing.Include your daytime phone number,shipping address and...
- Page 9 damage,then send the package to the address below.We recom- mend using United Parcel Service,Federal Express or Insured Mail.Postage is nonrefundable. ·If you have any questions or concerns about the warranty status of your product or you need more information about the prodedure for returning your product, please contact us first.
- Page 10 Security Code Query Please go and visit the website: http://www.imaxrc.com/info/index.aspx iMaxRC CO.,LTD • Add: F4 201-205, F518 IDEALAND Baoyuan Road, Baoan, Shenzhen, P.R.C • Tel: +86-755-89830228 • Fax: +86-755-29558361 • Web: www.imaxrc.com...
- Page 11 All specifications and figures are subject to change without notice. Printed in China © 2012...
