Page 1: Instruction Manual
Instruction Manual www.imaxrc.com... -
Page 3: Specifications

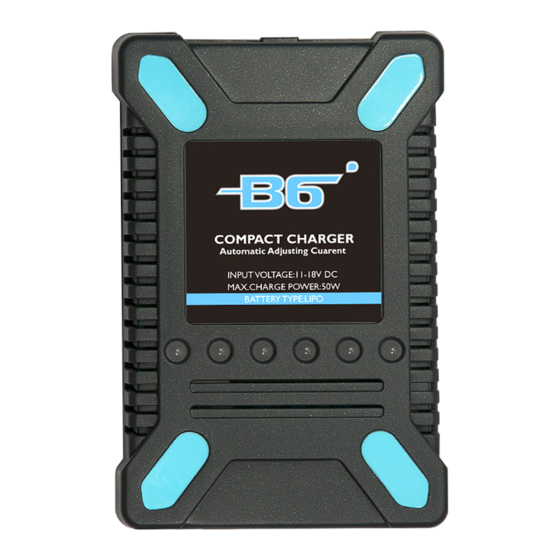

Product Introduction Thank you for purchasing iMaxRC B6 Compact Easy balance charger. This charger is compact and light, which can only charge 2s,3s,4s,5s,and 6s Lipo battery pack, especially there port sepa- rated corresponding balance port for each battery pack. Before using it, please read the user manual carefully. - Page 4 lights are green color show that the charger boot normally, waiting for the battery inserted. After the rechargeable battery inserted correctly, the corre- sponding light become red color and start charging. After charging period of time, if all lights change to orange color, it shows the battery capacity has reached to 90% above, when if all lights change to green color, it explains that the battery has already full.
- Page 5 When the battery and charger are connected as above, the charger will get into the charging program automatically, the charging current is automatically set by charger. Please Note: if the battery and charger are connected incorrectly, Insert wrong (against the right direction), the charger will not begin to charger and send an alert (buzzer rings, light flashes).
- Page 6 2. High accuracy, when the battery is fully charged, the voltage of each cell is: LiPo(4.20±0.01V ). 3. Easy to use and operate. 4. The charging state of each cell is clearly showing. Fault description 1.. If the indicator light is red and blinks, please check if the balance port is connected completely, and check if the functions of cell which correspond to this indicator is good.
- Page 7 Connecting with adapter The minimum power of the adapter requires more than 50 W and the voltage should be between DC11 ~ 18V. iMaxRC Recommended adapter: iMaxRC 12V 5A power adapter (for imaxrc B6 series adapters) Chargers accessories Output cable...
- Page 8 8. If the battery has suspicious reactions during the charge or discharge, such as overheating, venting or leaking , immediately disconnect the battery and store it in a safe location, away from people and inflammable materials. 9. If any unusual happened to the charger being powered , stop charging and check the manual immediately.
