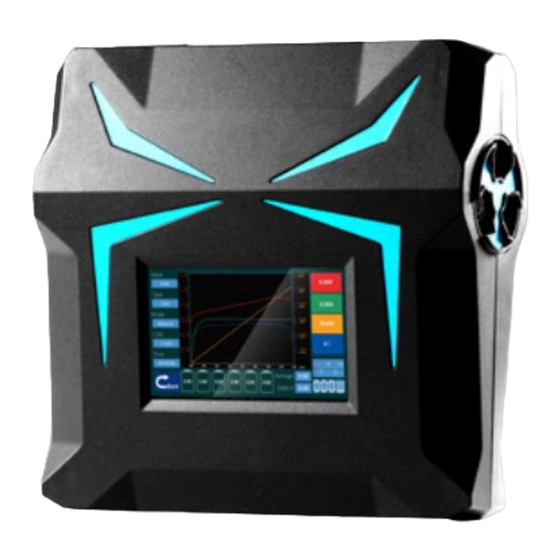

ImaxRC x100 User Manual

Ac/dc
Hide thumbs

Advertisement

Quick Links

Download this manual
X100
AC/DC
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the x100 and is the answer not in the manual?

Questions and answers

Related Manuals for ImaxRC x100

Summary of Contents for ImaxRC x100

  • Page 1 X100 AC/DC Manual...
  • Page 3 3.0 inch display screen 3.0 inch TFT display screen, WQVGA(400*240),65 thousand resolution iM · OS V2.15 A whole new OS system for X100 professional charger with high efficiency USB Port Output 5V 2.1V USB port specially design for iPhone and smartphone charging.
  • Page 4 · OS System www.imaxrc.com/X100.html Type Current Cells Mode X100 support Input / Output LiXX 1-6S Fast Charge more than 6 Current NiXX 1-16S Balance charge type batteries Charge Pb 1-10S Charge LiPo / Lilon / 0.1-8A Discharge LiFe / NiMh /...
  • Page 5 · OS System www.imaxrc.com/X100.html LiPo Lipo Battery,Single Nominal Voltage: 3.7V,Charge cut- off voltage 4.2V,Discharge cut-off voltage 3.0V LiIon LiIon Battery,Single Nominal Voltage: 3.6V,Charge cut-off voltage 4.1V,Discharge cut-off voltage 2.5V LiFe LiFe Battery,Single Nominal Voltage: 3.3V,Charge cut- off voltage 3.6ischarge cut-off voltage 20.V NiMH NiMH Battery,Single Nominal Voltage: 1.2V,Charge...
  • Page 6 Balance Lipo balance charge use CC-CV charging way. The charger will balance the battery voltage when charging, this only for LiPo battery. Please connecting the balance port when charging and discharging. Support 2-6 cells. Charge Use CC-CV charging way. On the basis of Users setting current the charger will charge the battery to the cut-off voltage.

  • Page 7: Manual Charge

    Charge mode. Cycle This function only for NiMH battery. On the basis of Users setting current for MiNH battery cycle charging and discharging.The Cycle times is 1-6. X100 Fundamental Function www.imaxrc.com/X100.html Output Power Ports JST-XH Balance Ports PC Link Port...
  • Page 8 5. iMaxRC will not be responsible for any personal injuries and fire disaster caused by incorrect operation. I have read this agreement carefully and give up all legal.
  • Page 9 Connecting X100 Please follow the below steps connecting: Please connect the AC power cord with X100 charger, and then plug adapter of power cord into socket. Connect battery correctly with X100. If LiPo battery, pls also connect balance adapter of battery with balance port of X100.
  • Page 10 Sarting X100 startup X100 to enter the main interface ( Image 1 ). V2.15 Image 1 Showing“Warning and Disclaimer” 2 seconds and will know the copyright and security information ( Image 2 ). It will be enter into the contacting interface if you can not agree with the disclaimer, and then you could contact the distributor return the charger ( Image 3 ) 5、...
  • Page 11 Image 3 【NOTE】 Please read Disclaimer before doing anything. Enter into main interface after accepting( Image 4 ). Start to charge and discharge according to the different battery. Action Bar Information Bar Image 4 【NOTE】 Information bar can not get touched.
  • Page 12 Example 1:Choose a set of LiPo battery charging,please follow the below steps: Step 1: Touch Type( Image 5 ) Enter into the “Type interface”, and then Touch :LiPo ( Image 6 ) will Enter into main interface go on the next step.
  • Page 13 Step 2: Touch ‘Mode’ icon( Image 7 ) to enter into Mode interface. Please choose battery charge mode ( Image 8 ) and go back to main interface to continue setting. Image 7 Image 8 【Note】 There are six charge/discharge modes in Mode interface( Image 8 ), see iM.OS System function for further details.
  • Page 14 Step 3: Touch Cells icon ( Image 9 ) to enter into Cells interface. Please set battery packs by sliding ( Image 10 ). Touch OK to go back to main interface and continue setting. Image 9 Image 10 【Note】Please set according to suitable battery packs.
  • Page 15 Step 4: Touch Current icon ( Image 11 ) to enter into Current inter- face. Please set charge current by sliding ( Image 12 ). Touch OK to go back to main interface and continue setting. Image 11 Image 12 【NOTE】...
  • Page 16 Step 5: If you often use the same battery, please touch Save icon ( Image 13 ) to enter into Save interface. Touch Unused icon to save the data and it will be easy for you to charge next time. ( Image 14 ) Image 13 Image 14 【NOTE】You could use this function after you have set Type/...
  • Page 17 Step 6: You could load your previous data according to X100’s load function. Touch Load icon ( Image 15 ) to enter into Load inter- face. Choose the data you want to load ( Image 16 ). Image 15 Image 16...
  • Page 18 Step 7: Touch Start icon ( Image 17 ) to enter into Start interface. The system will check battery status automatically. If everything is OK, the charger will begin to charge.( Image 18 ) Image 17 Image 18...
  • Page 19 【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to finish charging process ( Image 19 ). Image 19 【NOTE】 The charger will send out an alert and pop-up window if the battery packs’ setting is incorrect (Image 20). Image 20...
  • Page 20 Example 2: If you want to charge a pack of NiMh battery, please execute the operation as follows: Step 1: Touch Type icon ( Image 21 ) to enter into Type interface. Touch NiMh icon to go back to main interface and continue setting ( Image 22 ).
  • Page 21 Step 2: Touch Mode icon ( Image 23 ) to enter into Mode interface. Touch Charge icon ( Image 24 ) to go back to main interface and continue setting. Image 23 Image 24 【NOTE】 There are four charge/discharge modes in Mode in- terface( Image 24 ), see iM.OS System function for further details.
  • Page 22 Step 3: Touch Cells icon to enter into Cells interface. Please set NiMh battery packs by sliding ( Image 25). Touch OK to go back to main interface and continue setting ( Image 26). Image 25 Image 26 【NOTE】The battery cannot be charged if each pack of the battery voltage is less than 0.7V, please use the less battery packs to activate charging process.
  • Page 23 Step 4: Touch Current icon ( Image 27 ) to enter into Current interface. Please set charge current by sliding ( Image 28 ). Touch OK to go back to main interface and continue setting. Image 27 Image 28 【NOTE】Please set charge current in charge mode and dis- charge current in discharge mode.
  • Page 24 Step 5: Touch Start icon ( Image 29 ) to enter into Start interface. The charger will check battery status automatically. If everything is OK, the charger will begin to charge ( Image 30 ). Image 29 Image 30...
  • Page 25 【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to finish charging process ( Image 31 ). Image 31 【NOTE】The charger will send out an alert and pop-up window if the battery packs’ setting is incorrect. ( Image 32 ) All Lipo battery packs setting are the same operation.
  • Page 26 Example 3: If you want to charge a pack of Pb battery, please execute the operation as follows, Step 1: Touch Type icon ( Image 33 ) to enter into Type interface. Touch Pb icon ( Image 34) to go back to main interface and continue setting.
  • Page 27 Step 2: Touch Mode icon ( Image 34 ) to enter into Mode inter- face. Touch Charge icon ( Image 35 ) to go back to main interface and continue setting. Image 34 Image 35 【NOTE】 There are some options in Mode interface ( Image 35 ).
  • Page 28 Step 3: Touch Cells icon ( Image 36 ) to enter into Cells inter- face. Please set Pb battery packs by sliding ( Image 37 ). Touch OK to go back to main interface and continue setting. Image 36 Image 37 【NOTE】Pleasr set according to suitable battery packs.
  • Page 29 Step 4: Touch Current icon ( Image 38 ) to enter into Current in- terface. Please set charge current by sliding ( Image 39 ). Touch OK to go back to main interface and continue setting. Image 38 Image 39 【NOTE】Set charge current in charge mode and discharge current in discharge mode.
  • Page 30 Step 5: Touch Start icon ( Image 40 ) to enter into Start interface. The charger will check battery status automatically. If everything is OK, the charger will begin to charge. ( Image 41 ) Image 40 Image 41...
  • Page 31 【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to finish charging process ( Image 42 ). Image 42 【NOTE】The charger will send out an alert and pop-up window if the battery packs’ setting is incorrect. ( Image 43 ) All Lipo battery packs setting are the same operation.
  • Page 32 SYSTEM ADVANCED APPLICATION iM·OS SYSTEM is brand-new software of charger which was Independently research and develop by iMaxRC. It is the first operation system in the world especially to support touch screen charger,and it’s going to be Industry standard for touch screen charger series.
  • Page 33 Touch “Cut off Low Input”( Image 46 ), the information bar on left will skip into setting menu( Image 47 ), touch “OK” after setting done, it will turn back to interface ( Image 47 ), then you can go on with setting of other features.
  • Page 34 Cut off Low Input Cut off Range of setting:10-24V. Lowest cut off input voltage, Input charger will stop charging/discharging when input voltage is lower than setting value. Cut off Temperature Cut off tempe- Range of setting: 40-80°C. Cut off Temperature, char- raturey ger will stop charging/discharging when temp of batteries is lower than setting value.

  • Page 35: Cycle Time

    2. when charging power reach 100W, fan speed will be one level up as charging power rise by each 5W. 3. Fan speed will be one level up as discharging power rise by each 2W. NOTE: Fan Speed of X100 charger will begin to change in any of above situation.

  • Page 36: Safety Precautions And Warnings

    Please follow the instruction to operate your X100 charger, to insure safety of you and charger, and use it easily. Please keep manual within easy reach, to be easy reference for you and other user. 【NOTE】 Procedures, which if not properly followed, can result in potential nullification of any vendor warranties or liabilities.
  • Page 37 (for unfiltered tap water) working on. In rare cases, these smoke or particles in air may float into X100 charger from air-vent. This may lead inner surface of screen appear mist. Do not Maintain Yourself X100 charger not include any spare part for user to make the maintenance , never dismantle the product by yourselves.
  • Page 39 All specifications and figures are subject to change without notice. Printed in China © 2013...
