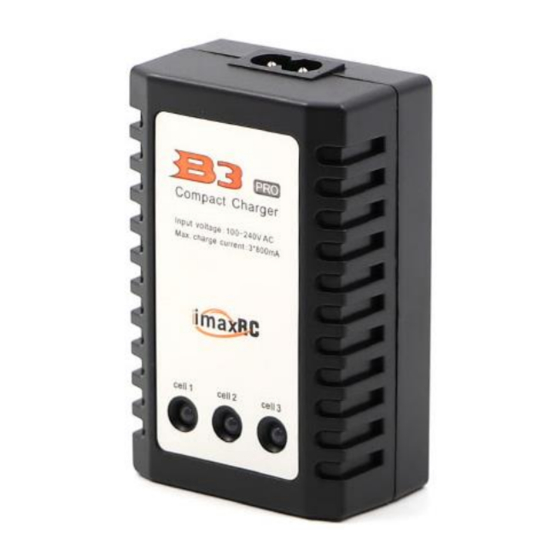

B3 Compact Charger

Description:

This Charger is compact and light, which can charge 2s or 3s of battery pack, especially there is
separated corresponding balance port for each battery pack.

Specifications:

- Input Voltage: 100V-240V AC
- Maximum Charge Current: 3*800mA
- Display: 3x Bicolor LED
- Case: Plastic
- Only Charge for 2~3 series LiPo battery
- Size: 9.2x5.9x3.5cm
- Weight: 100g

Operation:

1. Please firstly connect the B3 Compact Charger to power, while the three power LEDs will turn into
green, which indicating that the charger is ready to work.
2. Secondly, please connect the battery pack to the charger balance port, while the three power
LEDs will all turn into red and charging process begins.
3. When the three power LEDs all turn green, the charging process is finished.
