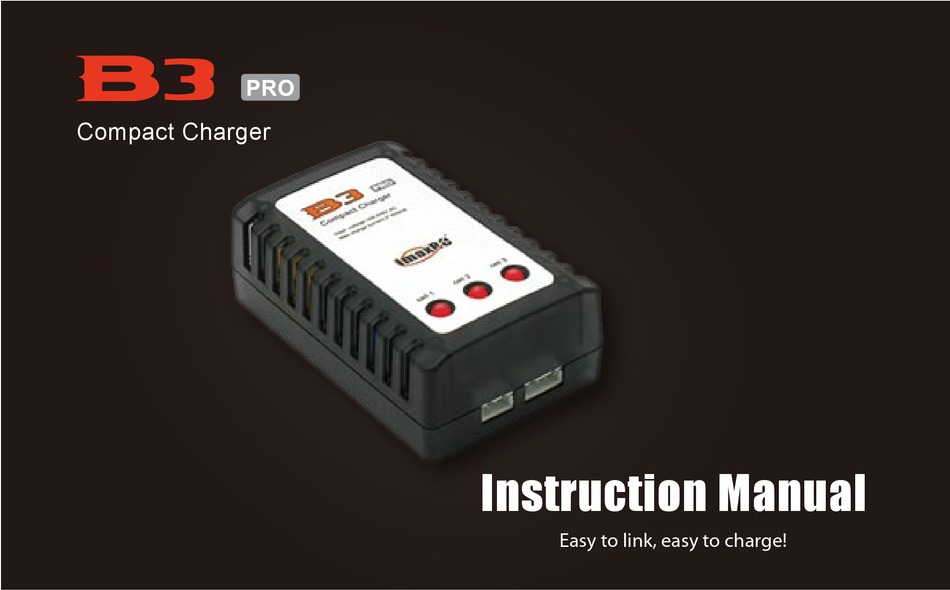

Page 1   Instruction Manual Easy to link, easy to charge!
Page 2: Product Introduction
Product Introduction Thank you for purchasing imaxRC B3 Pro Easy balance charger. This charger is compact and light, which can charge 2s or 3s of battery pack, especially there is separated corresponding balance port for each battery pack. Before using it, please read the user manual carefully.
Page 3: Specification
100 mm * 60mm * 35mm Weight: 180 g Instructions 1. Please firstly connect the B3 Pro charger to power, while the three power LEDs will turn from red to green, which indicating that the charger works in good order.
Page 4 2. (Set 3s battery pack for example) Secondly, please connect the battery pack to 3s balance port , while the three power LEDs will all turn into red and charging begins. Please note once the charging of one cell is done, the corresponding power LED for it will turn green.
Page 5: Packing List
WARNING Please correctly connect the B3 Pro charger to power and battery pack according to the procedure outlined in user manual. Please use this charger under supervision. Please place the charger in a dry environment and keep it away from fire.
