Connection Diagram - Pcm-875/Pt-20Am With Arc Starter - ESAB PCM-875 Instruction Manual

SECTION 2
"A"
"B"
"C"
"D"
ADAPTOR - 999278
"A"
"B"
"C"
"D"
25mm min.
Arc Starter
37338
25mm min.
PT-20AM
TORCH
*Insulate splice connec-
tors with vinyl tubing
and secure with electrical
tape.

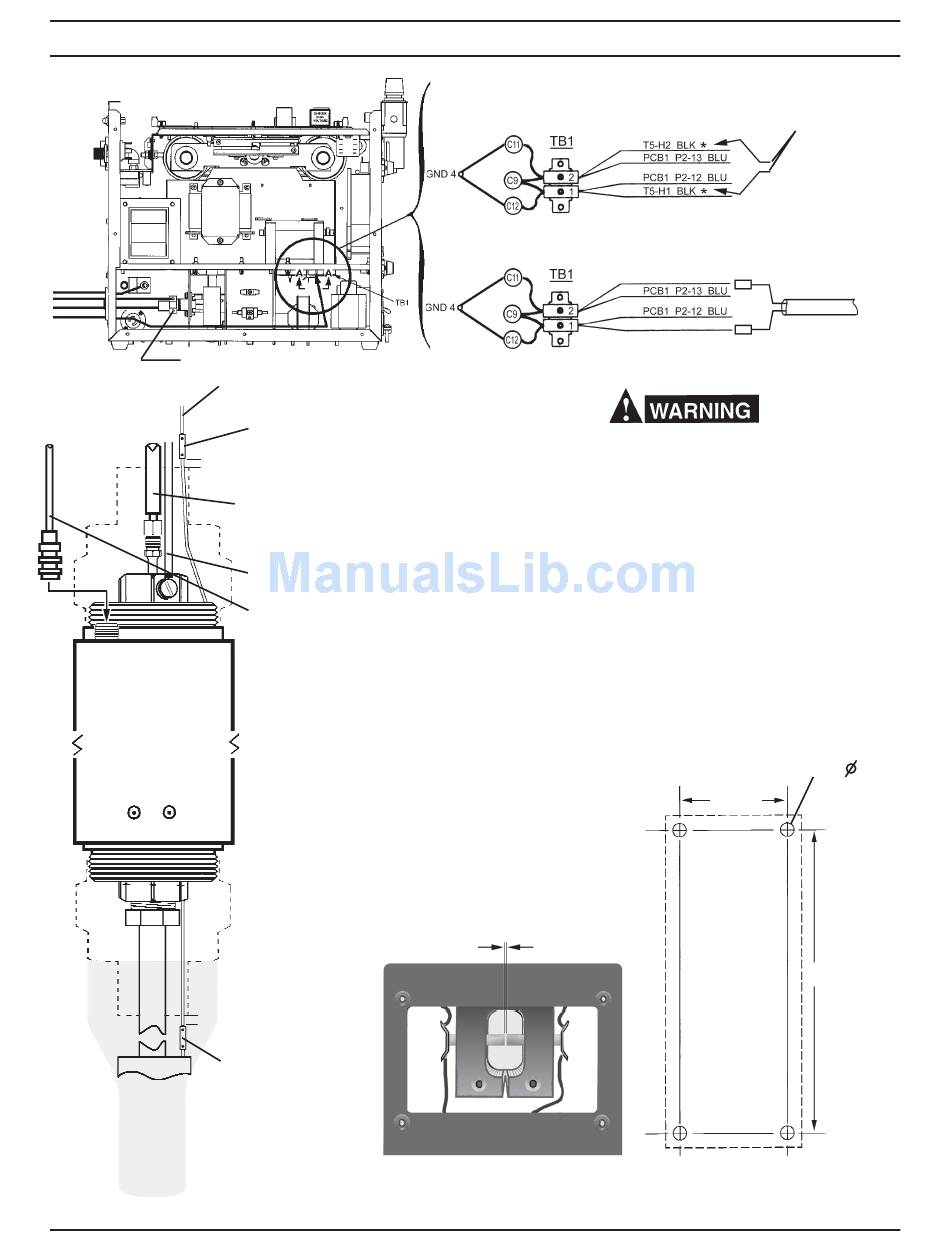

Figure 2.4 Connection Diagram - PCM-875/PT-20AM with Arc Starter
PILOT ARC CABLE - 37339 (50')
37340 (100')
SPLICE CONNECTOR*
(Supplied with 37338)
AIR HOSE - 37343 (50')
37344 (100')
POWER CABLE - 37341 (50')
37342 (100')
ARC STARTER CABLE - 37410 (50')
SPLICE CONNECTOR*
(Supplied with 37338)
Connect Arc Start Cable As Shown. (See step 5 below).
Make sure all power is off before making following
connections.
1. Remove cover from PCM-875.
2. Insert the 4 service lines from Arc Starter through the
torch opening of front panel.
3. Connect large hole terminal end of Pilot Arc Cable
("A") to connection where shown. Tighten screw
firmly.
4. Connect adaptor 999278 to fitting where shown.
Connect Air Hose ("C") to adaptor. Connect power
cable ("B") to one of the threaded holes of adaptor.
Tighten all connections firmly.
37411 (100')
5. Locate TB1 Terminal Block. Referring to view D-D
above, disconnect the two black wires from TB1.
Connect the black lead of Arc Starter Cable ("D") to
TB1-1 and the white lead to TB1-2.
6. Reassemble cover. Proceed to connect the 4 ser-
vice lines to the Arc Starter. Then connect PT-20AM
torch to Arc Starter.
.035" (0.9mm)
SPARK GAP ASSEMBLY
(Torch end of Arc Starter)
15
INSTALLATION
View A-A
Disconnect These
Two Black Leads
WHT Arc Start
BLK Arc Start
(4) .250" (6 mm)
2.125"
(54mm)
MOUNTING DIMENSIONS
Arc Starter
Cable (Ref.)
7"
(178mm)
