GB

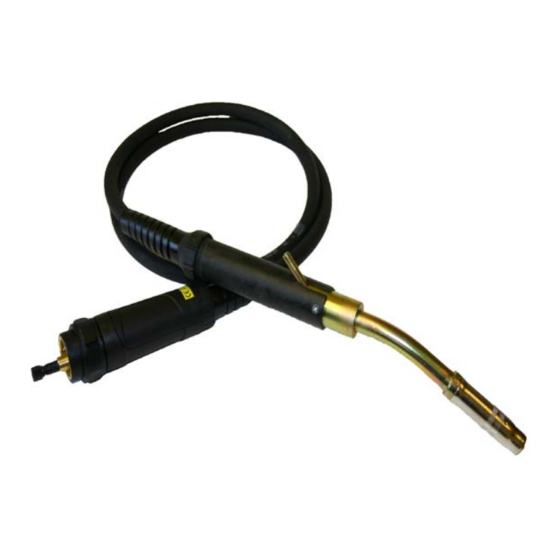

PSFt 315 M
PSFt 315 R
Instruction manual
0457 342 101 GB 060822
Valid for serial no. 217, 634

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSF 315 M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB PSF 315 M

Summary of Contents for ESAB PSF 315 M

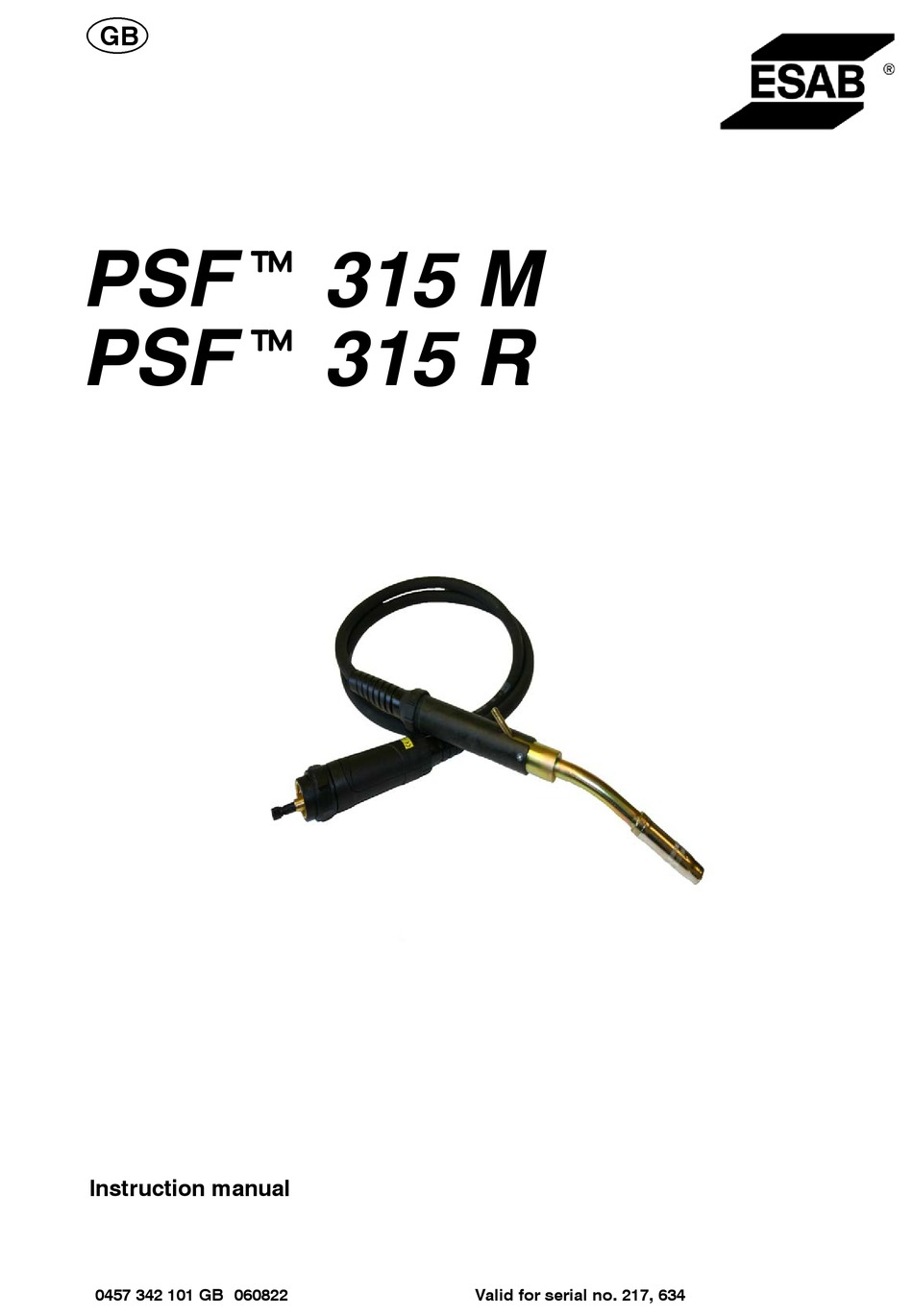

  • Page 1 PSFt 315 M PSFt 315 R Instruction manual 0457 342 101 GB 060822 Valid for serial no. 217, 634...

  • Page 2: Table Of Contents

    1 DIRECTIVE ............2 SAFETY .

  • Page 3: Directive

    ESAB Welding Equipment AB, S--695 81 Laxå, Sweden, gives its unreserved guarantee that welding gun PSF 315 M / 315 R from serial number 217 complies with standard EN 60974--7, in accordance with the requirements of directive (73/23/EEC) and addendum (93/68/EEC).

  • Page 4: Introduction

    Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommen- dations should be observed in addition to the standard regulations that apply to the workplace.

  • Page 5: Technical Data

    Changing wire liner, replacing electrode conductors 5.1.1 Install the correct nipple ESAB Connection EURO Connection Note! 2 nipples are supplied with each welding liner, 1 for an ESAB connection and 1 for a EURO connection. 5.1.2 Remove the gas nozzle and tip adator. 5.1.3 Install the wire liner in the welding gun.

  • Page 6: Interchangeable Connectors

    Cut the wire liner so that it protrudes by “X” in accordance with the table below. Welding gun Adapter Measu- Helix Measu- Length rement rement PSF 315 M / 315 R 1.5 m 0368 145 001 27 mm 0368 683 001 22 mm PSF 315 M / 315 R 2.2 m 0368 145 001...

  • Page 7: Contact Tip

    Contact tip Contact tips are selected according to electrode diameter, type of shielding gas and rating of the welding current being used. See table on page 13. The contact tips are initially selected with the guidance of the CO table. If seizing occurs in the event of high welding data with Argon or mixed gas, select on the basis of the MIX, AR table.

  • Page 8: Operation

    SPARE PARTS AND ACCESSORIES PSF 315 M / 315 R is designed and tested in accordance with the international and Eu- ropean standards IEC/EN 60974- -7 and EN 60974- -7. It is the obligation of the service unit which has carried out the service or repair work to make sure that the product still conforms to the said standard.

  • Page 9: Dimension Drawing

    Dimension drawing (mm) (mm) (mm) (mm) (mm) (mm) PSFt 315M, 25˚ 196.3 63.4 PSFt 315M, 25˚ 296.3 63.4 extended 100 PSFt 315M, straight 209.3 PSFt 315M, straight, 309.3 extended 100 - - 9 - - bg14dim...

  • Page 10: Ordering Number

    Welding gun PSFt 315 M, PSFt 315 R Ordering number Welding gun PSFt 315 M, PSFt 315 R Ordering numbers for 0367 233 894 PSFt 315 M / 315 R 1.5 m, 25˚ EURO Connection 0367 233 896 PSFt 315 M / 315 R 1.5 m, straight EURO Connection 0367 233 898 PSFt 315 M / 315 R 3.0 m, 25˚...
  • Page 11 Welding gun PSFt 315 M, PSFt 315 R Ordering numbers for other lengths When ordering please quote: -- Neck type -- Wire diameter -- Cable assembly length These ordering numbers apply only to standard torch variations. Other variations will be issued with part numbers on receipt of order.

  • Page 12: Wear Parts

    Welding gun PSFt 315 M, PSFt 315 R Wear parts (W) = wear part (A) = accessory Item Ordering no. Denomination Notes 0459 073 882 Gas nozzle, standard D/d 20/16 mm 0366 946 882 Gas nozzle, conical D/d 17/13 mm (A) (W) 0468 194 882 Gas nozzle, straight D/d 18/13 mm...

  • Page 13: Accessories

    Welding wire Ordering No Marked Ordering No Contact- Short arc Spray arc Wire Contact M6 x 30 ABB M6 x 27 ESAB Ø hole Ø hole Ø (0.8) 0468 500 002 W0.8 ESAB 0153 500 202 (0.8) 0468 500 003 W0.8...
  • Page 14 Welding gun PSFt 315 M, PSFt 315 R Wire liner NO TAG PTFE conduit incl. Wear insert separate Welding wire *) wear insert (steel) Steel PTFE (Al) 0.8 mm 0366 550 882 0366 545 880 0368 742 880 0.9--1.0 mm 0366 550 884 0366 545 881 0368 742 880...
  • Page 15 - - 15 - - page...
  • Page 16 ESAB subsidiaries and representative offices Europe Asia/Pacific Representative offices NORWAY AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
