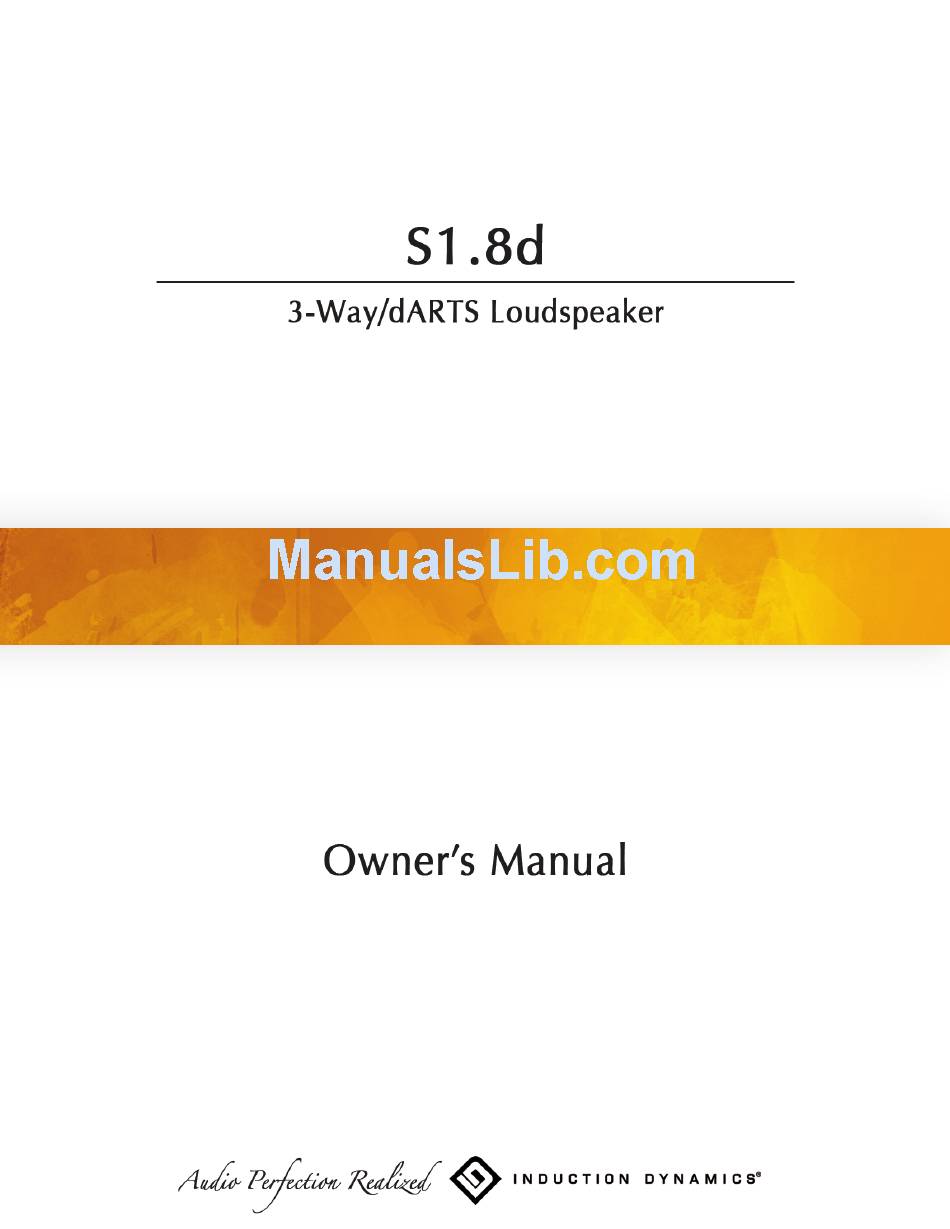

Induction Dynamics S 1.8d Owner's Manual

3-way/darts loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S 1.8d and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Induction Dynamics S 1.8d

Summary of Contents for Induction Dynamics S 1.8d

  • Page 2: Table Of Contents

    Table of Contents Introduction General Information Check Speaker and Parts General Care of Your Loudspeaker and Amplifier Bass and Loudness Contour Controls S1.8d Location Stands Speaker Wire Speaker Information S4X Crossover Wide Angle Phase Alignment Multi-Channel (Home Theater) Installation Speaker Placement S1.8d Speaker Connection S1.8d Specifications Warranty...

  • Page 3: Introduction

    Because of S4X technology, any of Induction Dynamics’ speakers can be used to build a custom home theater system. Your S1.8d can be combined with any of our main, center, and surround speakers, be they in-wall, on-wall, or free-standing.

  • Page 4: General Information

    (like you would use on clothes). Bass and Loudness Contour Controls Do not use bass or loudness contour controls. Induction Dynamics’ subwoofers produce very low frequencies without these controls. Use of these controls will make the bass sound “boomy”, obscure higher frequencies, and possibly cause damage.

  • Page 5: Stands

    Stands A speaker stand is not included with the S1.8d, but is available for purchase through your authorized Induction Dynamics dealer. The companion stand for the S1 is the ST1.S18. Speaker Wire Use approved wire designed for in-wall or exposed use, as appropriate for your installation.

  • Page 6: Speaker Information

    Speaker Information S4X™ Crossover The heart of Induction Dynamics is found in the S4X™ Super Fourth-Order Crossover. The patented S4X inductively couples crossover coils and optimizes each driver’s performance, individually and interactively with the other drivers. This greatly increases control over driver range, frequency response, phase and impedance.

  • Page 7: Wide Angle Phase Alignment

    Induction Dynamics reduces phase differences both horizontally and vertically through our Wide Angle® Phase Alignment technology. Because our patented circuitry provides additional variables that can help control phase, Wide Angle finds the one optimized solution that produces a flat frequency response along both the horiztonal and vertical axis.

  • Page 8: Multi-Channel (Home Theater) Installation

    Multi-Channel (Home Theater) Installation Speaker Placement 5.1 System A 5.1 system consists of a front left, front right, surround left, suround right, center channel, and subwoofer channel. An S1.8d functions equally well as mains or surrounds. In a home theater configuration, the main left and right channels should be placed a few feet from the front wall as close to listening height as possible.

  • Page 9: S1.8D Specifications

    S1.8d Specifications 3-way/dARTS freestanding loudspeaker. Type: Crossover: Exclusive patented S4X Driver Control Technology. Crossover Frequencies: 500, 3700 Hz Nominal Impedance: 4 Ohms (2.5 minimum) 50-20,000 Hz Frequency Response: 90 dB Sensitivity (2.83 V @ 1M): 87 dB SPL (1 W / 1 M): 200 W Power Handling: Magnetic Shielding:...

  • Page 10: Warranty

    This may be done at the time of purchase or before requesting repair service under this warranty. To obtain repair service, call or write to Induction Dynamics, Inc. at the phone number or address below. You will be given a return authorization number. Please mark this number clearly on the outside of the package(s) for identi cation.

  • Page 11: Contacts

    Contacts Manufacturer Information If you have any questions, contact Induction Dynamics by phone at 855-663-5600, 8:00 a.m.- 5:00 p.m. CST, fax at 913-663-3200, email at sales@inductiondynamics.com, or write to: Induction Dynamics Customer Service Department 8005 W. 110th St., Suite 208...
  • Page 12 To simplify your record keeping, please glue, staple, or tape your receipt to this page.
  • Page 13 8005 W. 110th Street, Suite 208 Overland Park, KS 66210 Tel: (855) 663-5600 Fax: (913) 663-3200 www.inductiondynamics.com © Induction Dynamics®, August 2013 ™...
