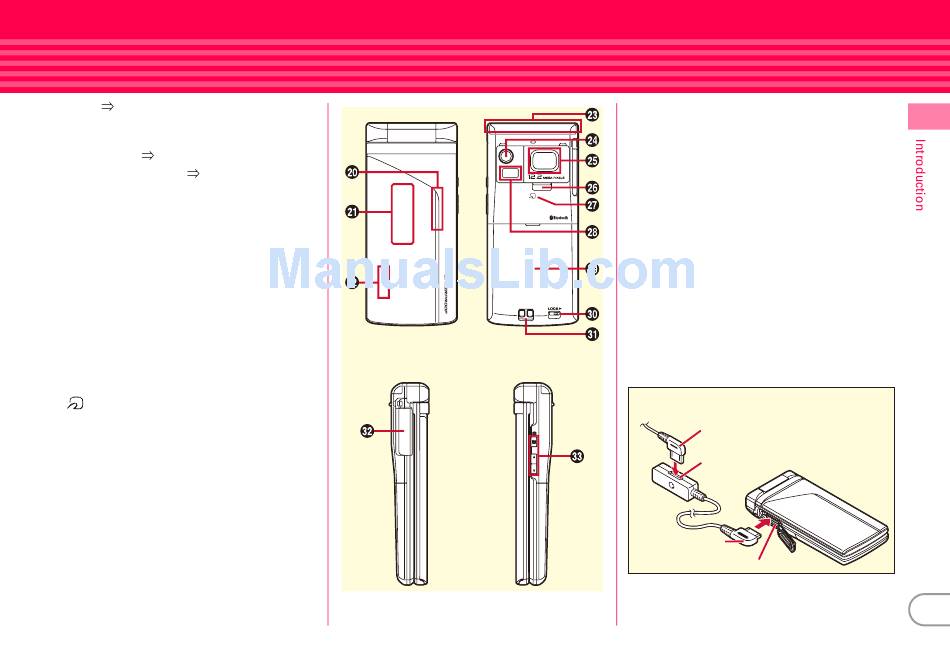

t Light
P27
The light turns on when the battery charges,
etc.
u Sub-display
P27
v Call light/Mail light
P27
The display light turns on or blinks when
there is any incoming call, mail or during a
call.
w FOMA antenna (built into FOMA terminal)
For a call in better conditions, do not cover
the antenna with your hand.
x Camera
Shoot still images or moving pictures.
y Fingerprint sensor
Authenticate a fingerprint.
z Speaker
Hear ring alert or voice of the caller using the
handsfree function.
A
Mark
Use Osaifu-Keitai or send/receive data by iC
transmission.
B Light/Infrared data port
Use this light/port for shooting, or for
infrared communication or infrared remote
control function.
C Back cover
* To access the microSD card slot, remove the back
cover, open the inner cover, and then remove the
battery pack.
D Back cover lever
* Firmly install the back cover and lock it with the
lever before using to avoid water seepage and
dust ingress.
E Charging jack
F External connection jack
Available to connect an optional AC adapter,
DC adapter, FOMA USB Cable with Charge
Function, Earphone Plug Adapter for
External connector terminal etc.
G Side keys
M : Use for operating MUSIC Player or
Music&Video Channel, or for shooting.
S : Stop the ring tone, alarm sound,
vibration, or adjust the volume.
D : Adjust the volume, turn on the light on
the sub-display or switch the views.
Example of connecting Flat-Plug Earphone/
Microphone with Switch (optional)
Connecting plug of Flat-Plug
Earphone/Microphone with Switch
Flat-plug earphone jack
Plug for the terminal
External connection jack
