  • Page 1 SH-100™ HAND WIRED USER GUIDE...

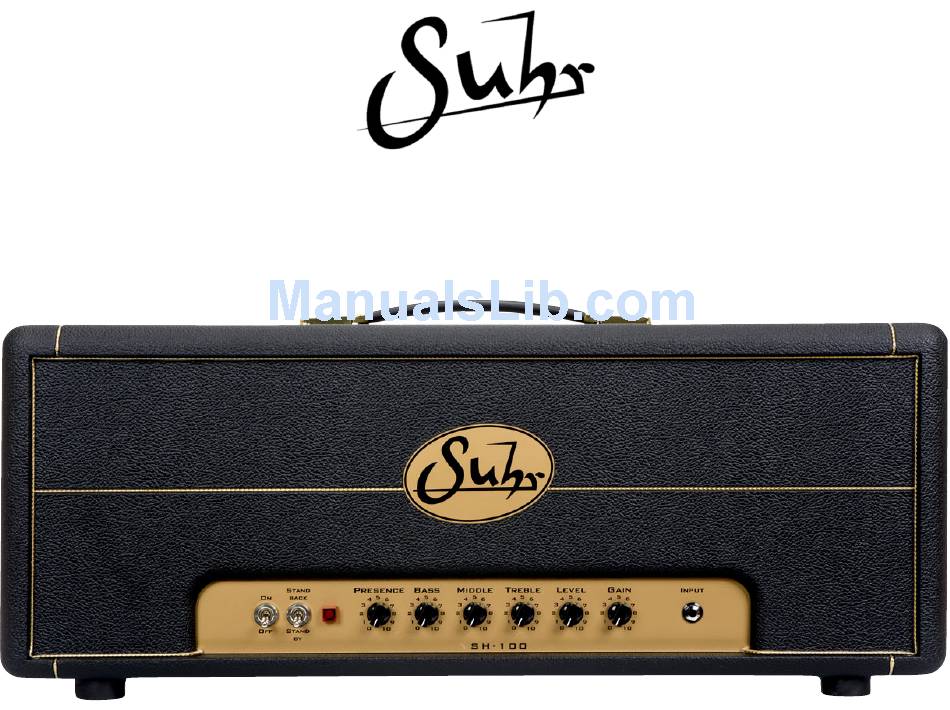

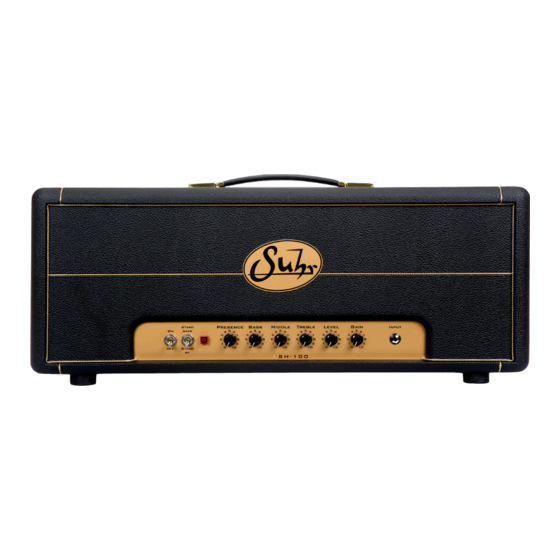

  • Page 2 SH-100 Hand Wired Amplifier The Suhr®  SH-100 was designed in collaboration with Jazz Fusion/Blues guitarist Scott Henderson.  This 100-watt, all-tube, hand wired amplifier features four EL-34s, a ’67 spec “Plexi” output transformer and a tube-buffered effects loop, to produce a broad range of...
  • Page 3: Tone Controls

    TONE CONTROLS Presence: Adjusts the amount of high frequencies. Turning it clockwise will Power Selector Switch: add more cut and sparkle. Two-position: Bass: Adjusts the amount of low end. Turning it clockwise increases the amount of low frequencies, giving you a fuller tone. Turning it OFF: Power is switched off counter clockwise will reduce the effect and tighten up the bottom-...
  • Page 4 Tubes The SH-100 tube compliment consists of four EL-34 power tubes and three12AX7 preamp tubes. Speaker Outputs: Two loudspeaker outputs wired in parallel with 3-way impedance selector switch for 4Ω, 8Ω & 16Ω. IMPORTANT: To avoid serious damage to your amplifier, we recommend never operating it without a speaker or suitable load.
  • Page 5: Sample Settings

    SAMPLE SETTINGS PUNCHY CLEAN:Presence: 5, Bass: 4, Middle: 4, Treble: 4, Level: 3, Gain: 2 CRUNCH I: Presence: 6, Bass: 3, Middle: 4, Treble: 4, Level: 3, Gain: 5 CRUNCH II: Presence: 7, Bass: 3, Middle: 3, Treble: 5, Level: 3, Gain: 7 LEAD: Presence: 6, Bass: 3, Middle: 5, Treble: 5, Level: 3, Gain: 8...
  • Page 6 Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.

This manual is also suitable for:

Ml-100
