Summary of Contents for Suhr SL-68

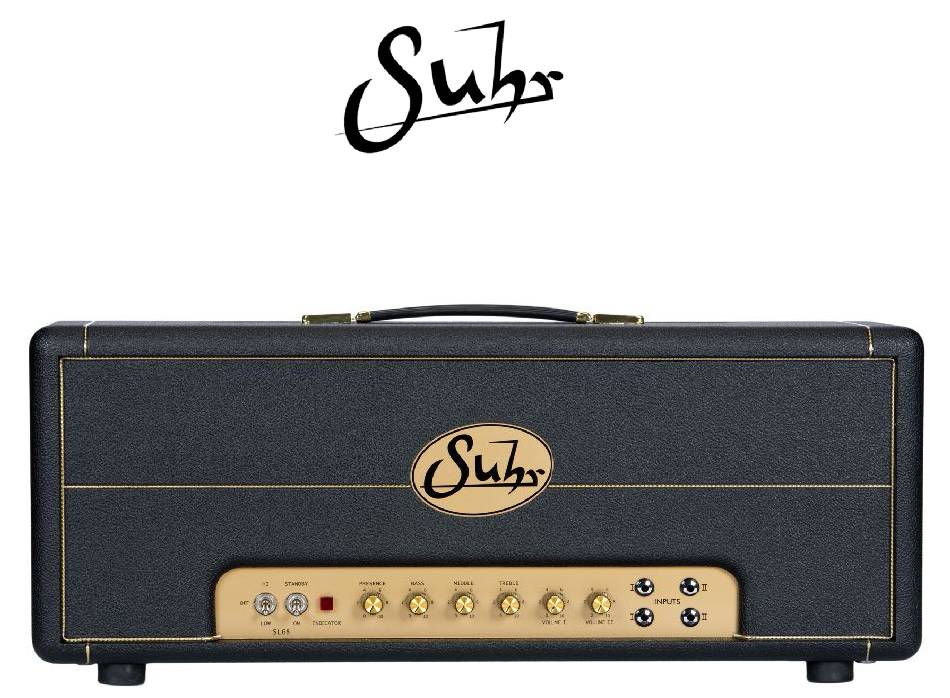

  • Page 1 SL-68 USER MANUAL...

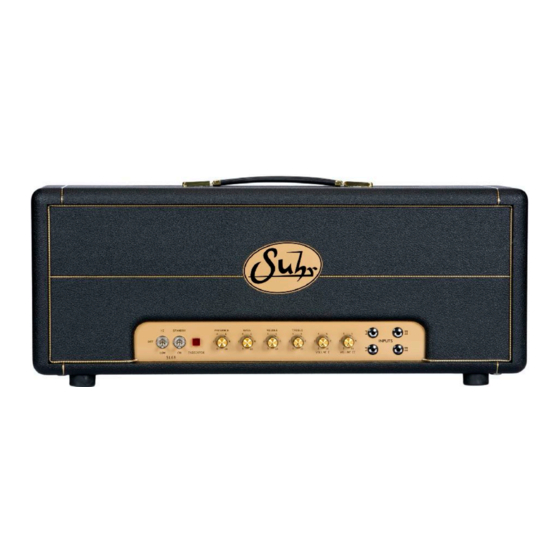

  • Page 2 SL-68 Hand wired The Suhr SL-68 is a hand wired, all-tube 100-watt head that delivers a broad range of classic and modern tonalities associated with British amplifiers of the late ® 60’s; from smooth and punchy clean to crunch all the way to full-bore hi-gain overdrive rich in harmonics and sustain.
  • Page 3 The Bass control adjusts the low end, turning it clockwise increases Power The Power Select Switch offers the following three-positions: OFF, Bass: the amount of low frequencies in your tone. HI & LOW power modes. Selector • OFF: Amplifier’s power mains are switched off Switch: •...
  • Page 4 Speaker Outputs: Bridging or Jumping the Channels: Two loudspeaker outputs wired in parallel with 3-way impedance The most common way to perform this is to plug your guitar into the selector switch for 4Ω, 8Ω & 16Ω. top (high sensitivity) input of Channel I and then run a short instrument patch cable from Channel I’s bottom (low sensitivity) IMPORTANT: To avoid serious damage to your amplifier, we input to the top (high sensitivity) input of Channel II.

  • Page 6: Sample Settings

    SAMPLE SETTINGS Max Clean Headroom: Power: 10, Drive: 10, Treble: 5, Middle: 5, Bass: 5, Gain: 2-3 On The Edge: Power: 7, Drive: 8, Bass: 4, Middle: 7, Treble: 7, Gain: 4-5 Crunch: Power: 6, Drive: 6, Bass: 4, Middle: 5, Treble: 5, Gain: 6-7 Saturated Lead: Power: 10, Drive: 4, Bass: 3, Middle: 6, Treble: 6, Gain: 8-10...
  • Page 7 Rear Panel: Master Volume, 2- Speaker outputs, Impedance selector (4Ω, 8Ω, & 16Ω), HT Fuse, Mains AC Inlet and Mains Fuse
 Dimensions: tbd
 Weight: tbd
 Accessories: tbd WARRANTY FOR SUHR AMPLIFIERS AND ELECTRONIC PRODUCTS: For warranty information on the Suhr SL68 as well as all other Suhr products, please visit, https://www.suhr.com/warranty/...
