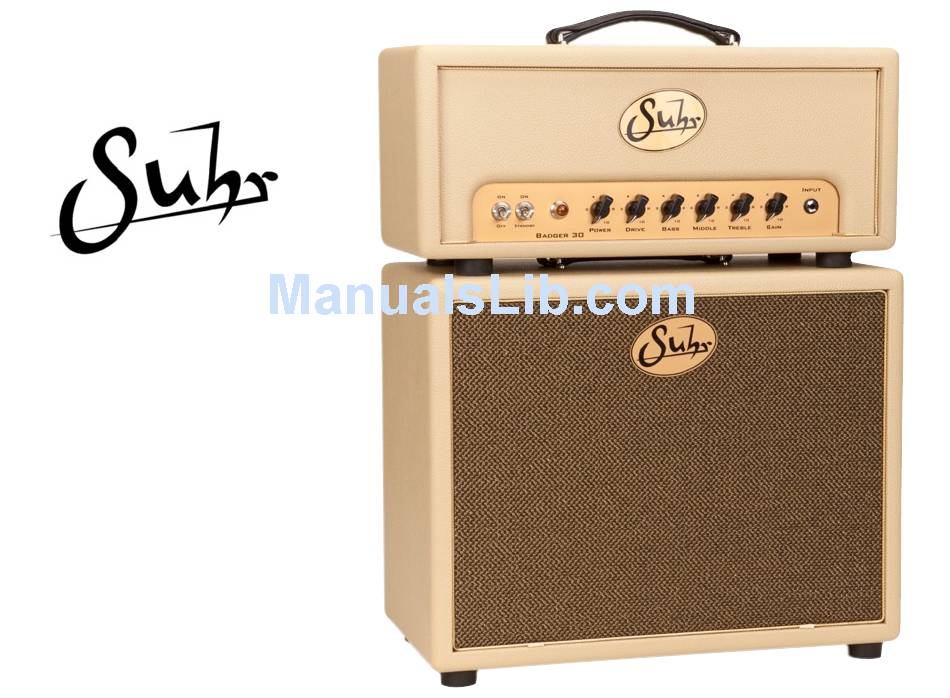

- Page 1 ® Badger 30 ™ USER MANUAL...

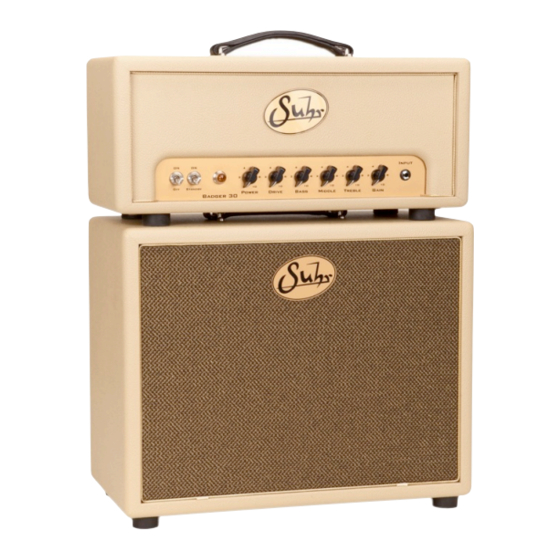

- Page 2 This 30-watt, all-tube amplifier offers a wide range of classic guitar sounds. Driven by a cathode biased EL-84 power section and features a solid state rectifier, the Badger 30 delivers a variety of full, punchy cleans and rich, tight dynamic overdrive tones.
- Page 3 ON/OFF: With the Power switch in the OFF position and the Standby switch in the STANDBY position, flip the power switch to ON. Wait 6 0 s e c o n d s , t h e n f l i p t h e Standby switch to the ON position.
- Page 4 Speaker Outputs: Includes two speaker outputs in parallel and a 3-way selector switch for 4Ω, 8Ω & 16Ω. H.T. (High Tension) Fuse: (500mA Fast) This fuse is in line Tube-Buffered Effects Loop: Performs equally well with pedals and with the DC voltage in the amp. line-level rack gear.
- Page 5 Tubes: The Badger 30 tube compliment consists of two EL84 power tubes and three 12AX7 preamp tubes.
-
Page 6: Sample Settings
SAMPLE SETTINGS Max Clean Headroom: Power: 10, Drive: 8, Treble: 5, Middle: 5, Bass: 5, Gain: 2-3 On The Edge: Power: 7, Drive: 8, Bass: 4, Middle: 7, Treble: 7, Gain: 3-4 Crunch: Power: 6, Drive: 6, Bass: 4, Middle: 5, Treble: 5, Gain: 6-7 Saturated Lead: Power: 10, Drive: 4, Bass: 3, Middle: 6, Treble: 6, Gain: 8-10... - Page 7 Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
