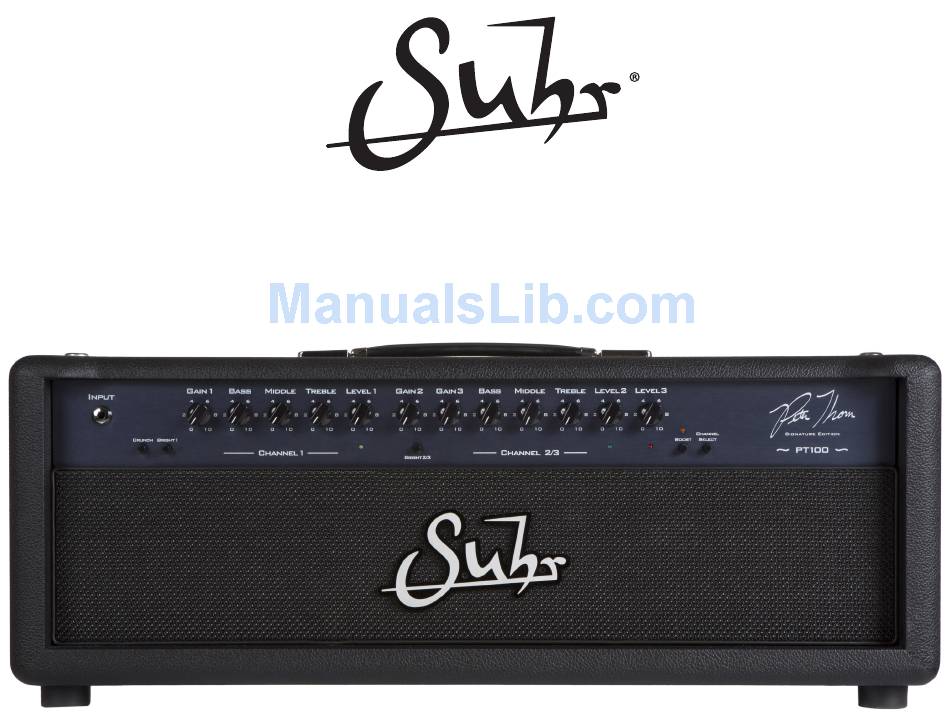

- Page 1 PT-100 SIGNATURE EDITION ™ USER GUIDE...
-
Page 2: Important Safety Instructions

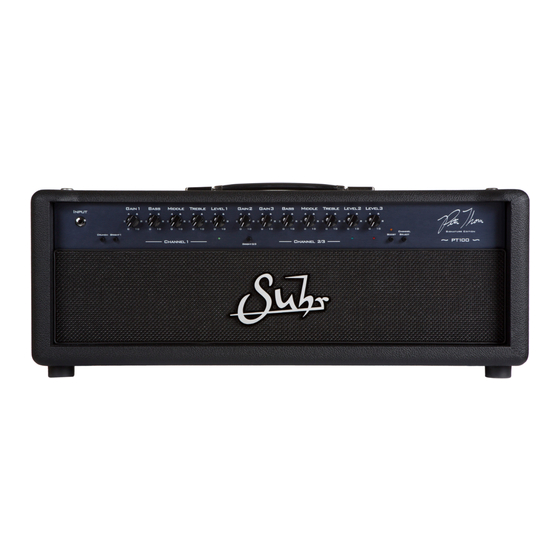

IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions 2. Keep these instructions 3. Heed all warnings 4. Follow all instructions 5. Do not use this apparatus near water 6. Clean only with dry cloth 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions 8. - Page 3 PT-100 amplifier, we have created the ultimate, no compromise, multi-channel amp - now MIDI switchable. The PT-100 Signature Edition is available in a classic black tolex and appointed with black knobs and a rich midnight anodized aluminium faceplate. The Suhr PT-100 Signature Edition is a 100 watt, three-channel tube amplifier head lthat features a custom “Plexi-style”...
- Page 4 OPERATING INSTRUCTIONS POWERING INSTRUCTIONS With the power switch (located on Back) in the O (OFF) position and the Standback/Standby switch in the Standby position O, flip the power switch to the I (ON) position. Wait sixty seconds, then flip the Standby switch to the Standback I position. To power down, simply switch the amplifier from Standback to Standby, then flip the power switch to the O (OFF) position.
- Page 5 CHANNEL 1 (Clean) CRUNCH Engaging this switch changes the character of Channel 1 from pristine clean to a thicker classic tone that breaks up when Gain 1 is set at higher settings. BRIGHT 1 Adds brightness and sparkle. GAIN 1 Adjusts the overall gain of Channel 1.
- Page 6 CHANNEL 2 / 3 (Overdrive) BRIGHT 2 / 3 Adds brightness to Channels 2 and 3. GAIN 2 Adjusts the overall gain of Channel 2. GAIN 3 Adjusts the overall gain of Channel 3. BASS Adjusts the amount of bass. Turning it clockwise increases the amount of bottom-end, giving you a fuller tone. Turning it counter clockwise will reduce the bottom-end, which is useful when performing at louder volumes.
-
Page 7: Speaker Outputs
Two 8 Ω cabinets, use both 4 Ω output jacks. One 4 Ω cabinet, use one 4 Ω output jack. EFFECTS LOOP The PT-100 Signature Edition is equipped with a bypassable (via the In/Active button), IMPORTANT: a hybrid/solid-state series/parallel effects loop, which performs well with pedals and •... -
Page 8: Programming The Footswitch
MIDI IN/FS Use this port to connect the included four button footswitch or other MIDI enabled devices. THRU This port emits a copy of everything received at the Midi input port, allowing data to be forwarded to another device in a “daisy chain arrangement”. FOOTSWITCH The PT-100 is equipped with an anodized aluminum, four button footswitch which enables remote channel selection, and toggles the boost feature. - Page 9 The PT-100 ships from the factory receiving data on MIDI channel 14. It easily integrates with your favorite MIDI footswitch/system, utilizing Program/Controller messages. For detailed information, please refer to the chart below. PT-100 SIGNATURE EDITION MIDI IMPLEMENTATION CHART (CONTROLLER ASSIGNMENTS)
- Page 10 TUBES EX.1 The PT-100 tube complement consists of four EL-34 power tubes and six 12AX7 preamp tubes. PREAMP TUBE POSITION LIST V1 (closest to the input jack) First gain stage for Channel 1 and 2 V2 Additional gain stages for Channel 1 V3 Additional gain stage for Channel 2 / 3 V4 Additional gain stage for Channel 2 / 3 and it’s tone stack V5 Effects loop...
- Page 11 PETE THORN'S SAMPLE SETTINGS WARM CLEAN (CHANNEL 1) FRONT PANEL BACK PANEL CRUNCHY CLEAN (CHANNEL 1) FRONT PANEL BACK PANEL RHYTHM CRUNCH (CHANNEL 2) FRONT PANEL BACK PANEL HI-GAIN LEAD (CHANNEL 3) FRONT PANEL BACK PANEL...
-
Page 12: Specifications
We encourage international customers to purchase through your local distributor or dealer for this reason. Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
