- Page 1 User Guide...
-
Page 2: Table Of Contents
Table of Contents Overview � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Important Safety Instructions �... -
Page 3: Overview

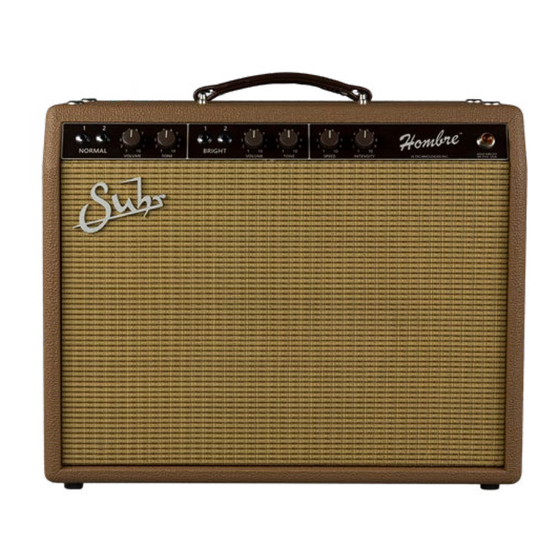

The purity of the signal path is part of Hombre’s beauty. It results in a play- ing experience that is incredibly dynamic and touch-sensitive. A simple turn of the volume and tone controls will put a shocking range of sound at your fingertips. -
Page 4: Important Safety Instructions
Important Safety instructions Please read this list of instructions to keep your Hombre running safely� 1. Read these instructions 2� Keep these instructions 3. Heed all warnings 4� Follow all instructions 5. Clean only with dry cloth 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions... -
Page 5: Front Panel Overview
Bright Input 1 Volume Knob (Bright Channel) High Input For Bright Channel. Normal Input 1 Controls the volume of the Normal Bright Input 2 High Input For Normal Channel. channel. Low Input For Bright Channel. Normal Input 2 Low Input For Normal Channel. Tone Knob (Bright Channel) Controls the tonal response of the Bright channel. -
Page 6: Rear Panel Overview
See Page 8 for additional information. Mains Input Connect the supplied AC cable to this inlet to supply power. Fuse T 2.0A 250V - 110V-120V T 1.0A 250V - 220V-240V ON/OFF Switch Turns on/off the Hombre. (No Standby Switch Required.) -
Page 7: Normal Channel & Bright Channel
Normal Channel & Bright Channel This guide will show the ways you can use your Hombre's Normal Channel and Bright Channel. Normal Channel Steps: 1� Connect your guitar to Input 1 to push the amp into breakup earlier or Input 2 for more clean headroom or to tame high-output pickups. -
Page 8: Tube Bias Tremolo
Tube-Biased Tremolo This section will explain how to use the Hombre's Tube Biased Tremolo Circuit. Bias Tremolo circuits are truly unique in that the effect is created by modulating the bias of the power tubes. As the power tube bias is lowered and raised, it imparts an unmistakably rich, sought after sound, that only a Tube Bias Tremolo can�... -
Page 9: Rear Panel
Rear Panel This section will explain the speaker outs and the rear panel of the Suhr Rear panel section (left) Hombre� Steps: 1� Connect the MAINS INPUT with the include power cable. 2� Connect Hombre’s internal speaker (or primary cabinet) to the red jack labeled Speaker using a 1/4”... -
Page 10: Technical Specifications
Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
