Suhr SL Series User Manual

15w hand wired amplifer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SL15 HAND WIRED
™
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Suhr SL Series

Summary of Contents for Suhr SL Series

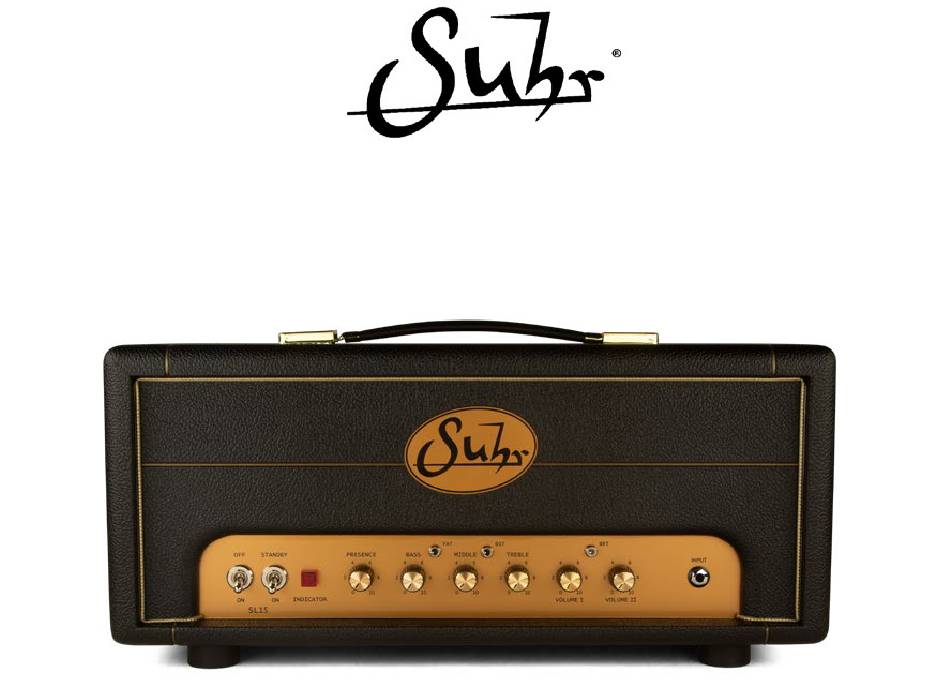

  • Page 1 SL15 HAND WIRED ™ USER GUIDE...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions 2. Keep these instructions 3. Heed all warnings 4. Follow all instructions 5. Do not use this apparatus near water 6. Clean only with dry cloth 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions 8.
  • Page 3 Thank you for purchasing the Suhr SL15 Hand Wired amplifier. OVERVIEW The all-new Suhr SL15, 15W addition to the legendary Suhr SL series of hand-wired amplifiers, we’d like to introduce the SL15, a compact, yet powerful recreation of classic British tones. The rich, dynamic response of the Suhr SL series, with harmonically rich cleans, chewy midrange, and searing overdrive vintage character.

  • Page 4: Front Panel

    FRONT PANEL PRESENCE Adjusts the amount of high frequencies. Turning it clockwise will add more cut and sparkle. POWERING INSTRUCTIONS With the Power, ON/OFF Select Switch in the OFF position and the Standby Switch in the Standby position, flip the power switch to ON position. Wait sixty seconds and then BASS flip the Standby Switch to the on position.
  • Page 5 BRIGHT SWITCH: (3-position) Left position: Bright cap is removed from circuit. This position is the stock position found in the Original Suhr SL series. Middle position: Medium bright Right position: Full bright: Adds brilliance, presence and sparkle to your tone, making your guitar.
  • Page 6 OPERATING INSTRUCTIONS (continued) INPUT: VOLUME II (Bass Channel): The SL15’s single-input circuit keeps both channels blendable at all times, giving you A warmer, thicker alternative to Volume I, this control brings out the amp’s lower-mids effortless control over your tone. and bass response, creating a rounder, more harmonically rich tone.

  • Page 7: Master Volume

    MASTER VOLUME Adjusts the SL15‘s overall output level and offers the flexibility to dial up rich, classic overdrive at any volume. NOTE: Turning the SL15's Master Volume to 10 will remove it from the circuit. TUBES The SL15’s tube complement consists of two 6V6 power tubes and three 12AX7 preamp tubes. SPEAKER OUTPUTS Two loudspeaker outputs wired in parallel with 3-way impedance selector switch for 4Ω, 8Ω...

  • Page 8: Specifications

    HT Fuse, Mains AC Inlet and Mains Fuse Dimensions: 20.5" (W) x 8.25" (D) x 9.25" (H) Weight: 25 lbs. *All specifications subject to change without prior notice. Warranty For warranty information on the Suhr SL15 as well as all other Suhr products, please visit, www.Suhr.com/Warranty...
