- Page 1 ® Badger 18 ™ USER MANUAL...

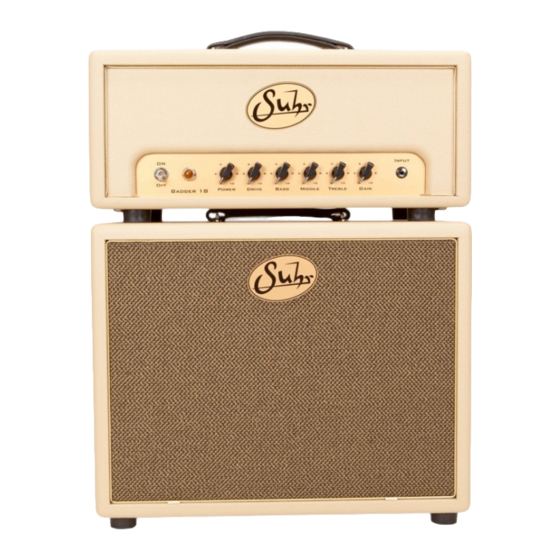

- Page 2 This 18-watt, all-tube amplifier offers a wide range of classic guitar sounds. Driven by a cathode biased EL-84 power section and features a 5Y3GT tube rectifier, the Badger 18 delivers a variety of warm, sparkling cleans and rich, dynamic overdrive tones.
- Page 3 ON/OFF: To power up the Badger 18, flip the ON/OFF select switch to the ON position. To power down, simply switch the power switch to the OFF position. Drive: Feeds the input to the power section. With Power at 10 it acts as a...
- Page 4 Speaker Outputs: Includes two sets of speaker outputs wired in parallel: 8 Ω OHM:(1@8Ω or 2@16Ω) 4Ω OHM :(1@4Ω or 2@8Ω) Tube-Buffered Effects Loop: Performs equally well with pedals and line-level rack gear. For best results ensure that the effects unit is A.C.
- Page 5 Tubes: The Badger 18 tube compliment consists of two EL84 power tubes, three 12AX7 preamp tubes and one 5Y3GT* rectifier tube. When replacing the rectifier tube, we require you change it with a new 5Y3GT. Using the 5Y3GT will ensure your Badger’s internal voltages operate properly.
-
Page 6: Sample Settings
SAMPLE SETTINGS Max Clean Headroom: Power: 10, Drive: 10, Treble: 5, Middle: 5, Bass: 5, Gain: 2-3 On The Edge: Power: 7, Drive: 8, Bass: 4, Middle: 7, Treble: 7, Gain: 4-5 Crunch: Power: 6, Drive: 6, Bass: 4, Middle: 5, Treble: 5, Gain: 6-7 Saturated Lead: Power: 10, Drive: 4, Bass: 3, Middle: 6, Treble: 6, Gain: 8-10... - Page 7 Our international distributors are set up to handle warranty issues in their respective countries. If you do not have an authorized Suhr dealer in your country, please contact us direct for further details.
