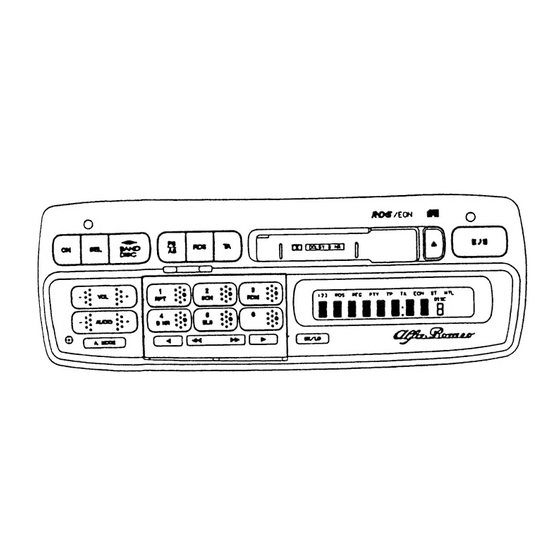

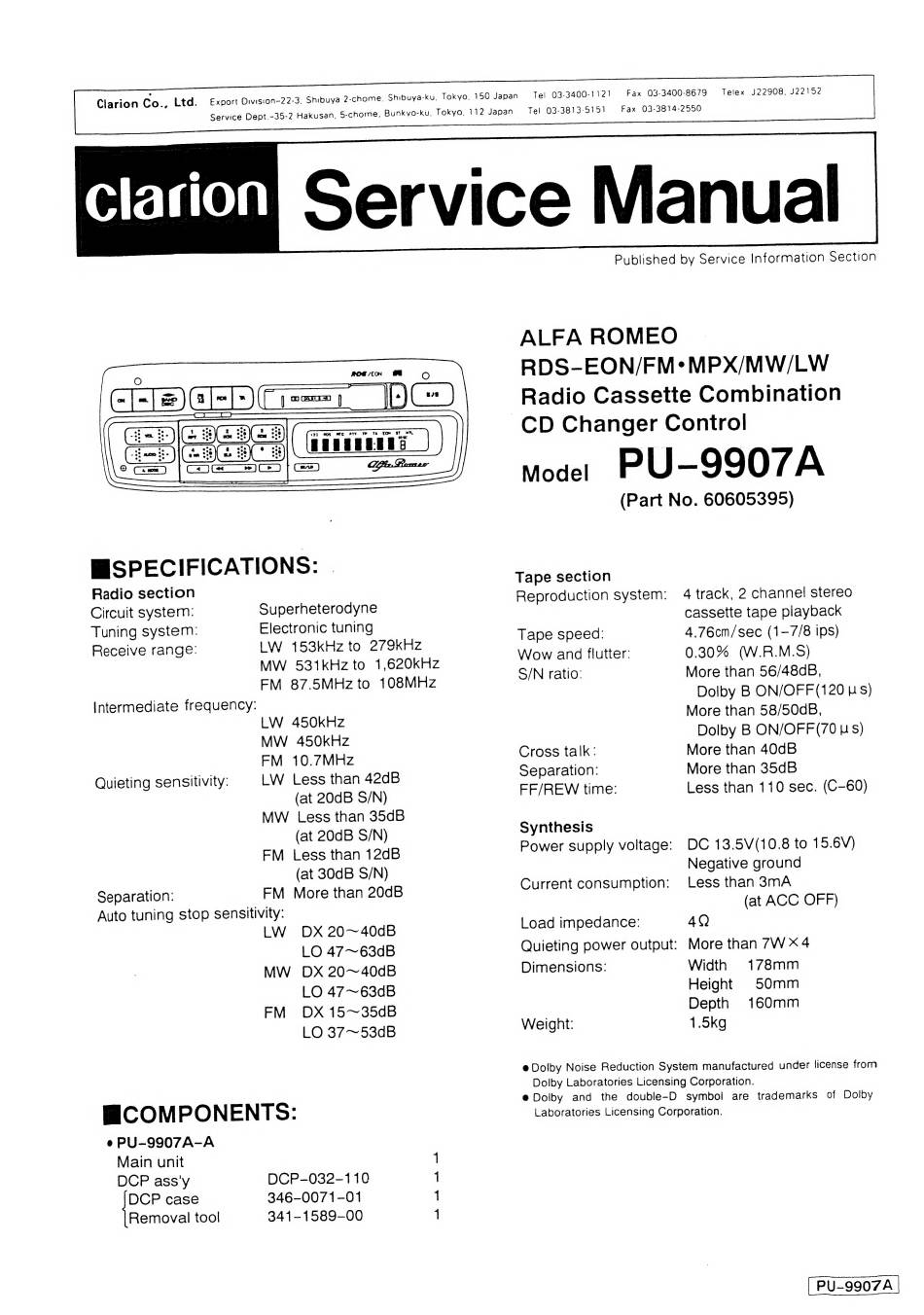

Clarion PU-9907A Service Manual

Radio section
Circuit system:
Tuning system:
Receive range:
Superheterodyne
Electronic tuning
LW 153kHz to 279kHz
MW 531kHz to 1,620kHz
FM 87.5MHzto 108MHz
Intermediate frequency:
LW 450kHz
MW 450kHz
FM 10.7MHz
LW Less than 42dB
(at 20dB S/N)
MW Less than 35dB
(at 20dB S/N)
FM Less than 12dB
(at 30dB S/N)
Separation:
FM More than 20dB
Auto tuning stop sensitivity:
LW DX 20~40dB
LO 47~63dB
MW DX 20~40dB
LO 47~63dB
FM DX 15~35dB
LO 37~53dB
HICOMPONENTS:
e PU-9907A-A
Main unit
1
DCP ass'y
DCP-032-110
1
DCP case
346-0071-01
1
cede tool
341-1589-00
1
ALFA ROMEO
(Part No. 60605395)
Tape section
Reproduction system:
Tape speed:
Wow and flutter:
S/N ratio:
Cross talk:
Separation:
FF/REW time:
Synthesis
Power supply voltage:
Current consumption:
Load impedance:
Quieting power output:
Dimensions:
Weight:
4 track, 2 channel stereo
cassette tape playback
4.76cm/sec (1-7/8 ips)
0.30% (W.R.M.S)
More than 56/48dB,
Dolby B ON/OFF(120 us)
More than 58/50dB,
Dolby B ON/OFF(70 Us)
More than 40dB
More than 35dB
Less than 110 sec. (C-60)
DC 13.5V(10.8 to 15.6V)
Negative ground
Less than 3mA
(at ACC OFF)
4Q
More than 7W x4
Width 178mm
Height 50mm
Depth 160mm
1.5kg
@ Dolby and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
PU-9907A
