Clarion PH-1630B-A Service Manual

SPECIFICATIONS
■
Radio setion
Receive range: FM 87.75 to 107.9MHz(PH-1630B)
AM 530 to 1,710kHz(PH-1630B)
Intermediate frequency:
FM 10.7MHz
AM 450kHz
Quieting sensitivity: FM Less than 12dB
AM Less than 30dB
Auto tuning stop sensitivity:
FM 24
AM 35
Tape section
Reproduction system: 4track, 2program 2channel
stereo system
Wow and flutter: Less than 0.2%(W.R.M.S)
Separation: More than 30dB
Crosstalk: More than 40dB
S/N ratio: Normal tape(120
More than 40dB(DOLBY NR OFF)
More than 48dB(DOLBY B NR ON)
Metal tape(70
More than 45dB(DOLBY NR OFF)
More than 53dB(DOLBY B NR ON)
FF/REW time: Less than 120sec(C-60)
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996
87.5 to 108.0MHz(PH-1645B)
531 to 1,602kHz(PH-1645B)
(at 30dB S/N)
μ
(at 20dB S/N)
μ
6dB
± μ
6dB
± μ
μ s)
μ s)
Tel: 03-3400-1121
Service Manual
HONDA Automobile Genuine
AM/FM Radio Cassette Stereo

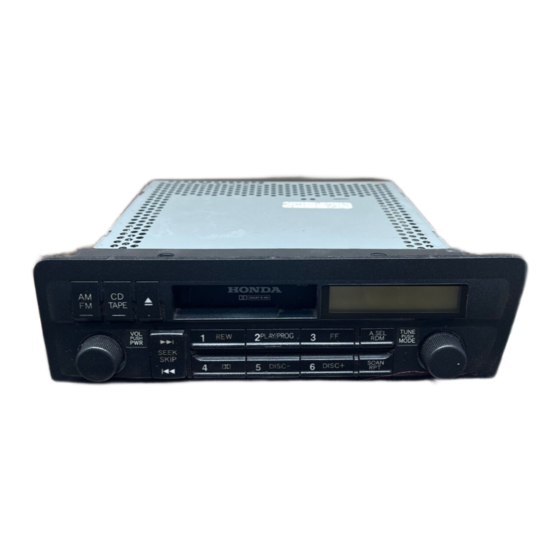

PH-1630B-A
Model
(Genuine No. 39100-S0X-A110-M1)
(ID No. 4PXO / for North America)
PH-1630B-B
Model
(Genuine No. 39100-S82-A010)
(ID No. 4PAO / for North America)
PH-1645B-A
Model
(Genuine No. 39100-S82-Y010-M)
(ID No. 4CAO / for Asia)
General
Load impedance:
Output power:
Power supply voltage:DC13.2V(10.8 to 15.6V)
Current consumption: Less than 9A(at max.output)
Dimensions(mm):
Weight:
※ Specification and design are subject to change with-
out notice for further improvement.
※ Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol are trademarks of
※
Dolby Laboratories Licensing Corporation.
NOTE
■
We can not supply PWB with component parts in prin-
ciple. When a circuit on PWB has failure, please repair it
by component parts base. Parts which are not mentioned
in service manual are not supplied.
■ COMPONENTS
PH-1630B-A / PH-1630B-B / PH-1645B-A
Main unit
- 1 -
Published by Service Dept.
298-5689-00 Sep.1998 P
Printed in Japan
4 Ω
20W × 4(at max.output)
Negative ground
187(W) × 60(H) × 171(D)
1.4kg
−−−−−
PH-1630B-A/B
PH-1645B-A
1
