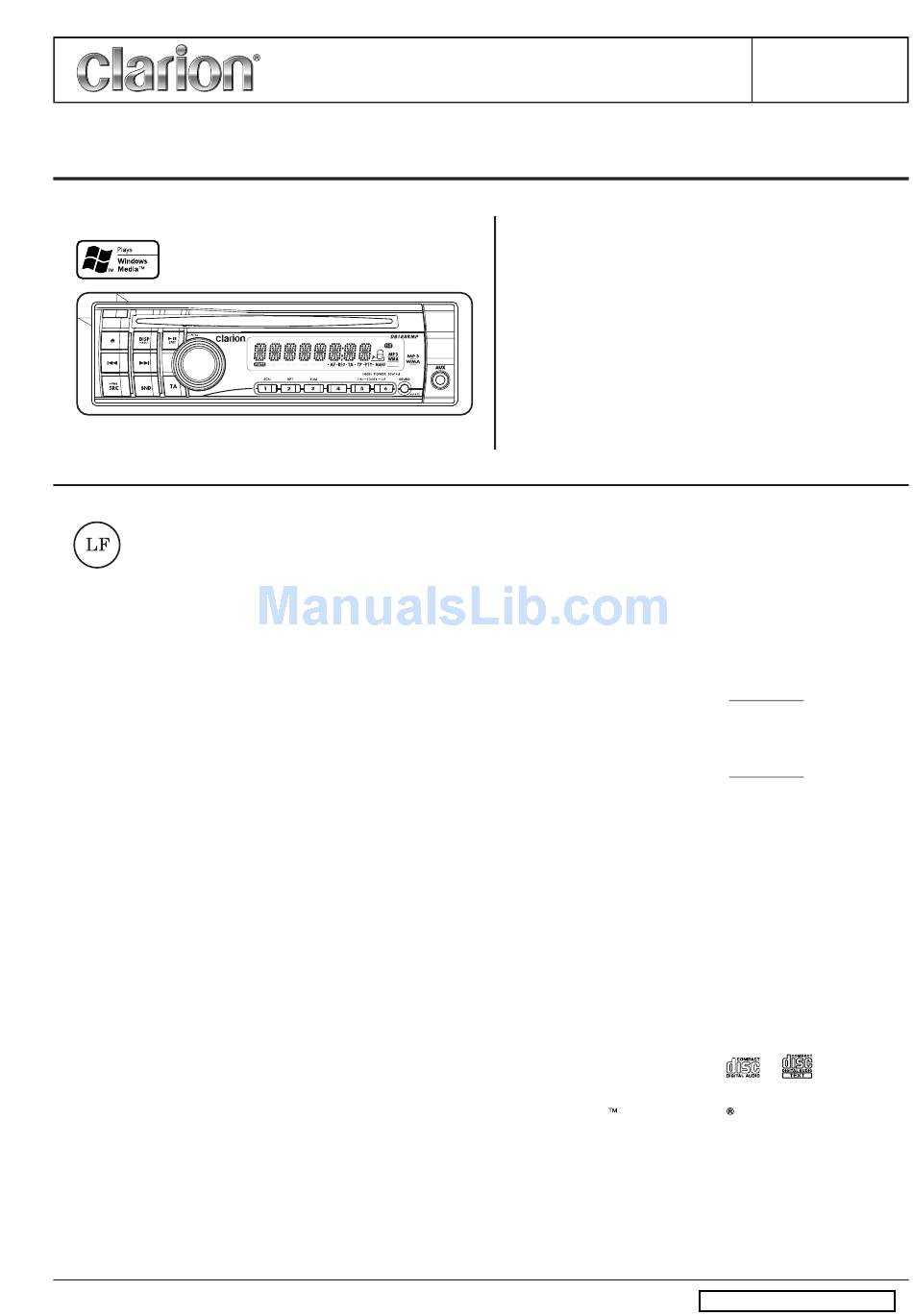

Clarion DB188RMP Service Manual

(DB188RMP)
This product is a lead free model.
Lead free solder is used in PWB stamped LF mark.
Please keep the following conditions when you repair.
1. Use lead free solder.
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
* Koki's lead free solder S3X-55M 1.0mm
(CLARION Parts No.642-0231-02)
2. Use a nitrogen solder system.
3. Do not use "General solder" and "Lead free solder"
together.

SPECIFICATIONS

Radio section
Tuning system:
Receiving frequencies:
CD player section
System:
Frequency response:
Dynamic range:
Harmonic distortion:
MP3/WMA mode
MP3 Sampling rate:
MP3 Bit rate:
WMA Bit rate:
Logical format:
General
Output power:
Xiamen Clarion Electrical Enterprise Co., Ltd
8/F., Xiamen Mail Processing Centre, No.275 Lujiang Road , Xiamen,China
Tel:+86-592-2389080 Fax:+86-592-2389089
Clarion Co., Ltd.
7-2, Shintoshin, Chuo-Ku, Saitama-Shi, Saitama 330-0081, Japan
PLL synthesizer tuner
FM : 87.5 MHz to 108 MHz
(0.05 MHz steps)
MW : 531 kHz to 1602 kHz
(9 kHz steps)
LW : 153 kHz to 279 kHz
(3 kHz steps)
Compact disc digital audio system
5Hz to 20kHz(+1/-1dB)
90dB(1kHz)
0.01%
8kHz to 48kHz
8kbps to 320kbps / VBR
48kbps to 192kbps
ISO9660 level1, 2
JOLIET or Romeo
25 W x 4
(DIN45324, +B=14.4V)
Service Manual

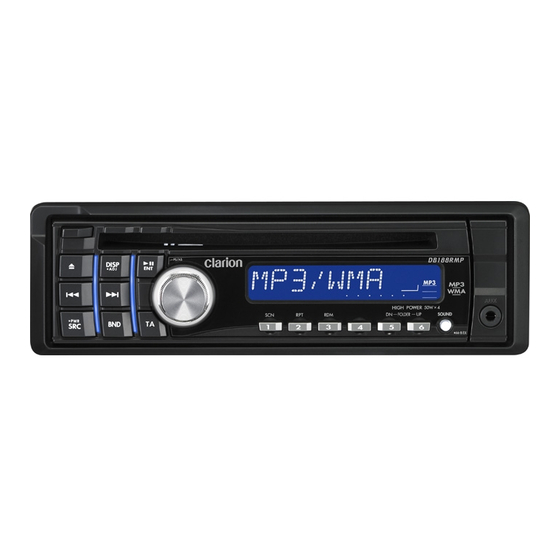

CD/MP3/WMA Receiver
DB188RMP
Model
(PE-3050E-A)
DB189RMP
(PE-3050E-B)
DB189RGMP
(PE-3050E-C)
Power supply voltage:
Power consumption:
Speaker impedance:
Weight:
Dimensions(mm):
COMPONENTS
PE-3050E-A/PE-3050E-B/PE-3050E-C
1. Source unit
2. Mounting bracket
3. DCP case
4. Escutcheon(OUT-ES)
5. Parts bag
5-1. Removal key
5-2. Rubber part
5-3. Stopper
5-4. Screw(M5x10)
5-5. A-lead
NOTE
* We cannot supply PWB with component parts in principle. When
a circuit on PWB has failure, please repair it by component parts
base. Parts which are not mentioned in service manual are not
supplied.
* Specifications and design are subject to change without notice for
further improvement.
* Use only compact discs bearing the
Some CDs recorded in CD-R/CD-RW mode may not be usable.
* Windows Media , and the Windows
gistered trademarks of Microsoft Corporation in the United States
and/or other countries.
* WMA is the abbreviation of Windows Media Audio, an audio file
format developed by Microsoft Corporation.
* This product includes technology owned by Microsoft Corporation
and cannot be used or distributed without a license from MSLGP.
-1-
Published by Service Dept.
298-6524-00 JAN. 2008P
Printed in P.R.C.
14.4V DC(10.8 to 15.6V allowable),
negative ground
Less than 15A
4ohm(4ohm to 8ohm allowable)
1.2kg
178(W)x50(H)x155(D)
1
300-7742-00 1
335-6035-22 1
370-6286-00 1
1
331-2497-00 2
345-3653-20 1
335-4899-20 1
716-0726-51 1
1
850-6681-50
or mark.
logo are trademarks, or re-
DB188/189RMP/DB189RGMP
