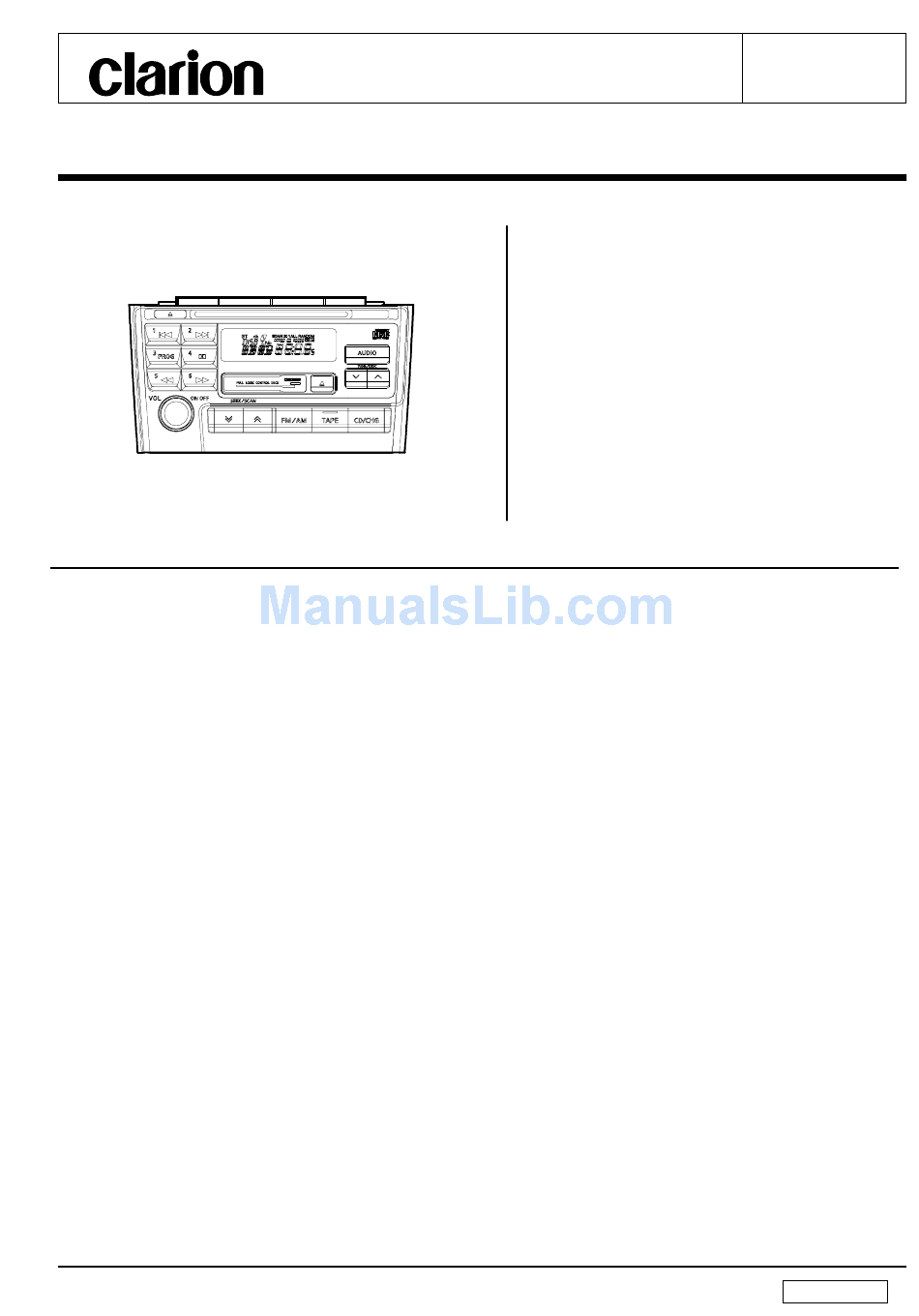

Clarion PN-2280D-A Service Manual



SPECIFICATIONS

■
Radio section
Tuning system: PLL Frequency synthesizer system
Receive range: AM 530kHz to 1,710kHz
FM 87.75MHz to 107.9MHz
Intermediate frequency:
AM 450kHz
FM 10.7MHz
Quieting sensitivity: AM Less than 37dB
(at 20dB S/N)
FM Less than 15dB
(at 30dB S/N,Main)
Separation: FM More than 20dB
Auto tuning stop sensitivity:
AM 39
FM 32
Tape section
Reproducting system:
4 track,2 program
2 channel stereo system
Wow and flutter: Less than 0.15
Separation: More than 35dB
Cross talk: More than 45dB
S/N ratio: Normal tape(120
47dB/55dB(DOLBY B NR ON)
Metal tape(70
49dB/57dB(DOLBY B NR ON)
FF/REW time: 110sec.(C-60)
Clarion Co., Ltd.
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan
Service Dept.- 50 kamitoda,Toda-shi,Saitama,335-8511 Japan Tel: 048-443-1111 FAX:048-433-6996

μ
μ
± 6dB μ (at 1000k,1400kHz)
± 6dB μ
％ (W.R.M.S)
μ s)
μ s)
Tel: 03-3400-1121
Service Manual
NISSAN Automobile Genuine
AM/FM Radio Cassette
Stereo CD Deck
PN-2280D-A
Model
(Genuine No.28188 2Y900)
(ID No.CN628)
PN-2280D-B
Model
(Genuine No.28188 2Y900)
(ID No.CN628)
(Available from Serial No.15271)
CD section
Disc:
Frequency response:
Separation:
S/N ratio:
AUX section
Gain:
General
Load impedance:
Power output:
Power supply voltage:
Back-up consumption:
Dimensions(mm):
Weight:
※ Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
※ "DOLBY" and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
※ Specifications and design are subject to change without
notice for further improvement.
- 1 -
Published by Service Dept.
298-5767-00 Sep.1999 P
Printed in Japan
12cm,8cm Disc
17Hz to 20kHz(0.5W output)
More than 50dB
More than 74dB
FRONT/REAR 18 3dB
±
(AUX input 1kHz,245mV,Vol.max)
4 Ω /ch
30W × 4
DC13.2V(10.8V to 15.6V)
Negative ground
Less than 3mA
180(W) × 108(H) × 160(D)
3.0kg
PN-2280D
