Ibis 3 Owners Guide

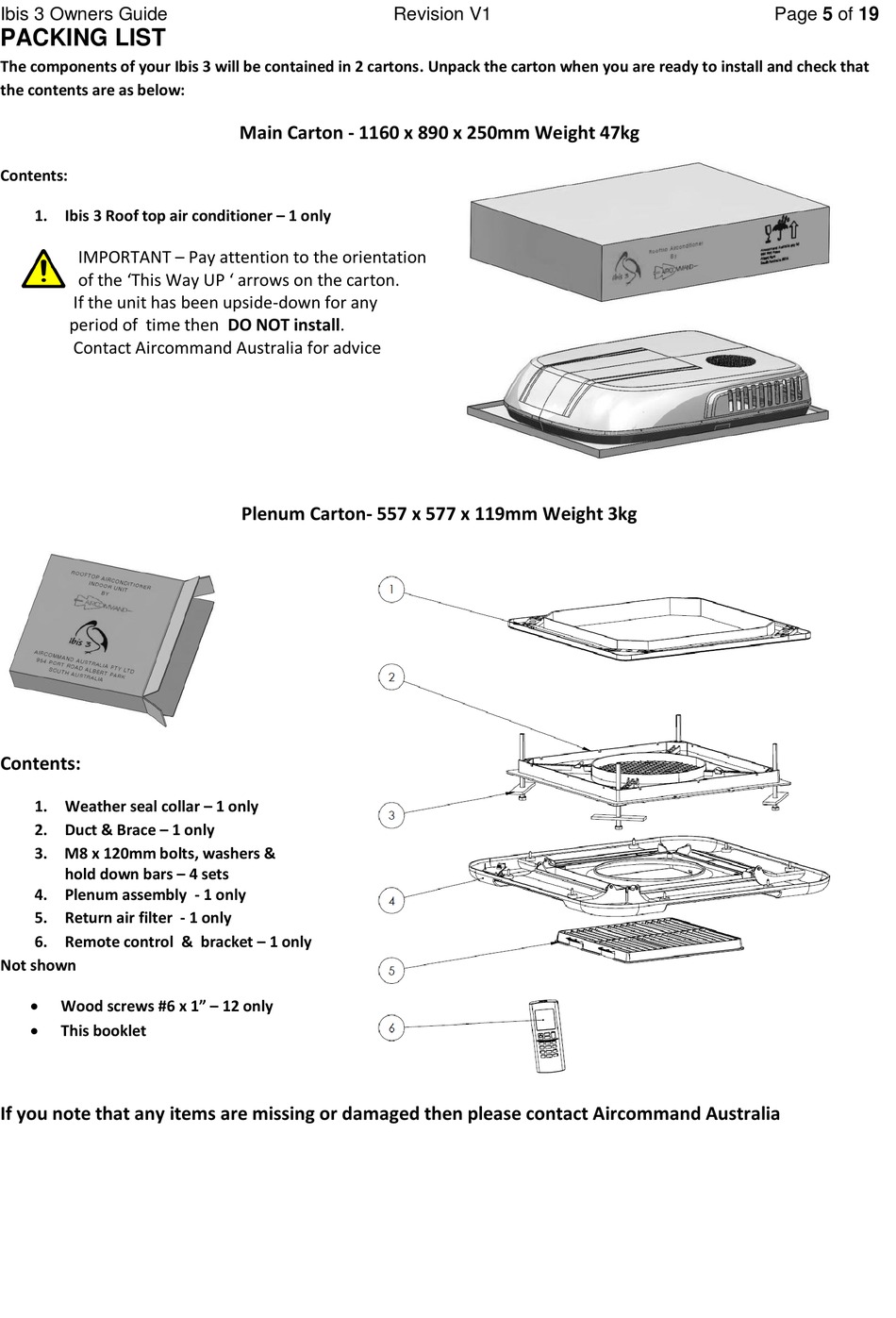

PACKING LIST
The components of your Ibis 3 will be contained in 2 cartons. Unpack the carton when you are ready to install and check that
the contents are as below:
Contents:
1. Ibis 3 Roof top air conditioner – 1 only
IMPORTANT – Pay attention to the orientation
of the 'This Way UP ' arrows on the carton.
If the unit has been upside-down for any
period of time then DO NOT install.
Contact Aircommand Australia for advice
Contents:
1. Weather seal collar – 1 only
2. Duct & Brace – 1 only
3. M8 x 120mm bolts, washers &
hold down bars – 4 sets
4. Plenum assembly - 1 only
5. Return air filter - 1 only
6. Remote control & bracket – 1 only
Not shown
Wood screws #6 x 1" – 12 only
This booklet
If you note that any items are missing or damaged then please contact Aircommand Australia
Revision V1
Main Carton - 1160 x 890 x 250mm Weight 47kg
Plenum Carton- 557 x 577 x 119mm Weight 3kg
Page 5 of 19
