StarTech.com USB32DPPRO Spec Sheet

Usb 3.0 to displayport external video card multi monitor adapter – 2560x1600

Hide thumbs Also See for USB32DPPRO:

See also: User Manual

USB 3.0 to Displayport® External Video Card Multi Monitor Adapter – 2560x1600

StarTech ID: USB32DPPRO

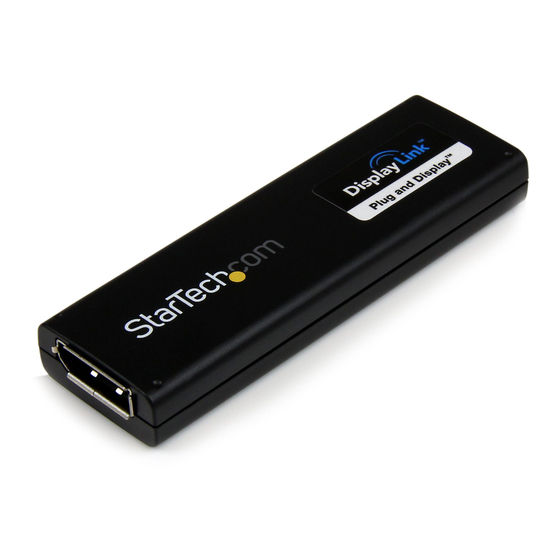

The USB32DPPRO USB 3.0 to DisplayPort® Multi Monitor Adapter functions as an external DisplayPort video

card, turning an available USB 3.0 port into a DisplayPort output, with support for high resolution 2560x1600

video, and 5.1 surround sound audio. The USB 3.0 DisplayPort adatper delivers a convenient, high-performance

external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop

computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-

definition content to your DisplayPort-capable display, and can be used to mirror your primary desktop, showing

the same image on each display, or to extend your desktop to double your workspace and increase your

productivity.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:

CPU: Quad Core 2.4GHz or Higher (i5 recommended)

RAM: 4GB or higher

Table of Contents

Need help?

Do you have a question about the USB32DPPRO and is the answer not in the manual?

Page 1 USB 3.0 to Displayport® External Video Card Multi Monitor Adapter – 2560x1600 StarTech ID: USB32DPPRO The USB32DPPRO USB 3.0 to DisplayPort® Multi Monitor Adapter functions as an external DisplayPort video card, turning an available USB 3.0 port into a DisplayPort output, with support for high resolution 2560x1600 video, and 5.1 surround sound audio.
Page 2 USB-powered - No external power adapter required Choose between Mirrored, Extended or Primary display configurations Driver software supports display rotation Supports the Windows® Aero interface Supports 5.1 channel audio Supports the use of multiple USB32DPPRO USB 3.0 DisplayPort adapters on a single system (up to 5)
Page 3 Technical Specifications Warranty 2 Years Audio Memory 512MB DDR II Industry Standards Standard DisplayPort, SuperSpeed USB 3.0, USB 2.0 Chipset ID DisplayLInk - DL3500 Output Signal DisplayPort Connector A 1 - USB 3.0 A (9 pin; SuperSpeed) Male Connector B 1 - DisplayPort (20 pin) Female Maximum Digital 2560x1600...
Page 4 Full HD Video: CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher Note Connect a maximum of five USB32DPPRO adapters on a single PC - See manual for system requirements Shipping (Package) 0.8 lb [0.4 kg] Weight Included in Package 1 - USB 3.0 to Displayport Adapter...
