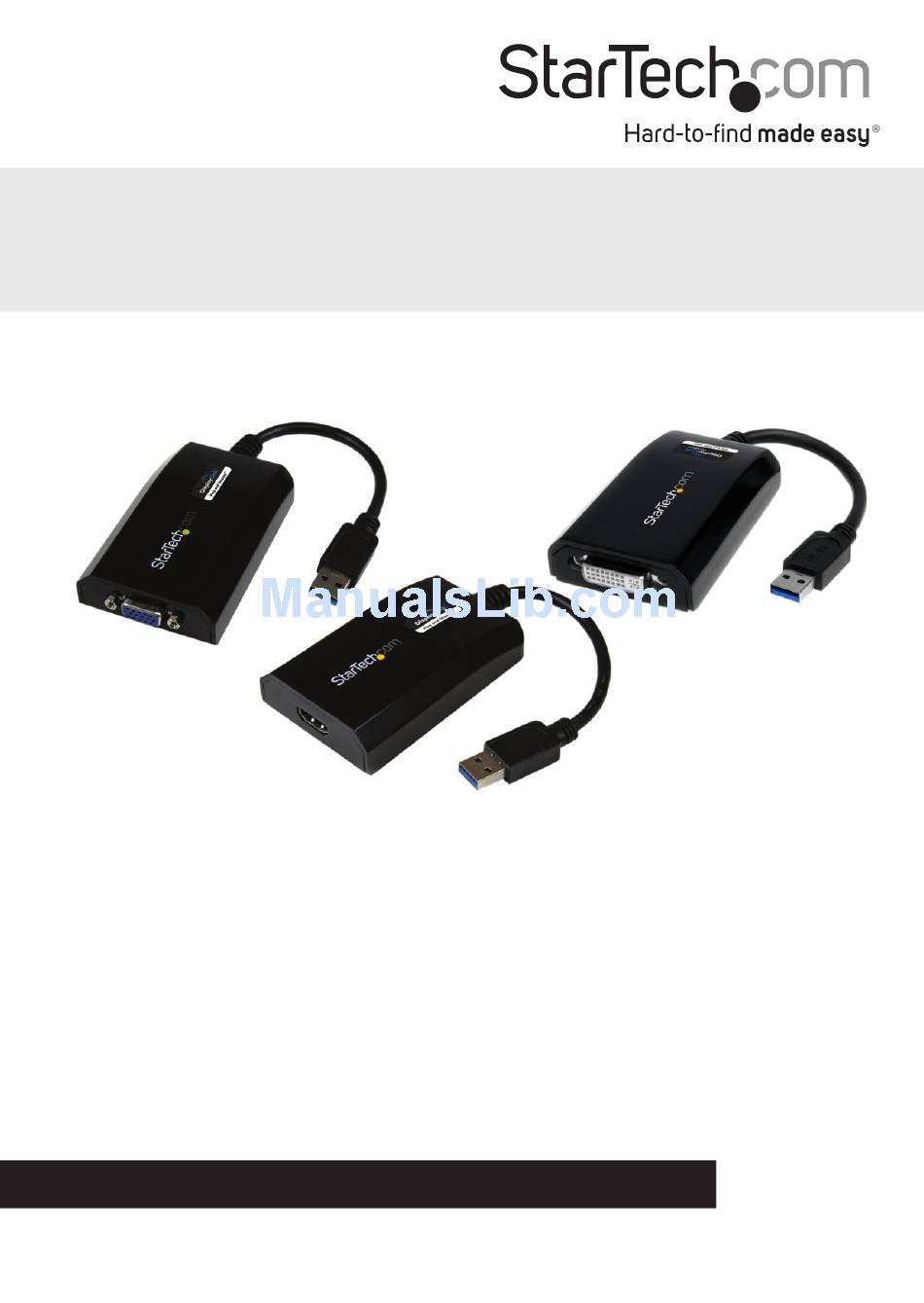

User Manual

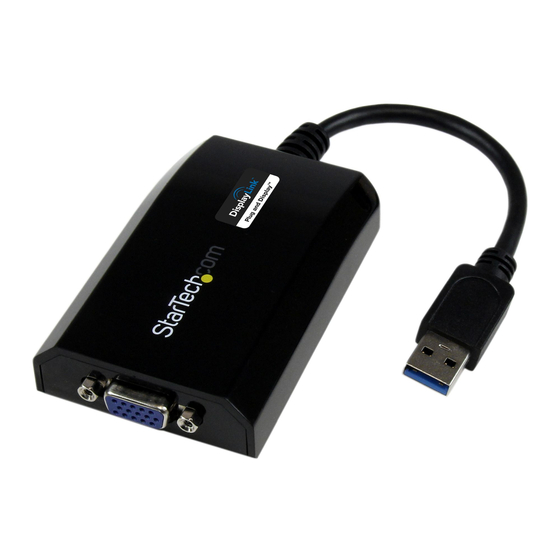

USB 3.0 to VGA External Video Card
USB 3.0 to HDMI External Video Card
USB 3.0 to DVI External Video Card
USB32VGAPRO / USB32HDPRO / USB32DVIPRO
Note:
Computer systems running Windows® 7 or higher will install software and drivers
automatically upon connecting the USB Display Adapter. If your computer system is running
a previous versions of Windows or any version of Mac OSX®, please ensure the software has
been installed before the USB Display Adapter is connected (See Installation).
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/28/2014
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32VGAPRO
Summary of Contents for StarTech.com USB32VGAPRO
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/28/2014...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows Installation ..........................2 Mac OSX Installation ..........................3 Multiple USB Video Adapter Installation ..................4 Configuring the USB Video Adapter ............5 Windows® ..............................5 Mac OSX ............................... -
Page 4: Introduction
Introduction Packaging Contents • 1x USB 3.0 Video Adapter • 1x Driver/Software CD • 1x Instruction Manual • 1x DVI-to-VGA Adapter (for USB32DVIPRO only) System Requirements • VGA-enabled display (e.g. Monitor, Projector, Television) (for USB2VGAPRO) HDMI-enabled display (e.g. Projector, Television) (for USB2HDPRO) DVI-enabled display (e.g. -
Page 5: Installation
Note: If your computer system is running Windows 7 or higher please proceed to step 4, as steps 1 - 3 are not required. 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. -
Page 6: Mac Osx Installation
Note: Some machines may require a system reboot for the USB Display Adapter to initialize. 6. Connect the video cable from your VGA or HDMI display to the VGA (USB32VGAPRO) or HDMI (USB32HDPRO) port on the USB Display Adapter. The USB Video Adapter is now ready for use. -
Page 7: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed; otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps up to the point of connecting the first USB Video Adapter. -
Page 8: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Windows® When devices are attached, an icon appears in the taskbar. This gives you access to the DisplayLink manager menu. 1. From the taskbar, click the Show hidden icons arrow to show all available icons. DisplayLink Manager 2. - Page 9 Extend When “Extend” is selected, the monitor attached to the USB Display Adapter displays an extension of the user’s active Windows desktop. The extra desktop area is a great productivity aid, allowing more applications or documents to be visible simultaneously. You can access applications on each monitor, by simply moving your curser, or dragging applications from one screen to another.
-
Page 10: Notebook Monitor Off
Extend To When selecting “Extend To, ” you can define the physical location of the monitor attached to the USB Display Adapter in relation to your primary monitor. Once the physical location has been defined, you can move your mouse curser from one screen to another in the logical location that the monitors are physically positioned. -
Page 11: Mac Osx
Mac OSX To configure the display settings and monitor positions, bring up the Displays Preferences from the System Preferences menu: The Display settings for each display will appear on the individual monitors themselves. To configure them all from a single location, press the “Gather Windows” button and each screen’s Displays Preferences windows will appear on that display. - Page 12 Changing the Primary Display You can change which display is the primary display in the “Displays” section of the “System Preferences” menu. Once in “Displays, ” each connected display will be represented by a blue box. Click and drag the white “Menu Bar” (highlighted in the image below) between displays to adjust which display is the primary display.
-
Page 13: Specifications
Specifications Audio Specification 5.1 Channel Surround (48Khz) (USB32HDPRO only) AV Input USB 3.0 Max Resolution 1920 x 1200 VGA (USB32VGAPRO) AV Output HDMI (USB32HDPRO) DVI (USB32DVIPRO) Cable Length 0.91m Chipset ID Displaylink DL3500 Color Black Enclosure Type Plastic Audio Memory 512MB DDR II Windows®... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
