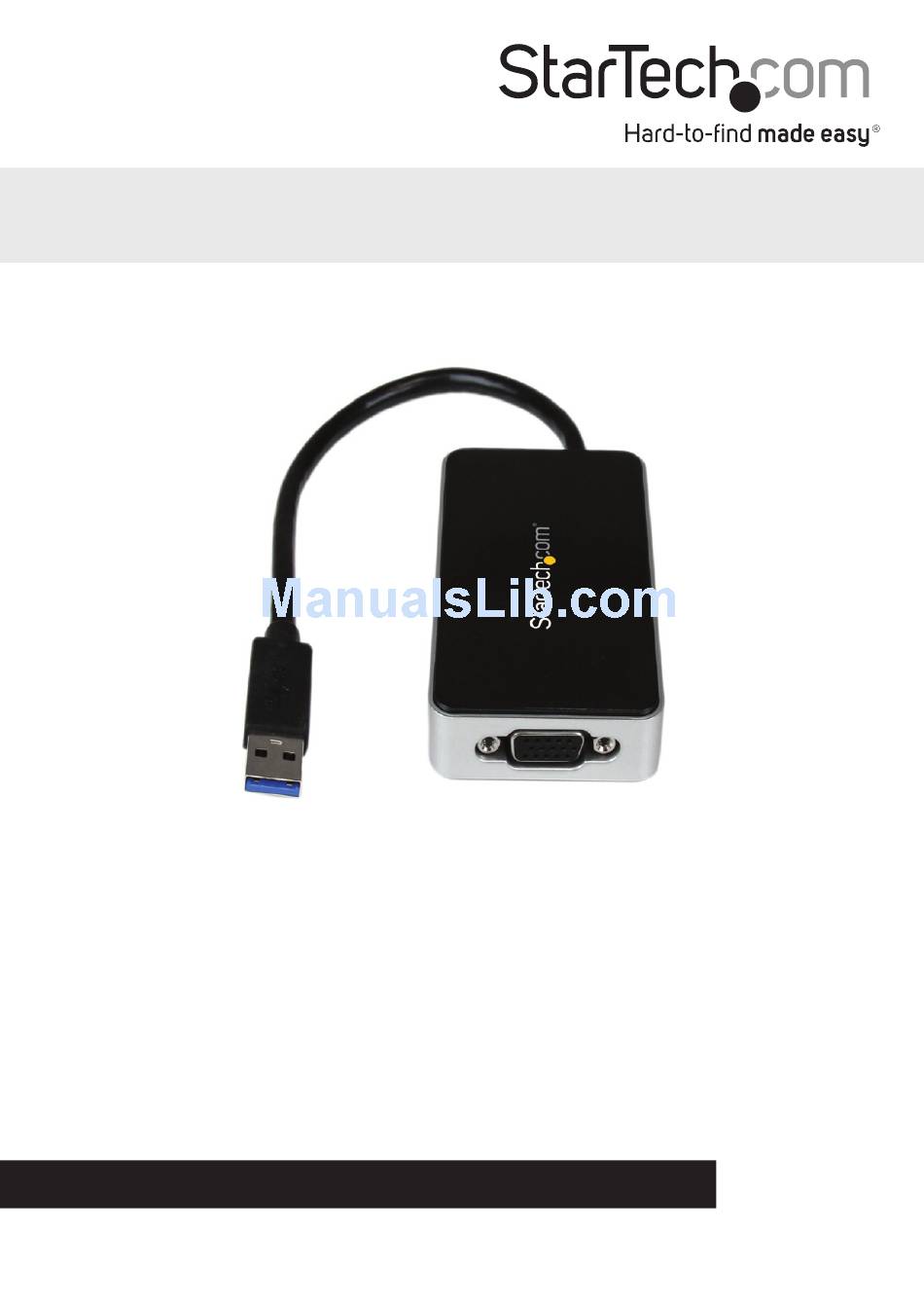

USB 3.0 to VGA Video Adapter with
USB Hub Port
USB32VGAEH
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/18/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32VGAEH
Summary of Contents for StarTech.com USB32VGAEH
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/18/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................3 Hardware Installation ..........................4 USB HUB Installation (Optional) ......................4 Multiple USB Video Adapter Installation ..................5 Configuring the USB Video Adapter ....................5 Display Settings ............................6 Identify Monitors ............................ -
Page 4: Introduction
Introduction The USB32VGAEH USB 3.0 to VGA® Adapter turns an available USB 3.0 port into a VGA output port with high resolution 1920x1200 video support. The adapter features a built-in 1-Port USB 3.0 hub, which offers a connection port in place of the USB port used for connecting the VGA adapter –... - Page 5 Example: External USB device attached to pass-through port of USB32DVIEH *actual product may vary from photos Front Back Instruction Manual...
-
Page 6: Installation
Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. -
Page 7: Hardware Installation
2. The system will initiate driver and software application (screen may flash or go black during the install). 3. Connect your VGA monitor to the available VGA port on the USB32VGAEH device. 4. The USB Video Adapter is now ready for use. -
Page 8: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps, up to when you plug in the first USB Video Adapter. -
Page 9: Display Settings
Display Settings Quick access to the Windows® “Display Settings” window. This option allows you to use the Windows® native Display Settings to adjust all settings including: Resolution, monitor placement, and choose whether the additional will extend or mirror the main display. Identify Monitors This option displays the identification number assigned by Windows®... -
Page 10: Multi-Display Control Panel
Multi-Display Control Panel This unique feature allows for quicker and simpler management of a multi-display environment using a series of hotkeys to quickly move the active program window to the desired display (either on-board or each USB Video Adapter). The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display Control Panel”. -
Page 11: Specifications
SuperSpeed USB 3.0, USB 2.0 Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720 Supported Resolutions Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 Wide Screen Supported NOTE: Connect a maximum of five USB32VGAEH adapters on a single PC Instruction Manual... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
