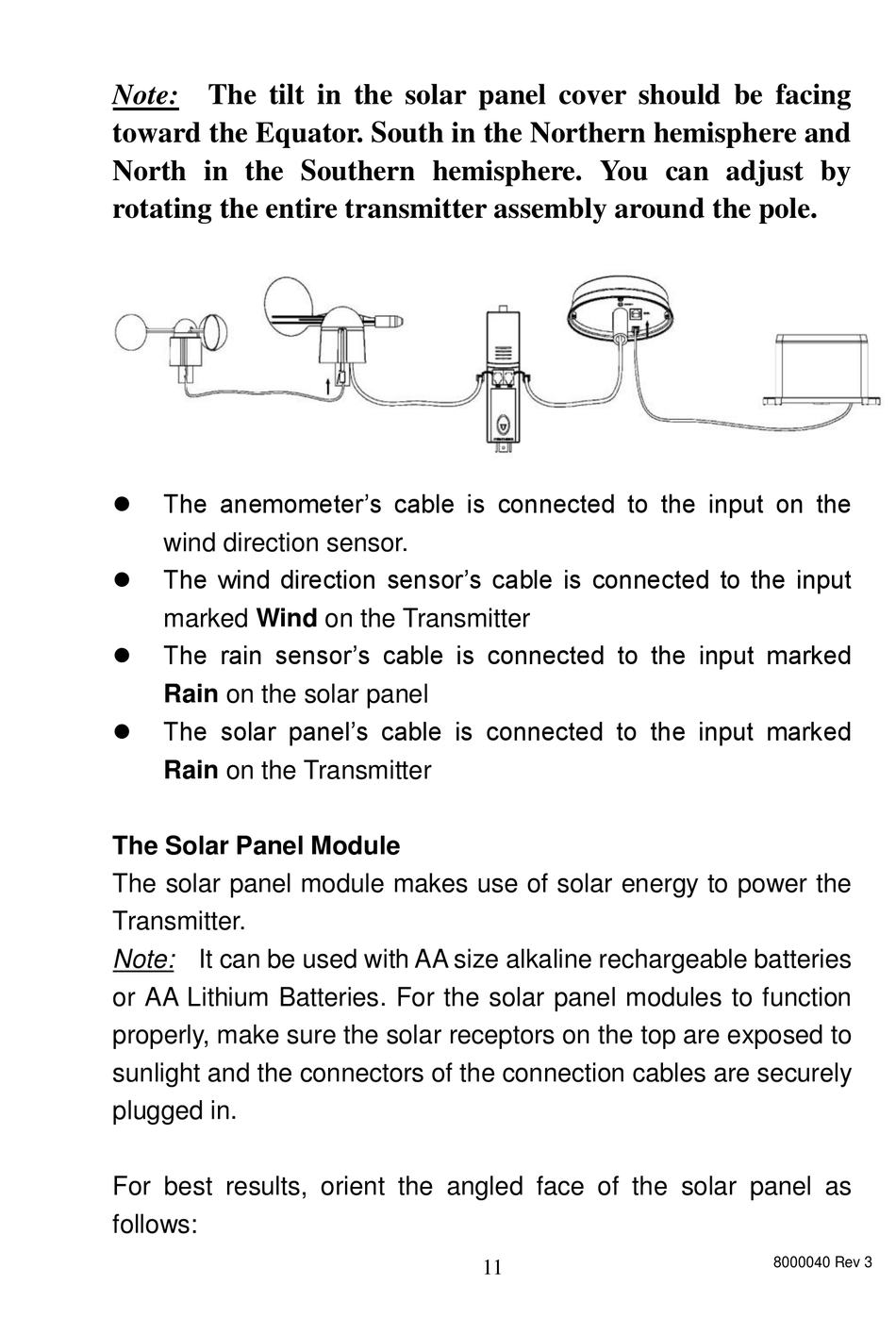

Tycon Power Systems TP2700WC Operation Manual page 11

Note: The tilt in the solar panel cover should be facing
toward the Equator. South in the Northern hemisphere and
North in the Southern hemisphere. You can adjust by
rotating the entire transmitter assembly around the pole.
 The anemometer's cable is connected to the input on the
wind direction sensor.
 The wind direction sensor's cable is connected to the input
marked Wind on the Transmitter
 The rain sensor's cable is connected to the input marked
Rain on the solar panel
 The solar panel's cable is connected to the input marked
Rain on the Transmitter
The Solar Panel Module
The solar panel module makes use of solar energy to power the
Transmitter.
Note: It can be used with AA size alkaline rechargeable batteries
or AA Lithium Batteries. For the solar panel modules to function
properly, make sure the solar receptors on the top are exposed to
sunlight and the connectors of the connection cables are securely
plugged in.
For best results, orient the angled face of the solar panel as
follows:
