Summary of Contents for Fujitsu Siemens Computers SCENICVIEW B17-5

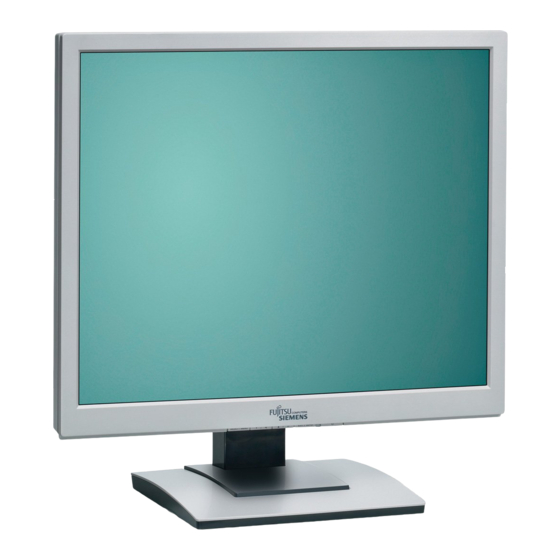

- Page 1 Professional Monitor English Operating Manual SCENICVIEW B17-5/B19-5...
- Page 2 Are there ..any technical problems or other questions that you would like help with? Please contact: • our Hotline/Help Desk (refer to the enclosed Help Desk List or go to: "www.fujitsu-siemens.com/support/") • your sales partner • your sales office The latest information on our products, tips, updates etc.
- Page 4 This manual was produced byXerox Global Services Published by Fujitsu Siemens Computers GmbH AG04/08 Edition1 Order no.: A26361-K1255-Z120-1-7619...
-
Page 5: Table Of Contents
SCENICVIEW B17-5/B19-5 Operating Manual Your LCD screen... Important notes Getting started Operation Troubleshooting Notes regarding the DIN EN ISO 13406-2 standard Technical data... - Page 6 VESA, DDC and DPMS are registered trademarks of Video Electronics Standards Association. Copyright © Fujitsu Siemens Computers GmbH2008 All rights reserved, including in particular rights of translation, reproduction by printing, copying or similar methods, in part or in whole. Non-compliance is subject to compensation for damages.
- Page 7 Contents Contents Your LCD screen............... . Target group .
- Page 8 Contents A26361-K1255-Z120-1-7619, edition 1...
-
Page 9: Your Lcd Screen
Your LCD screen... Your LCD screen... has a whole range of useful features and functions, e.g.: • TFT display (Thin Film Transistor; active matrix) minimal space requirements thanks to slim casing • • optimum ergonomic characteristics (totally distortion-free, excellent picture definition and colour purity right into the corners) •... -
Page 10: Further Information
Your LCD screen... Further information Details of how you set the resolution and refresh rate are provided in the documentation for your display adapter and the associated driver software. For ergonomic reasons, a screen resolution of 1280 x 1024 pixels is recommended. Because of the technology used (active matrix) an LCD monitor provides a totally flicker-free picture even with a refresh rate of 60 Hz. -
Page 11: Important Notes
Important notes Important notes Importantnotes Notes In this chapter you will find information regarding safety which it is essential to take note of when working with your device. Safety instructions This device complies with the relevant safety regulations for data processing equipment, including electronic office machines for use in an office environment. -
Page 12: Power Cable
Important notes • The device must only be operated in landscape mode (0°) and portrait mode (90°). The control buttons are located in the middle of the bottom of the monitor in landscape mode (0°) and at the left-hand side of the monitor in portrait mode (90°). •... -
Page 13: Ce Marking
These savings could also prevent the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million automobiles. As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product meets the Energy Star guidelines for energy efficiency. -
Page 14: Disposal And Recycling
Fax: +32 2 / 706 86 13 collection points, see: Fax: +49 5251 / 81 80 15 E-mail: info@recupel.be "http://www.swico.ch". "http://www.fujitsu-siemens.de "http://www.recupel.be" /wvm" Asia Taiwan: Environmental Fujitsu Siemens Computers Inc. Protection 1250E. Arques Administration Avenue Sunnyvale, Executive Yuan R.O.C. CA 94085 U.S.A. Contact: Schroettle-Henning, "http://recycle.epa.gov.tw" Bernd Phone No.: (408) 834-0306... -
Page 15: Getting Started
Getting started Getting started Unpacking and checking the delivery The display surface of the device is sensitive to pressure and scratches. Always hold the device by the casing! The complete device package includes: • one monitor • one data cable (D-SUB) •... -
Page 16: Setting Up An Ergonomic Video Workstation
Getting started Setting up an ergonomic video workstation ► Do not position the video workstation opposite a window (1). ► Position the monitor outside the reach of a light source (1). ► Position the keyboard where it is easiest to reach (1). A26361-K1255-Z120-1-7619, edition 1... -
Page 17: Adjusting The Height
Getting started ► Position the monitor so that the eye distance to the screen (1) is around 50 cm. 50 cm ► Position the monitor for optimum viewing (1). The monitor should under no circumstances fall outside the permissible viewing space (2). Depending on the situation, it may be advisable to use a swivel arm or wall bracket (VESA FPMPMI), which are available from specialist dealers. -
Page 18: Adjusting Portrait Format
Getting started Adjusting portrait format The monitor can be rotated from horizontal format (landscape mode) into vertical format (portrait mode). ► Grasp the monitor with both hands on the right and left edge of the casing, move it into the highest position and turn it clockwise until it is in the portrait position. For you to be able to display the screen contents in portrait mode, your graphics card will also need to support this function or you will need to use special software. -
Page 19: Connecting The Device
Getting started Connecting the device Please observe the safety information in "Important notes", Page CE conformance and optimum picture quality are guaranteed only if you use the data cables supplied. ► Switch off the monitor and the computer. ► Disconnect the power plug from the computer. A26361-K1255-Z120-1-7619, edition 1... -
Page 20: Connecting Cables To The Monitor
Getting started Connecting cables to the monitor The monitor ports are protected by a cover. The supplied data cables have two 15-pin D-SUB connectors or two 24-pin DVI connectors for connection to the monitor and to the computer. Information on the computer connections and interfaces is contained in the operating manual for the computer. -
Page 21: Connecting Cables To The Computer
Getting started Connecting cables to the computer Information on the computer connections and interfaces is contained in the operating manual for your computer. ► Connect the data cable to the (active) monitor port on the computer and secure the plug-in connection by tightening the safety screws. ►... -
Page 22: Operation
Operation Operation Switching the device on and off The ON/OFF switch on the front of the monitor is used for switching the monitor on and off. Press the buttons from the bottom up. 1 = Buttons for the OSD menu (On-Screen 3 = ON/OFF switch Display) 2 = Power indicator... -
Page 23: Notes On Power Management
Operation Notes on power management If your computer is equipped with power management, the monitor can support this function fully. The monitor does not distinguish between the individual power management modes of the computer (standby mode, suspend mode and OFF mode), as it is capable of immediately switching into the mode with the highest energy-saving effect. -
Page 24: Changing The Monitor Settings With The Buttons Of The Control Panel
Operation Changing the monitor settings with the buttons of the control panel The buttons of the control panel have two functions. With the OSD menu not activated, you can make the following settings directly: EXIT / AUTO SELECT/ MENU INPUT 1 = Buttons for the OSD menu (On-Screen 3 = ON/OFF switch Display) -
Page 25: Changing The Monitor Settings Using The Osd Menu
Operation Locking the OSD menu The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor settings. ► Press and hold the SELECT/MENU button for a few seconds while you switch on the monitor with the ON/OFF switch. The Action was executed message appears. -
Page 26: Osd Menu Functions
Operation ► Press the Forwards / Mute button or the Back / button to highlight a INPUT different icon (e.g. Image adjust). ► Press the SELECT / MENU button to select the highlighted icon. The Image adjust setting window is displayed. The first function H-position is selected. -
Page 27: Adjusting The Brightness And Contrast
Operation Adjusting the brightness and contrast Call up the Brightness/Contrast setting window Brightness Set the brightness of the display With this function you change the brightness of the background lighting. Contrast Set the contrast of the display With this function you modify the contrast of bright colour tones. Black level Set the brightness of the display With this function you modify the contrast of dark colour tones. -
Page 28: Setting Colour Temperature And Colours
Operation Setting colour temperature and colours Call the Colour setting window Select the colour temperature The "warmth" of the screen colours is set using the colour temperature. The colour temperature is measured in K (= Kelvin). You can choose between sRGB, 6500 K, 9300 K, Native and Custom Colour. -
Page 29: Displaying Information
Operation Adjusting the functions in the Advanced menu Calling up the Advanced window Input select Selecting the input signal This function allows you to switch the monitor from analog to digital mode and vice versa when two signal sources are connected, provided the graphics card supports this function. -
Page 30: Troubleshooting
Troubleshooting Troubleshooting Should an error occur, first check the following points. If the distortion is still not eliminated, the monitor should, if possible, be checked on another computer. If you are unable to solve the problem, please inform our help desk. Having this problem? Check the following points: No screen display... - Page 31 Troubleshooting Having this problem? Check the following points: Picture disturbances (vertical lines) ► Press the EXIT / AUTO button to perform auto-adjustment of the screen. Picture disturbances (horizontal lines, picture ► Press the button to perform EXIT / AUTO noise) auto-adjustment of the screen.
-
Page 32: Notes Regarding The Din En Iso 13406-2 Standard
Notes regarding the DIN EN ISO 13406-2 standard Notes regarding the DIN EN ISO 13406-2 standard Permanently unlit or lit pixels The standard of production techniques today cannot guarantee an absolutely fault-free screen display. A few isolated constant lit or unlit pixels (picture elements) may be present. The maximum permitted number of pixels faults is stipulated in the international standard ISO 13406-2 (Class II). -
Page 33: Technical Data
Technical data Technical data Condensation is not permissible either in the rated range of operation or in the limit range of operation. B17-5 B19-5 Dimensions and weight Visible diagonal 43 cm 48 cm Dot pitch 0.264 mm 0.294 mm Image size Width 337.9 mm 376.3 mm... -
Page 34: Vesa-Ddc-Compatible Vga Interface
Technical data Overall power draw Normal operation < 32 W in normal mode (17") < 37 W in normal mode (19") Power saving mode < 1 W in power saving mode Sound output 1.0 W left; 1.0 W right Ambient conditions Environment class 3K2, IEC 721 Rated range of operation 15 °C .. -
Page 35: Most Frequent Operating Modes
Technical data Most frequent operating modes Horizontal frequency Refresh rate Screen resolution 31.5 kHz 70 Hz 720 x 400 31.5 kHz 60 Hz 640 x 480 37.5 kHz 75 Hz 640 x 480 37.9 kHz 60 Hz 800 x 600 46.9 kHz 75 Hz 800 x 600... -
Page 36: Dvi-D Port
Technical data DVI-D port Meaning TMDS Data2– TMDS Data2+ TMDS Data 2/4 Shield not connected not connected DDC Clock DDC Data Analog Vertical Sync TMDS Data1– TMDS Data1+ TMDS Data 1/3 Shield not connected not connected +5V Power Ground Hot Plug Detect TMDS Data0–...
