Samsung AQV09VBA Service Manual page 26

No Parts
2 Ass'y Control Out
Samsung Electronics
141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com

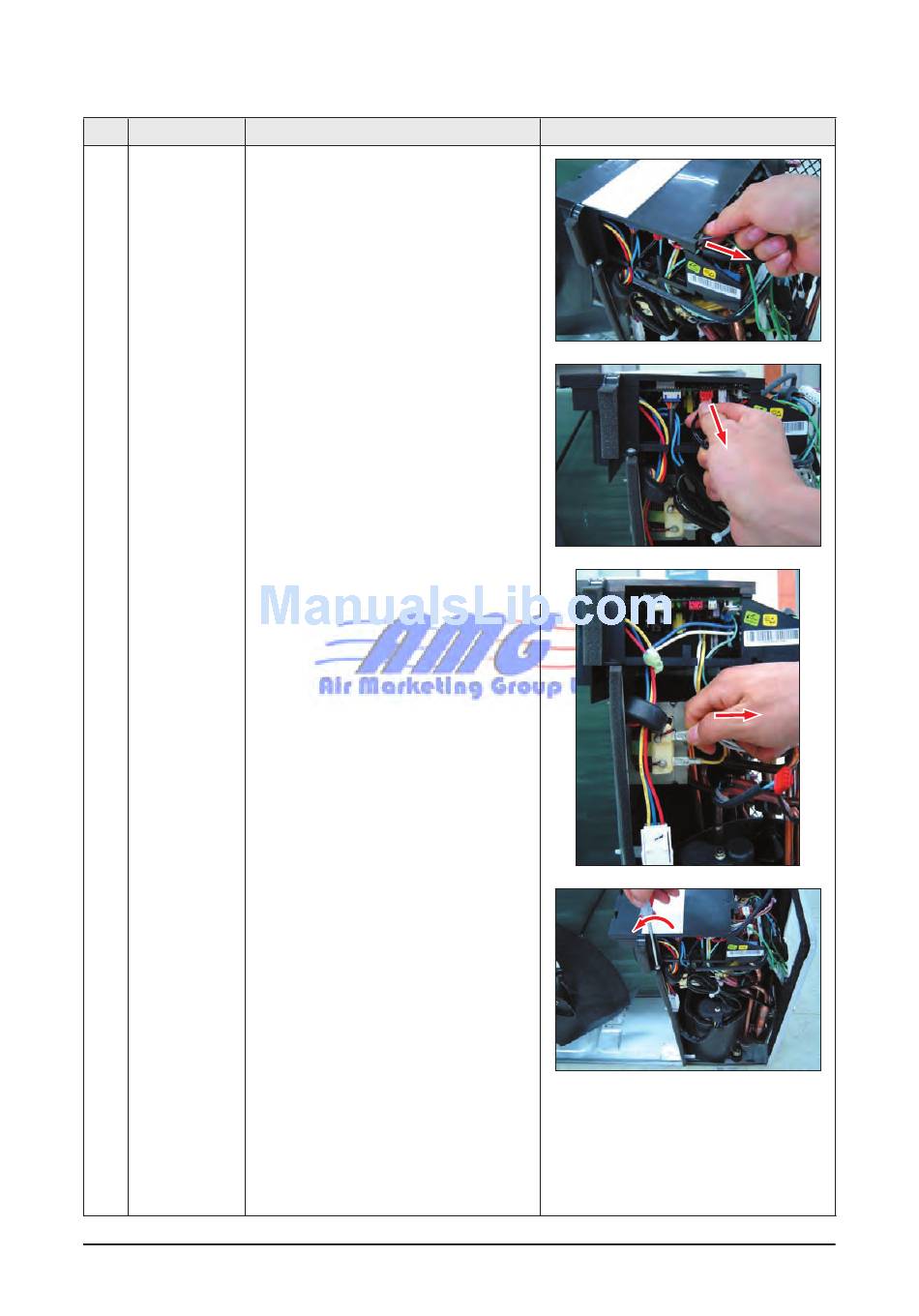

Procedure
1) Detach the Motor Wire from the PCB of
Ass'y Control Out.
2) Detach several connectors from the PCB of
Ass'y Control Out.
3) Detach 2 Connect Wires from Reactor.
4) Loosen 1 screw(CCW) fixed to assemble
Ass'y Control Out with Partition.
(Use +Screw Driver.)
