Disassembly and Reassembly
No
Parts
4-8
141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com
Procedure

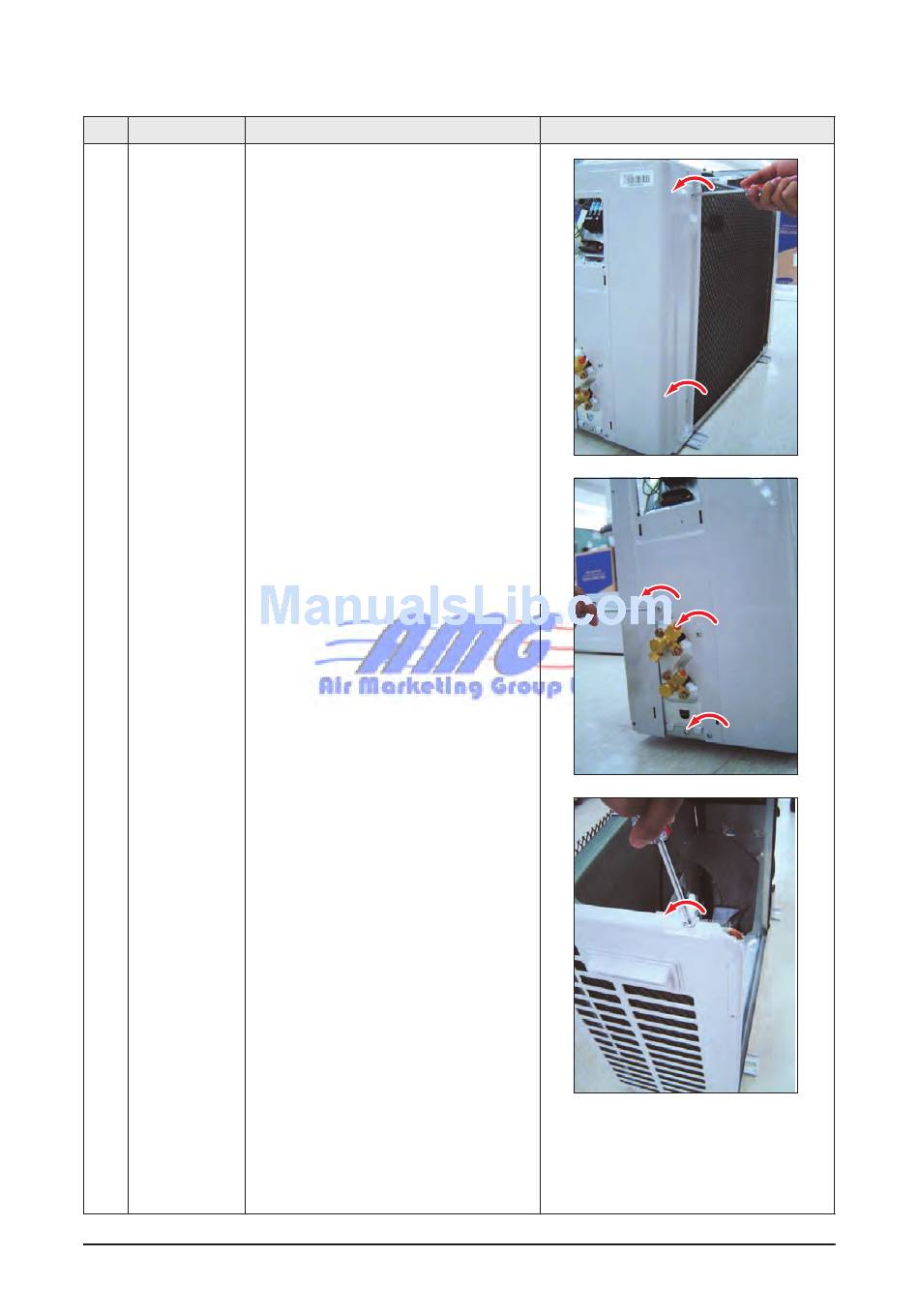

5) Loosen 2 fixing screws(CCW) on the rear side
of Cabinet-Side RH. (Use +Screw Driver.)
6) Loosen 3 screws(CCW) fixed to assemble
Bracket Valve with Cabinet-Side RH.
(Use +Screw Driver.)
7) Loosen 2 fixing screws(CCW) of Cabinet
Side LF. (Use +Screw Driver.)
