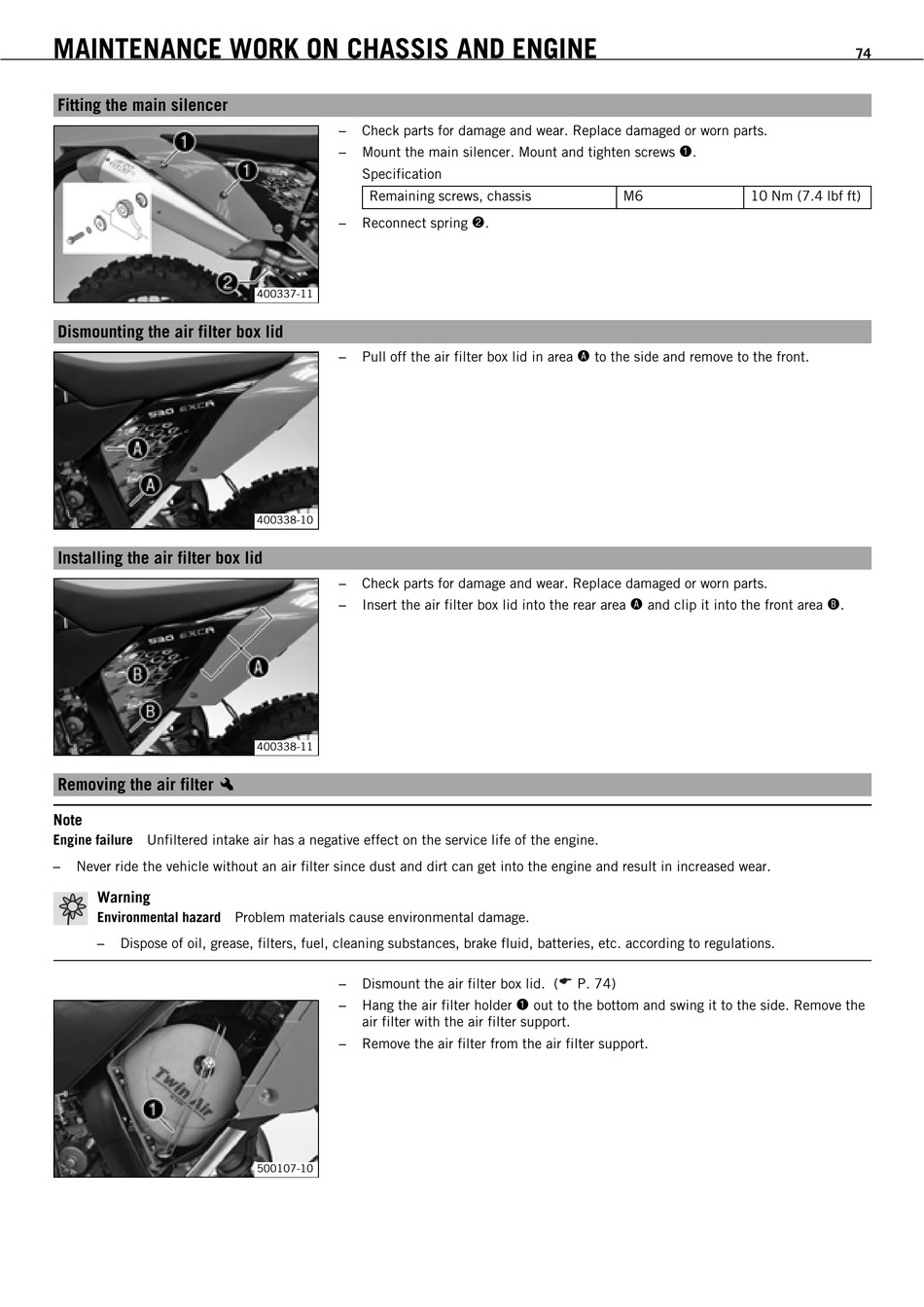

MAINTENANCE WORK ON CHASSIS AND ENGINE
Fitting the main silencer
Dismounting the air filter box lid
Installing the air filter box lid
x
Removing the air filter
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Problem materials cause environmental damage.
Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
Check parts for damage and wear. Replace damaged or worn parts.
Mount the main silencer. Mount and tighten screws
Specification
Remaining screws, chassis
Reconnect spring
400337-11
Pull off the air filter box lid in area
400338-10
Check parts for damage and wear. Replace damaged or worn parts.
Insert the air filter box lid into the rear area
400338-11
Dismount the air filter box lid. (
Hang the air filter holder
air filter with the air filter support.
Remove the air filter from the air filter support.
500107-10
M6
.
to the side and remove to the front.
and clip it into the front area
P. 74)
out to the bottom and swing it to the side. Remove the
74
.
10 Nm (7.4 lbf ft)
.
