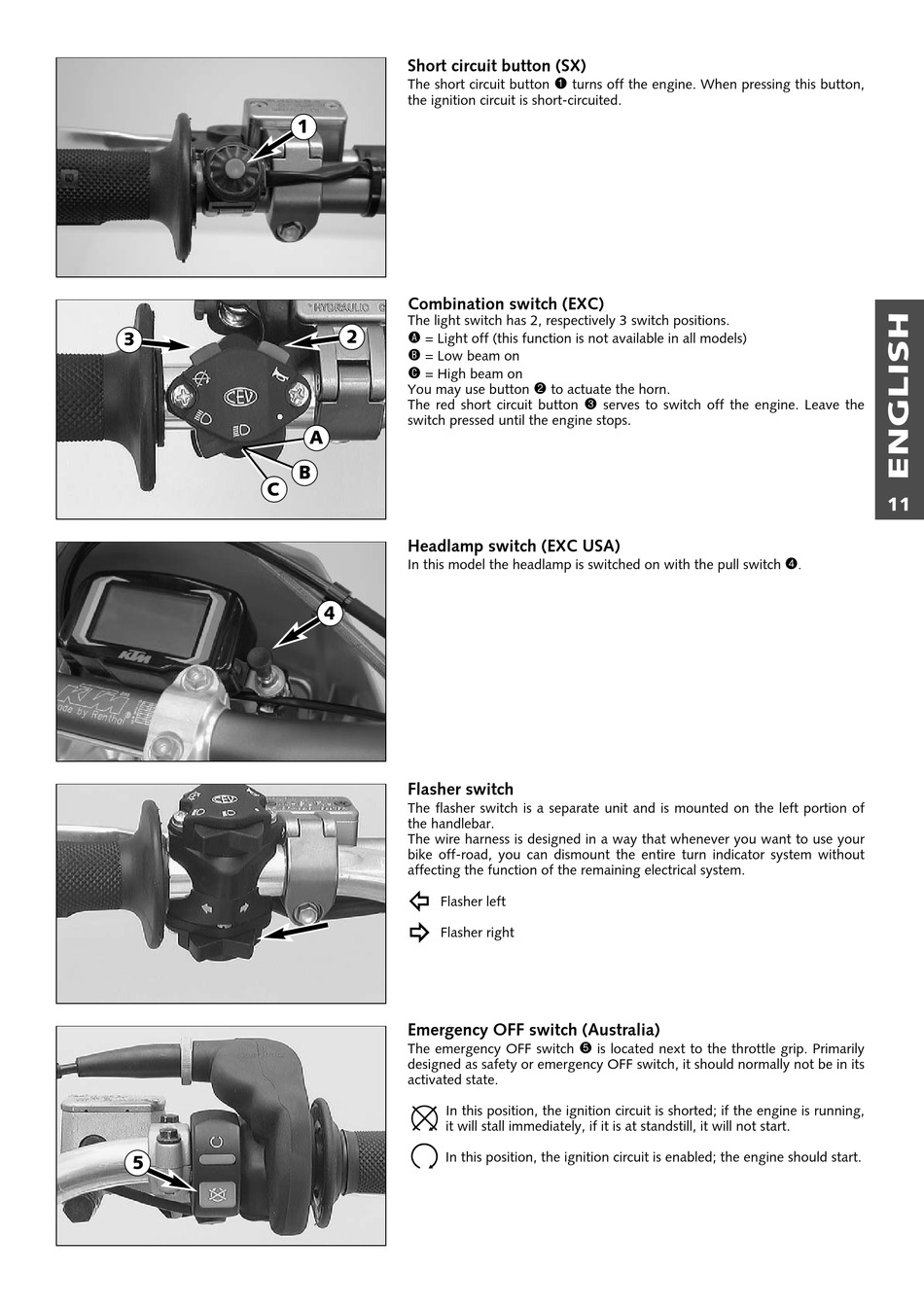

Short circuit button (SX)

The short circuit button
the ignition circuit is short-circuited.

Combination switch (EXC)

The light switch has 2, respectively 3 switch positions.
2
A = Light off (this function is not available in all models)
B
= Low beam on
C
= High beam on
You may use button
The red short circuit button
switch pressed until the engine stops.
A
B

Headlamp switch (EXC USA)

In this model the headlamp is switched on with the pull switch
4

Flasher switch

The flasher switch is a separate unit and is mounted on the left portion of
the handlebar.
The wire harness is designed in a way that whenever you want to use your
bike off-road, you can dismount the entire turn indicator system without
affecting the function of the remaining electrical system.
Flasher left
Flasher right

Emergency OFF switch (Australia)

The emergency OFF switch
designed as safety or emergency OFF switch, it should normally not be in its
activated state.
In this position, the ignition circuit is shorted; if the engine is running,
it will stall immediately, if it is at standstill, it will not start.
In this position, the ignition circuit is enabled; the engine should start.
1
turns off the engine. When pressing this button,
2
to actuate the horn.
3
serves to switch off the engine. Leave the
5
is located next to the throttle grip. Primarily
