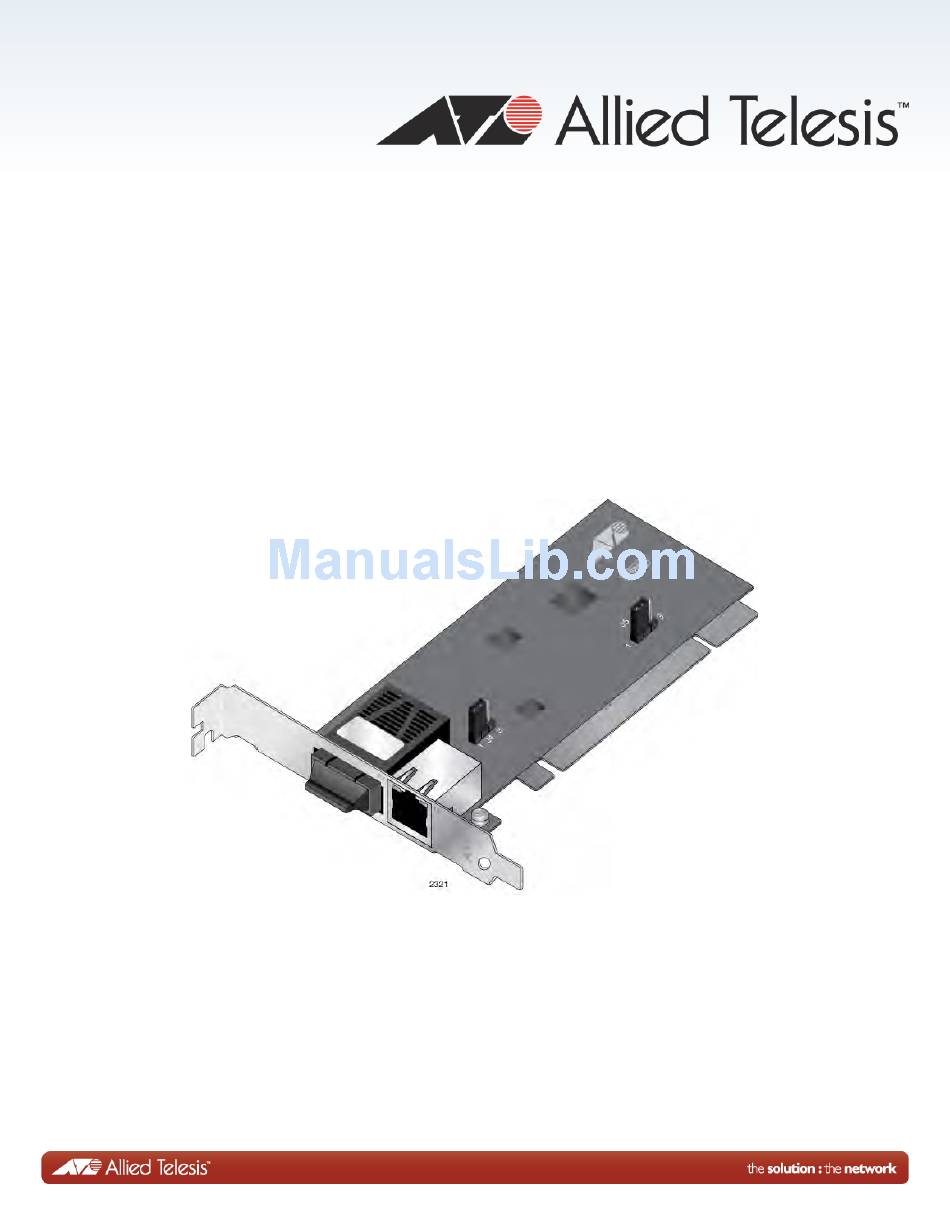

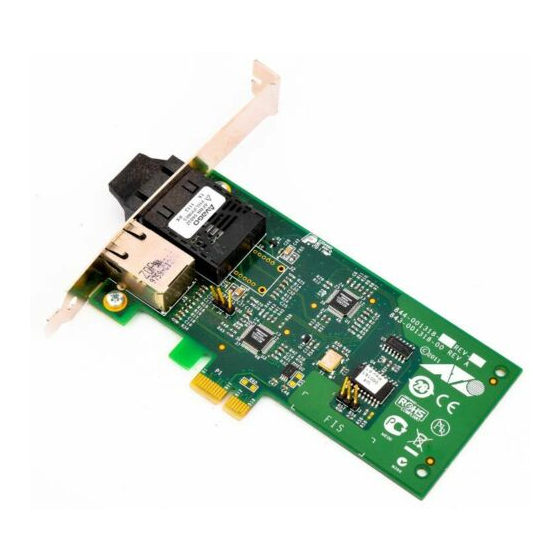

Page 1: Installation Guide
AT-MC102XLPCI AT-MC102XLPCIe 100TX to 100FX(SC) PCI & PCI Express Bus Media Converter Installation Guide 613-001527 Rev. B... - Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...
-
Page 3: Electrical Safety And Emissions Standards
Electrical Safety and Emissions Standards This product meets the following standards. U.S. Federal Communications Commission Declaration of Conformity Manufacturer Name: Allied Telesis, Inc. Declares that the product: Media Converter Model Numbers: AT-MC102XLPCI, AT-MC102XLPCIe This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. - Page 4 Translated Safety Statements Important: The indicates that a translation of the safety statement is available in a PDF document titled “Translated Safety Statements” posted on the Allied Telesis website at www.alliedtelesis.com/support.
-
Page 5: Table Of Contents
Contents Preface ................................11 Safety Symbols ............................12 Contacting Allied Telesis..........................13 Chapter 1: Product Overview ........................15 Key Features.............................. 16 Status LEDs ............................... 17 Auto MDI/MDIX ............................18 Auto-Negotiation ............................19 MissingLink & Link Test Features ......................21 MissingLink Feature ..........................21 Link Test Feature.......................... - Page 6 Contents...
- Page 7 Figure 10. Inserting the Adapter with a High-profile Bracket ....................32 Figure 11. Securing the Adapter with a High-profile Bracket....................33 Figure 12. Connecting the Fiber Optic Cable to the AT-MC102XLPCI Media Converter ........... 34 Figure 13. Connecting the Twisted-pair Cable to the AT-MC102XLPCI Media Converter ..........35...
- Page 8 List of Figures...
- Page 9 Tables Table 1. LED Functions ..............................17 Table 2. Auto-Negotiation Configuration- Jumper J4 Positions ..................20 Table 3. MissingLink & Link Test - Jumper J5 Positions ....................22 Table 4. Physical Specifications ............................41 Table 5. Operating and Storage Conditions ........................41 Table 6. Electrical Rating ..............................42 Table 7.
- Page 10 Tables...
-
Page 11: Preface
Preface This guide contains instructions on how to install an AT-MC102XLPCI & AT-MC102XLPCIe 100Mbps Media Converters. This preface contains the following sections: “Safety Symbols” on page 12 ❒ “Contacting Allied Telesis” on page 13 ❒... -
Page 12: Safety Symbols
Preface Safety Symbols This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. -
Page 13: Contacting Allied Telesis
AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at www.alliedtelesis.com/support. You can find links for... - Page 14 Preface...
-
Page 15: Chapter 1: Product Overview
PCI and PCI Express connectors. Note For simplicity in the rest of this manual, the AT-MC102XLPCI & AT- MC102XLPCIe 100Mbps Media Converters will be referred to as AT- MC102XLPCI Media Converter. -
Page 16: Key Features
This media converter operates at 100 Mbps and is configured from the factory for Auto-Negotiation mode. The AT-MC102XLPCI Media Converter is designed to be installed in a PCI bus slot of a PC and does not require any software configuration or management. -
Page 17: Status Leds
AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide Status LEDs The AT-MC102XLPCI Media Converter has two status LEDs associated with the 100Base-TX twisted-pair port and the 100Base-FX fiber optic port. The location of these LEDs is shown in Figure 2. -
Page 18: Auto Mdi/Mdix
PC, router, or bridge is typically wired as MDI, while the twisted- pair port on a switch or hub is usually MDI-X. The AT-MC102XLPCI Media Converter features automatic MDI/MDI-X. The 100Base-TX port automatically determines the configuration of the port on the device to which it is connected and then configures itself appropriately. -
Page 19: Auto-Negotiation
The 100FX port usually operates in Full Duplex mode. The goal of the Auto-Negotiation feature is to avoid a duplex mismatch between the copper and fiber ports of the AT-MC102XLPCI by ensuring that the twisted-pair port and its link partner are also configured to operate in Full Duplex mode. -
Page 20: Table 2. Auto-Negotiation Configuration- Jumper J4 Positions
Auto-Negotiation feature enabled Note If you choose to remove the jumper, Allied Telesis recommends that you re-install the jumper on the center pin (2) only, 90 degrees from the pins 1 and 3 so that it does not get lost. -
Page 21: Missinglink & Link Test Features
For example, if the twisted-pair cable to the 100Base-TX port on the media converter were to fail and the link went down, the AT-MC102XLPCI would respond by dropping the link on the 100Base-FX fiber optic port. In this way, the media converter notifies the end-node connected to the fiber optic port that the connection on the twisted-pair port has been lost. -
Page 22: Configuring Missinglink & Link Test Features
Chapter 1: Product Overview Configuring The MissingLink & Link Test jumper (J5) on the AT-MC102XLPCI assembly is configured at the factory with the MissingLink feature enabled. MissingLink & By reconfiguring this jumper, the link Test function can be enabled (and Link Test MissingLink disabled). -
Page 23: Chapter 2: Installation
Chapter 2 Installation This chapter contains the following installation procedures for the AT-MC102XLPCI Media Converter. "Reviewing Safety Precautions" on page 24 ❒ "Planning the Installation" on page 26 ❒ "Unpacking the Media Converter" on page 26 ❒ "Pre-Installation Checklist" on page 26 ❒... -
Page 24: Reviewing Safety Precautions
Chapter 2: Installation Reviewing Safety Precautions Please review the following safety guidelines before installing the media converter. Note indicates that a translation of the safety statement is available in a PDF document titled Translated Safety Statements. Warning Class 1 Laser product. Warning Do not stare into the laser beam. - Page 25 AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide Warning The adapter is being installed in a system that operates with voltages that can be lethal. Before you remove the cover of your system, you must observe the following precautions to protect yourself and to prevent damage to the system components: –...
-
Page 26: Pre-Installation Checklist
100Base-TX Ports” on page 43 for the twisted- pair specifications. Refer to Table 12, “Fiber Optic Launch Power” on page ❒ 44 for the fiber optic port specifications. Unpacking the To unpack the AT-MC102XLPCI Media Converter, perform the following procedure: Media Converter... -
Page 27: Figure 5. At-Mc102Xlpci Media Converter Items
PCI bracket Figure 5. AT-MC102XLPCI Media Converter Items 3. Holding the AT-MC102XLPCI by the edges, remove it from its shipping package and place it on an anti-static surface. 4. Check the media converter for visible signs of damage, particularly on... -
Page 28: Replacing The Bracket
Chapter 2: Installation Caution Do not attempt to install a damaged AT-MC102XLPCI media converter. If it is damaged, contact Allied Telesis. Replacing the The AT-MC102XLPCI Media Converter is shipped with the low-profile bracket attached to the adapter and a separate standard-profile bracket. -
Page 29: Configuring Auto-Negotiation
If you choose to move this jumper to reconfigure the Auto-Negotiation feature, it must be done prior to the installation of the AT-MC102XLPCI assembly into your computer chassis. Refer to Table 2 on page 20 for a functional description if this jumper (J4). To disable Auto-Negotiation, install jumper J4 between pins 2 and 3. -
Page 30: Configuring Missinglink & Link Test
Chapter 2: Installation Configuring The MissingLink feature is enabled by default from the factory with a jumper (J5) pre-installed between pins 1 and 2 on the AT-MC102XLPCI MissingLink & assembly. Refer to Figure 4 for the location of this jumper. -
Page 31: Installing A Network Media Converter
Note To perform this procedure, you need to provide a Phillips-head screw driver. To install an AT-MC102XLPCI Media Converter perform the following procedure: 1. Read the "Reviewing Safety Precautions" on page 24 and follow the "Pre-Installation Checklist" on page 26 before proceeding to the next step. -
Page 32: Figure 9. Removing The Faceplate From Pci Slot
Chapter 2: Installation 6. Depending on which product you are installing, select and empty non- shared PCI or PCIe slot on the computer motherboard. 7. Remove the faceplate that is associated with the card slot you have identified for installation. See Figure 9. Figure 9. -
Page 33: Figure 11. Securing The Adapter With A High-Profile Bracket
AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide Caution Do not use excessive force when seating the card, because this may damage the system or the adapter. If the card resists seating, remove it from the system, realign it, and try again. -
Page 34: Connecting The Network Cables
2. Connect the opposite end of the fiber optic cable to the link partner of the AT-MC102XLPCI Media Converter. Note The TX port of the AT-MC102XLPCI should be connected to the RX port of the link partner. Similarly, the RX port of the AT-MC102XLPCI should be connected to the TX port of the link... -
Page 35: Figure 13. Connecting The Twisted-Pair Cable To The At-Mc102Xlpci Media Converter
4. Connect the other end of the twisted-pair cable to the link partner of the AT-MC102XLPCI Media Converter. After you connect the system to the network and power is supplied, the AT-MC102XLPCI Media Converter attempts to establish a link at 100 Mbps. Note... - Page 36 Chapter 2: Installation...
-
Page 37: Chapter 3: Troubleshooting
Chapter 3 Troubleshooting The following guidelines are provided to test and troubleshoot the installation in the event a problem occurs: Twisted-Pair LED ❒ Fiber Port LED on page 39 ❒ Link Test on page 40 ❒... -
Page 38: Twisted-Pair Led
(both set to Auto Negotiate OR both set to 100Mbps Full Duplex). 6. If you are still experiencing problems, refer to Contacting Allied Telesis on page 13 or visit our web site at www.alliedtelesis.com/support. -
Page 39: Fiber Port Led
Refer to Fiber Optic Port Specifications on page 43 for more information. 9. If you are still experiencing problems, refer to Contacting Allied Telesis on page 13 or visit our web site at www.alliedtelesis.com/support. -
Page 40: Link Test
9. If the LEDs are green, the unit is working properly and there is a problem elsewhere on the segment. 10. If the LEDs are OFF, , refer to Contacting Allied Telesis on page 13 or visit our web site at www.alliedtelesis.com/support. -
Page 41: Technical Specifications
Appendix A Technical Specifications This appendix contains the following specifications Physical Specifications ❒ Operating and Storage Conditions ❒ Electrical Rating on page 42 ❒ Agency Certifications on page 42 ❒ Environmental Compliance on page 42 ❒ RJ-45 Twisted-Pair Port Specifications on page 43 ❒... -
Page 42: Table 6. Electrical Rating
Chapter : Technical Specifications Electrical Rating Table 6. Electrical Rating Input Supply Voltage 3.3 V DC Power Consumption 1.65 Watts Maximum Agency Certifications Table 7. Agency Certifications RFI Emissions FCC Part 15 Class B, EN55022 Class B, CISPR 22 Class B, C-TICK Immunity EN55024 Electrical Safety... -
Page 43: Figure 14. Rj-45 Connector And Port Pin Layout
AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide RJ-45 Twisted-Pair Port Specifications This section contains the following RJ-45 twisted pair port specifications: Cable Requirements on page 43 ❒ RJ-45 Twisted- Pair Port Pinouts on page 43 ❒ Cable The cable requirements of the port are given in Table 9. -
Page 44: Table 11. Fiber Optic Cable Loss Budget
Chapter : Technical Specifications Fiber Optic Port Specifications The cable requirements of the fiber port are given in Table 11. Table 11. Fiber Optic Cable Loss Budget Maximum Maximum Type of Fiber Optic Operating Allowable Loss Cable Distance Budget 50/125 or 62.5/125 2 km (1.2 mi) 13 dB at 1310 nm micron multimode... -
Page 45: Table 14. Fiber Optic Cable Distance
AT-MC102XLPCI & AT-MC102XLPCIE 100Mbps Media Converter Installation Guide Table 14. Fiber Optic Cable Distance Max. Min. Power / Max. Distance Fiber Type Distance Link Spec. Spec. Budget 50/125 MMF 12.8 dB 2 km (1.2 mi) 62.5/125 MMF 1. MMF = Multimode Fiber / SMF = Single-mode Fiber 2. - Page 46 Chapter : Technical Specifications...
