MULTIQUIP GA6HR Operating Manual page 26

W
G
120VAC
X
L5-30R
120V
120
V

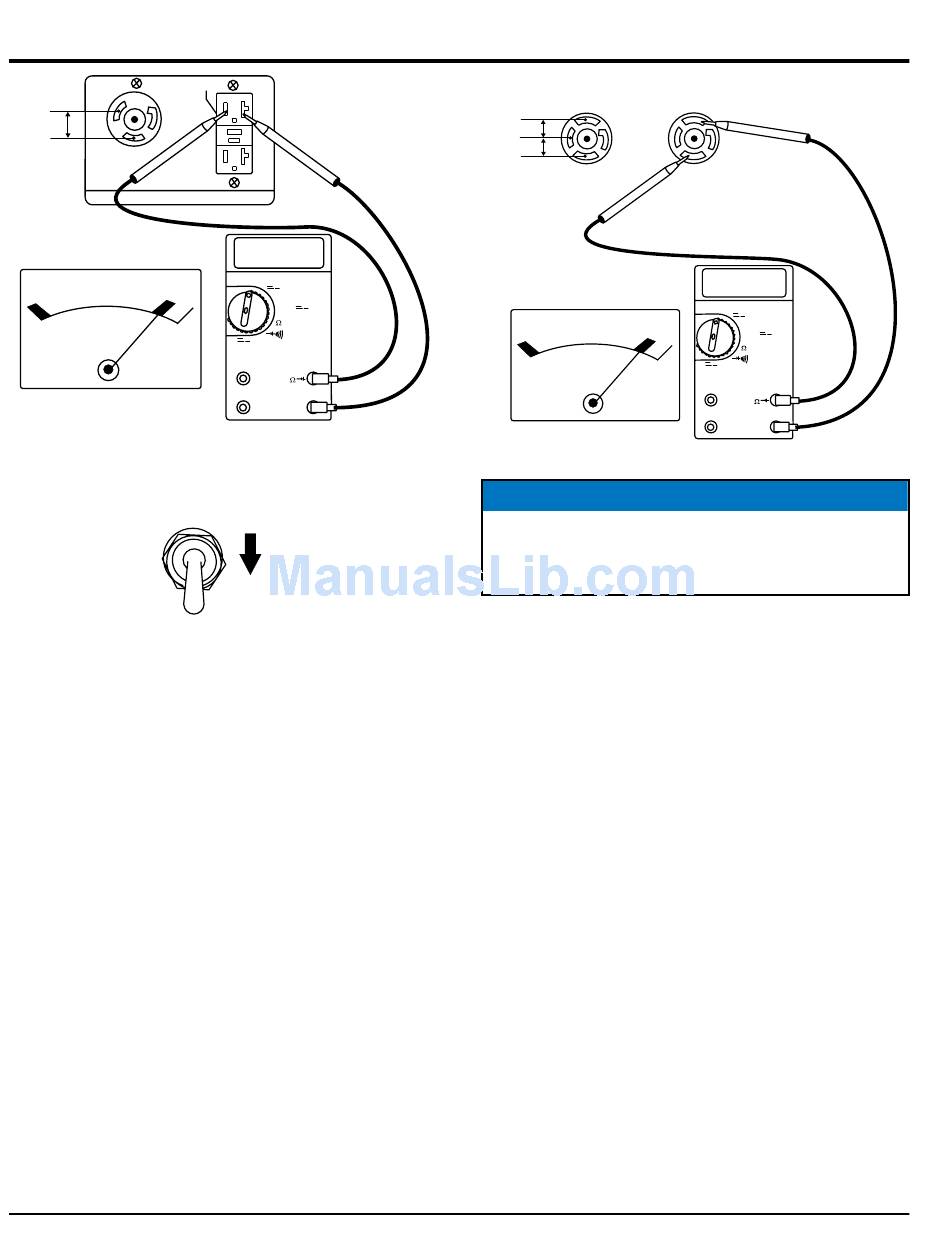

Figure 23. 120V Twist-Lock/GFCI Receptacles
13. Place the full power switch (Figure 24) in the 240/120V
position (down).
240/120V
Figure 24. Full Power Switch 240/120V Position
14. Read voltmeter on front panel of generator (Figure 25)
and verify that 240 VAC is displayed. Using an external
voltmeter as shown in Figure 25, verify that 240 VAC is
present at the 120/240V, L14-30R twist-lock receptacle.
page 26 — ga6HR/ga6HRS 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (08/12/14)
GFCI
120 VAC
OFF
V~
V
300 mV
A~
A
V
COM
DOWN
(Down)
120VAC
L14-30R
X
L14-30R
120VAC
W
G W
120VAC
Y
240
V
Figure 25. 120/240V L14-30R Receptacle
NOTICE
When using a combination of dual receptacles, total
load should not exceed the rated capacity of the
generator.
15. Connecting of loads (power tools, lighting etc.) to the
generator receptacles can now be done.
OPERATION
240VAC
X
G
Y
240 VAC
