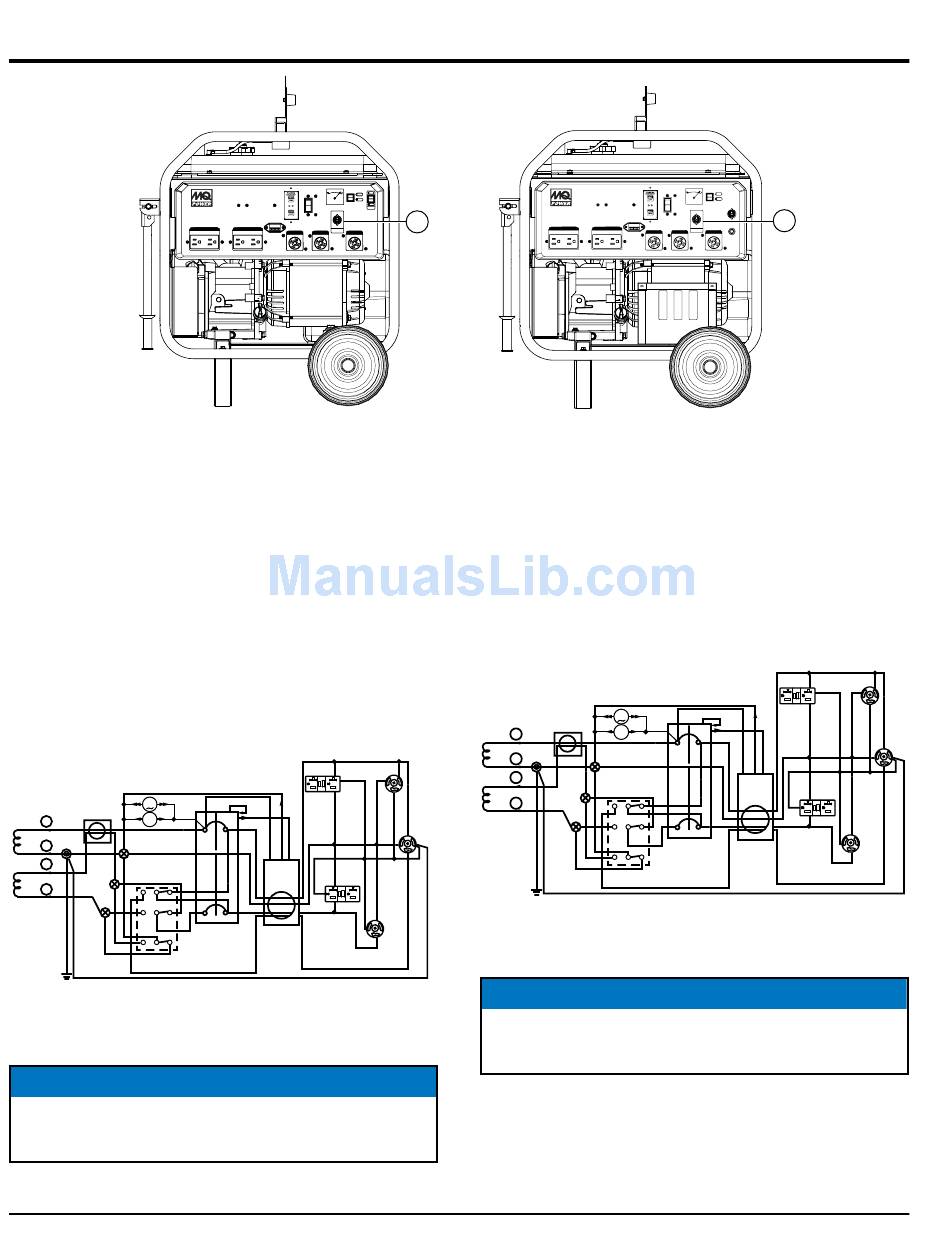

16. Full power switch – The generator is provided with a
full power switch. Figure 6 and Figure 7 show simplified
wiring diagrams of the dual voltage system.
When the full power switch is in the 120 volt (up)
position, you can access the full rated power of the
generator at 120 volts from the GFCI duplex receptacle
and the120V twist-lock receptacle, or a combination
of both receptacles as long as the total load does not
exceed the generating set capacity.
V
H
U1
W
V1
U2
SW 120V
V2
9
8
7
6
5
4
3
2
1
Figure 6. 120V Full Power Switch
Simplified Diagram (Up Position)
NOTICE
When the full power switch is in the 120V position, the
240V twist-lock receptacle cannot be used..
page 20 — ga6HR/ga6HRS 60 hz gENERATOR• OpERATiON ANd pARTs mANuAl — REv. #0 (08/12/14)
GA-6HR
GA-6HR
0N
0N
V
V
120
120
120
120
OFF
OFF
P
P
F
F
O
O
A
A
IDLE
W
W
U
U
E
E
L
L
AC VOLTMETER
AC VOLTMETER
CONTROL
OPERATION
OPERATION
R
R
T
T
SWITCH
SWITCH
120V
120V
MANUAL RESET
MANUAL RESET
AC CIRCUIT BREAKER
AC CIRCUIT BREAKER
GFCI PROTECTED
GFCI PROTECTED
QUARTZ
QUARTZ
240/120V
240/120V
120V
120V
120V
120V
FULL POWER
FULL POWER
SWITCH
SWITCH
120V
120V
120V
120V
120/240V
120/240V
20A
20A
20A
20A
20A
20A
30A
30A
30A
30A
Figure 5. Full Power Switch
CON1
CON3
CB
CON2
22
COmPONENTS (GENERATOR)
ON
ON
OFF
OFF
16
20A
When the switch is in the 240 volt (down) position, you can
access half of the rated power of the generating set at 120
volts from the GFCI duplex receptacle and up to half of the
rated power of the set at 120 volts from 120V twist-lock
receptacle; or full rated power of the set at 240 volts from
the 240V twist-lock receptacle.
U1
V1
U2
V2
CON5
Figure 7. 240/120V Full Power Switch
CON4
Simplified Diagram (Down Position)
NOTICE
When using a combination of receptacles, total load
should not exceed the rated capacity of the generator.
