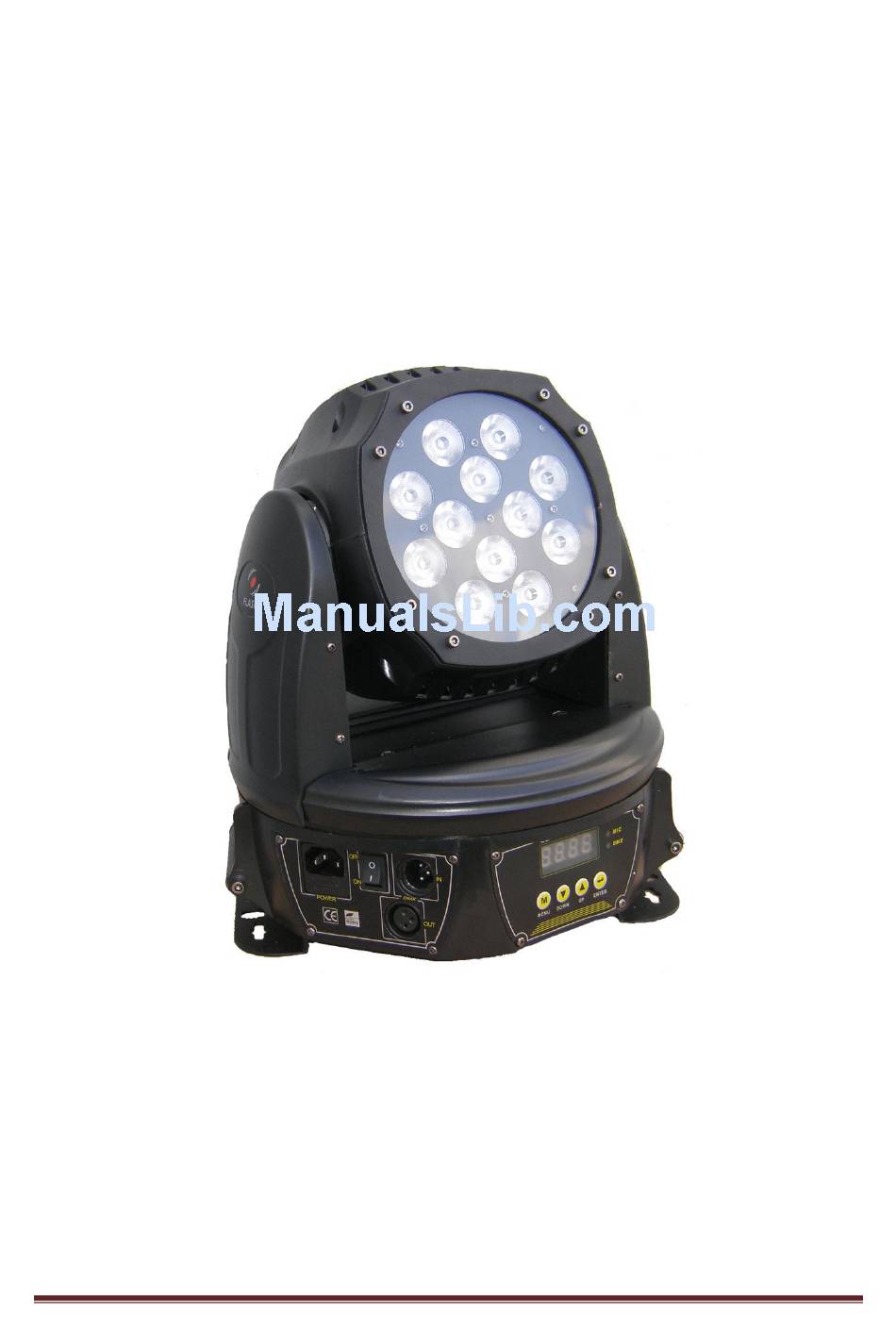

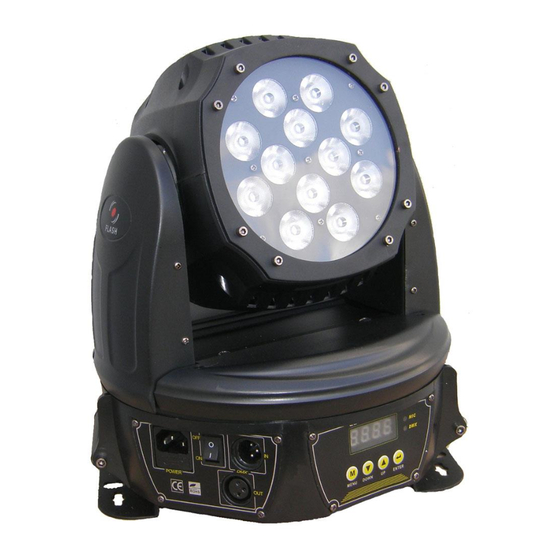

- Page 1 LED MOVING HEAD ZOOM 144W WASH 4in1 RGBW User Manual www.flash-butrym.pl Page 1...
-
Page 2: Table Of Contents
Table of contents 1. Preface 1.1 Packing list 1.2 Unpacking instructions 1.3 AC Power 1.4 Safety instructions 2. Introduction 2.1 Features 2.2 DMX channel 3. Setup 3.1 Fuse replacement 3.2 Fixture linking Data cabling DMX data cable 3.3 3-Pin to 5-Pin conversion chart 3.4 Setting up a DMX serial data link 3.5 Master/Slave fixture linking 3.6 orientation... -
Page 3: Preface
1. Preface 1.1 Packing list Product name quantity Mini Moving Head Light 1 pcs Unser Manual 1pcs 1.2 Unpacking instructions On receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are presented, and have been received in a good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows, sign of mishandling. -
Page 4: Introduction
Maximum ambient temperature (Ta) is 104 ℉(40 ℃). Do not operate fixture at temperature higher than this. In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people will lead to damage or malfunction. -
Page 5: Fixture Linking
fixtures on a serial data link determines the number of fixtures the data link can support. Maximum recommended serial data link distance:500 meters(1640ft). Maximum recommended number of fixtures on a serial data link:32 fixtures. Data cabling To link fixtures together you must obtain data cables. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference. -
Page 6: Orientation
3 pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on. 3.6 orientation This fixture may be mounted in any position provided there is adequate room for ventilation. 4. -
Page 7: Setup Single-Desk Light`s Autocephaly Moving Mode(Sound Control)
.Use the UP/DOWN buttons to set to AU01 or AU02 ,Press ENTER to confirm. Setup single-desk light`s autocephaly moving mode(sound control) .Press the MENU button until it shows SNOF . .Use the UP/DOWN buttons to set to SNOF,press ENTER to confirm. Master/slave mode(auto-running、sound control) .This mode will allow you to link up 32 units together without a controller. - Page 8 0-255 Tilt movement Pan/Tilt Speed 0-255 Pan/Tilt Speed 0-255 0-100% Red Green 0-255 0-100% Green Blue 0-255 0-100% Blue Amber 0-255 0-100% Amber Mixed Color No function 3-41 Macro 1 Macro 2 42-83 84-125 Macro 3 126-167 Macro 4 168-209 Macro 5 210-251 Macro 6...
