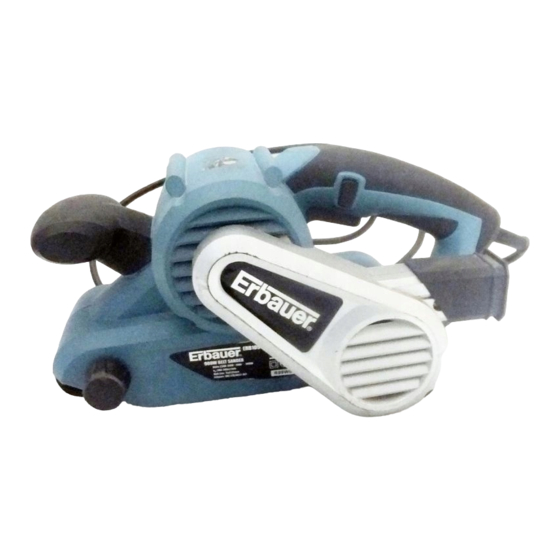

- Page 1 WARRANTY YEARS ERB109SDR 900W BELT SANDER...
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carries a 24-month guarantee, the terms of which are detailed below.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Work area a. Keep work area clean and well lit.Cluttered and dark areas invite accidents. b. - Page 5 before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 6: Additional Safety Rules - For Belt Sanders
HEALTH ADVICE WARNING! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure.You should: - Work in a well-ventilated area. - Page 7 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help re- duce hand arm vibration syndrome injuries to power tool users.The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 8 Avoid using tools in temperatures of 10C or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 9 � � � � � � � � HAND GRIP AREAS SWITCH LOCK-ON BUTTON ON/OFF SWITCH DUST OUTLET VARIABLE SPEED CONTROL DIAL BELT CENTRING CONTROL KNOB DUST COLLECTION BAG SANDING BELT LEVER DRIVING BELT COVER 900W BELT SANDER...
-
Page 10: Technical Data
TECHNICAL DATA Rated voltage 230-240 V ~ 50Hz Rated power 900 W No load speed 200-380 m/min Belt size 75 mm x 533 mm Sanding area 75 x140 mm Protection class Weight 3.1 kg ACCESSORIES 80# sanding belt (1pc on machine) Dust bag... -
Page 11: Operation Instructions
OPERATION INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. 1. ON/OFF SWITCH (See Fig A) Depress to start and release to stop your tool. 2. SWITCH LOCK-ON BUTTON (See Fig A) Depress on/off switch then lock on button.Your tool is now locked on for continuous use.To Fig A switch off your tool just depress and release the... - Page 12 sanding belt. Pull the lever to release the belt tension. Remove and fit a new belt over both rollers. Ensure the direction of rotation arrows on the belt and the sander are the same. Close the lever to tension the belt. 6.
-
Page 13: Working Hints For Your Tool
8. DRIVE BELT (SOLD SEPARATELY) REPLACEMENT (See Fig I, J) WARNING! Remove the main plug from the socket before carrying out a drive belt replacement. Do not attempt to remove the drive belt until the belt wheel has cooled down. Remove the screws (A) and the belt cover. -
Page 14: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. -
Page 15: Plug Replacement
PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below. -
Page 16: Declaration Of Conformity
Declaration of Conformity We, Importer Erbauer (UK) Ltd BA22 8RT Declare that the product 900W Belt Sander ERB109SDR Complies with the essential health and safety requirements of the following directives: Machinery Directive 98/37/EC Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment 2002/95/EC Standards and technical specifications referred to:... - Page 17 900W BELT SANDER...
