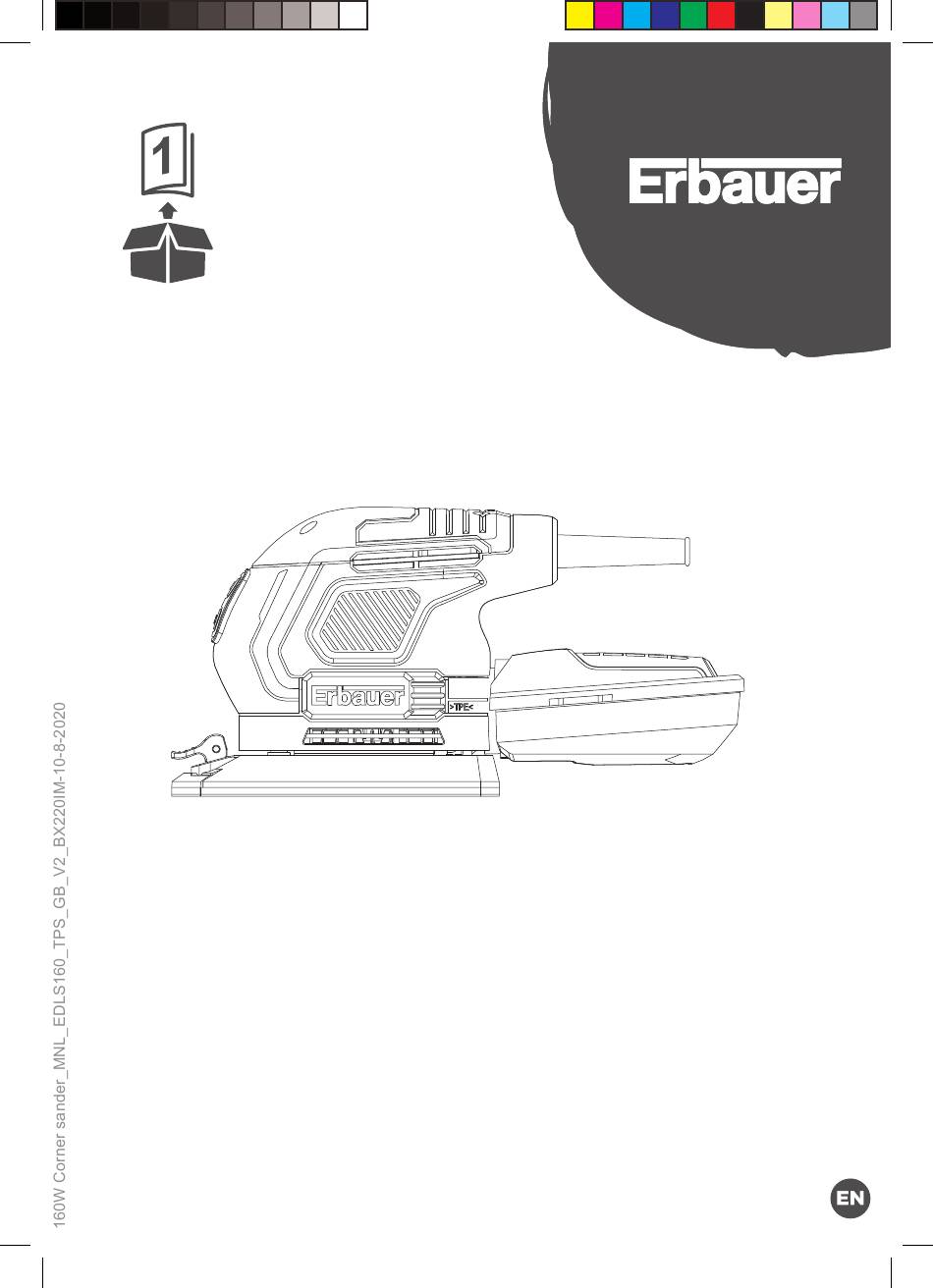

Page 1 EAN: 3663602796930 EDLS160 ORIGINAL INSTRUCTIONS...
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity 160W Corner sander_MNL_EDLS160_TPS_GB_V1_V10518_20180607.indd 2 6/7/18 10:47 AM...
Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. 160W Corner sander_MNL_EDLS160_TPS_GB_V1_V10518_20180607.indd 3 6/7/18 10:47 AM...
Page 4 Product description 160W Corner sander_MNL_EDLS160_TPS_GB_V1_V10518_20180607.indd 4 6/7/18 10:47 AM...
Page 5 160W Corner sander_MNL_EDLS160_TPS_GB_V1_V10518_20180607.indd 5 6/7/18 10:47 AM...
Page 6: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Page 7 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
Page 8 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
Page 9 before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Page 10 SAFETY WARNINGS FOR SANDER a) Take special care to protect yourself and people around against dusts, including the following: • All persons entering the work area must wear an appropriate dust mask specially designed for protection against harmful / toxic dusts, in addition to using the dust extraction facility and keeping work area well ventilated.
Page 11 j) Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down. k) Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.
Page 12 To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
Page 13 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
Page 14 Calculating the actual period of the actual period off use can be difficult and the HSE website has further information. The declared vibration total value has been measured in accordance with EN 62841-1 and EN 62841-2-4 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.
Page 15 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
Page 16 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). 6. Plan your work schedule to spread any high vibration tool use across a longer period of time.
Page 17: Product Description
Product description Part index The index below refers to Fig. 1 on page 4. 1. Hand grip 5. Air vents 2. Dust collection box 6. Finger pad a. Release latch (X2) 7. Finger pad locking knob 3. Dust extraction outlet 8.
Page 18 The sound emission values have been obtained according to the noise test code given in EN 62841-1 and EN 62841-2-4. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation EDLS160 = Model number E = Erbauer DLS = Detail Sander 160 = Power (Watts) 160W Corner sander_MNL_EDLS160_TPS_GB_V1_V10518_20180607.indd 18...
Page 19: Assembly
Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
Page 20 Sanding paper (Fig. A) Always remove dust and chips from the sanding base plate (4) before attaching sanding paper (9) to reduce the wear of sanding base plate and sanding paper. Choosing the right sanding paper Sanding paper is available with different grain sizes (grit) and for different materials. The grain size is indicated with a number on the reverse of the sanding paper, the higher the number, the finer the grain size.
Page 21 Dust extraction (Fig. B, C, D) The product can be used with the dust collection box (2) or an external dust extraction device. Dust collection box 1. Attach the dust collection box (2) to the dust extraction outlet (3). Fig. B. 2.
Page 22: Use
Intended use This product is intended for dry sanding of wood, plastic, metal, fillers and coated surfaces. This product should not be used on other materials or those harmful to health. Before you start Protection Controls On/Off switch (Fig. E) Operate the product in continuous mode.
Page 23 Operation WARNING! Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. Use a dust extraction system suitable for the material as far as possible. Sanding •...
Page 24: Care & Maintenance
Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1.
Page 25 UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
Page 26 Transportation WARNING! Always carry the product by its main handle. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. 2. Always carry the product by its handle. 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
Page 27: Guarantee
Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and that they can provide regular, sustained daily use during the period covered. That’s why we offer a 2 year guarantee against manufacturing defects on our Erbauer power tool products.
Page 28: Declaration Of Conformity
London W2 6PX United Kingdom Declare that the product Detail Sander EDLS160 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
Page 29 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product Detail Sander EDLS160 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
Page 32 Manufacturer • Fabricant • Producent • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
