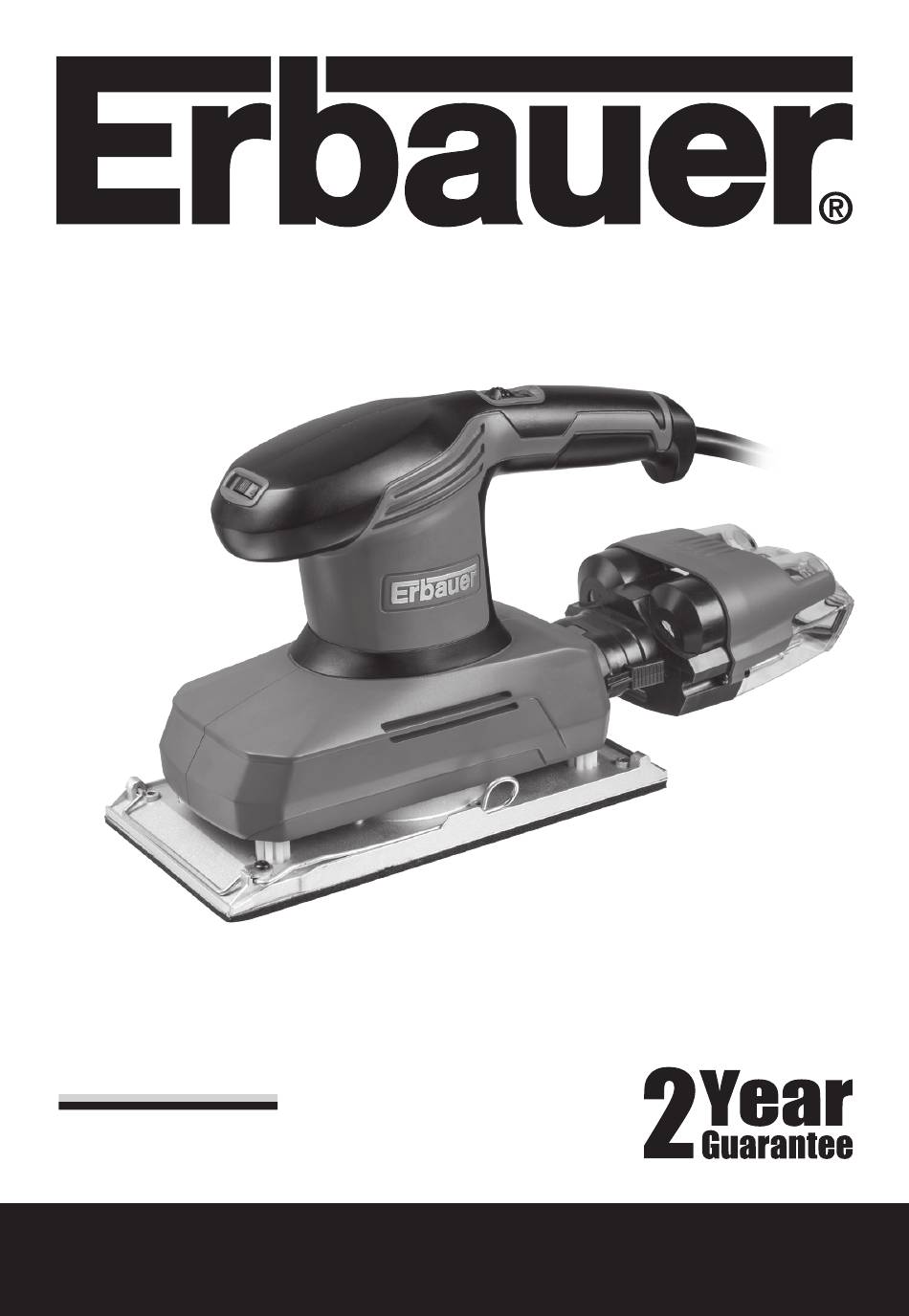

- Page 1 ERB618SDR 350W 1/2 SHEET SANDER ERB618SDR...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 5: Personal Safety
The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on 350W 1/2 SHEET SANDER ERB618SDR... - Page 6 and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Page 7 21. Your tool is designed for dry sanding only, not wet sanding. 22. Your tool is designed for general purpose light polishing of wood and metals. 23. Do not sand magnesium material due to the risk of fire. 350W 1/2 SHEET SANDER ERB618SDR...
- Page 8 ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 9 Plan your work schedule to spread any high vibration tool use across a number of days. Health surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. 350W 1/2 SHEET SANDER ERB618SDR...
- Page 10 Double insulation The charger is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed. Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low- vibration and low-noise operating modes as well as wear personal protective equipment.
- Page 11 Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 350W 1/2 SHEET SANDER ERB618SDR...
- Page 13 1. HAND GRIP AREA 2. ON/OFF SWITCH 3. VARIABLE SPEED CONTROL 4. SANDING PAPER CLAMP 5. ALUMINIUM BASE PLATE 6. DUST BOX 7. PAPER PUNCH 8. VACUUM ADAPTER 350W 1/2 SHEET SANDER ERB618SDR...
-
Page 14: Technical Data
TECHNICAL DATA Rated voltage 230-240V~ 50Hz Rated power 350W No load speed 6000-11000/min Protection class Base size 113*225 mm Orbital dia. 2.4mm Machine weight 2.1kg NOISE INFORMATION A weighted sound pressure : 76dB(A) A weighted sound power : 87dB(A) & K 3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) -
Page 15: Intended Use
Caution: To prevent the possibility of sanding dust or foreign body being thrown into your face or Fig. 4-1 eyes, never attempt to use your sander without the cyclone box properly installed. 350W 1/2 SHEET SANDER ERB618SDR... - Page 16 Fig. 4-1 The dust box is recommended for horizontal sanding and for the larger grit sizes, if sanding vertically or with very small grit sizes then dust extraction should be used. Empty dust box (see Fig 5-1, 5-2) For more efficient operation, empty dust box every 5-10mins.
-
Page 17: Using The Sander
Do not allow your sander to remain in the same position otherwise you will remove material and create an uneven surface. Fig. 10 350W 1/2 SHEET SANDER ERB618SDR... - Page 18 9. ATTACHING SANDER TO VACUUM (SEE FIG.10) Your sander is equipped with a vacuum adapter (8), which is designed for collect dust task. Insert the adapter (8) into the rear dust outlet of sander. Then pull the dust tube and make sure it is tightened securely on the dust outlet.
-
Page 19: Maintenance
4. If a fault can not be rectified return the sander to an authorized dealer for repair. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. 350W 1/2 SHEET SANDER ERB618SDR... -
Page 20: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. - Page 21 EN 60745-2-4 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 30/03/2015 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 350W 1/2 SHEET SANDER ERB618SDR...
