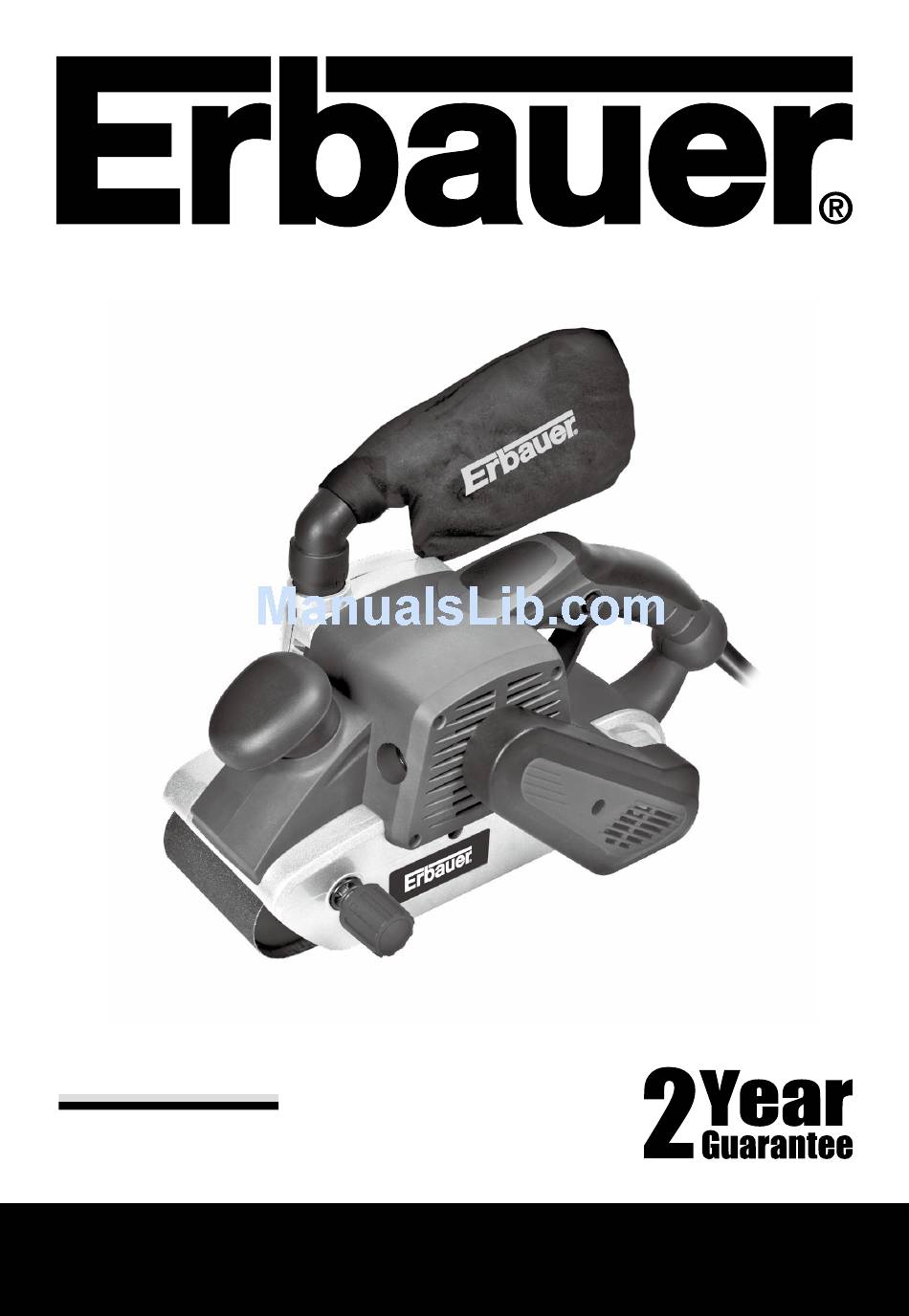

- Page 1 ERB378SDR 1200W 4" BELT SANDER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery- operated (cordless) power tool. - Page 5 f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 6 Following this rule will reduce the risk of serious personal injury. 5. Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. 6. Fully unwind cable drum extensions to avoid potential overheating. 7. When an extension cable is required you must ensure it has the correct ampere rating for your power tool and is in a safe electrical condition.
- Page 7 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 8 Avoid using tools in temperatures of 10ºC or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 9 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 11 HAND GRIP AREAS SWITCH LOCK-ON BUTTON ON/OFF SWITCH DUST OUTLET BELT CENTERING CONTROL KNOB DUST COLLECTION BAG SANDING BELT LEVER DRIVING BELT COVER 1200W 4" BELT SANDER...
-
Page 12: Technical Data
TECHNICAL DATA Rated voltage 230-240V~50Hz Power input 1200W No load belt speed 480m/min Belt size 100 x 610mm Sanding size 100 x 220mm Protection class Machine weight 6.18kg NOISE INFORMATION A weighted sound pressure: : 89.4 dB (A) =3.0 dB (A) A weighted sound power: : 100.4 dB (A) =3.0 dB (A) - Page 13 OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for dry sanding with high removal capacity of wood, plastic, metal, filler as well as varnished surfaces. 1. ON/OFF SWITCH (See Fig. 1) Fig.
- Page 14 collection bag is full, remove and empty by opening the zip on the dust bag. Using the dust extraction adaptor Your sander is equipped with a dust extraction adaptor, which is designed for connecting your tool to a vacuum cleaner. Connect the dust extraction adaptor into the hose of a vacuum cleaner.
-
Page 15: Working Hints For Your Tool
WORKING HINTS FOR YOUR TOOL If your power tool becomes too hot, especially when used at low speed, set the speed to maximum and run with no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speed. Always use a sanding belt suited to the material you wish to sand. -
Page 16: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk. -
Page 17: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. -
Page 18: Declaration Of Conformity
Standards conform to: EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-2-4 EN 60745-1 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT... - Page 19 1200W 4" BELT SANDER...
