Summary of Contents for Erbauer EHSS350

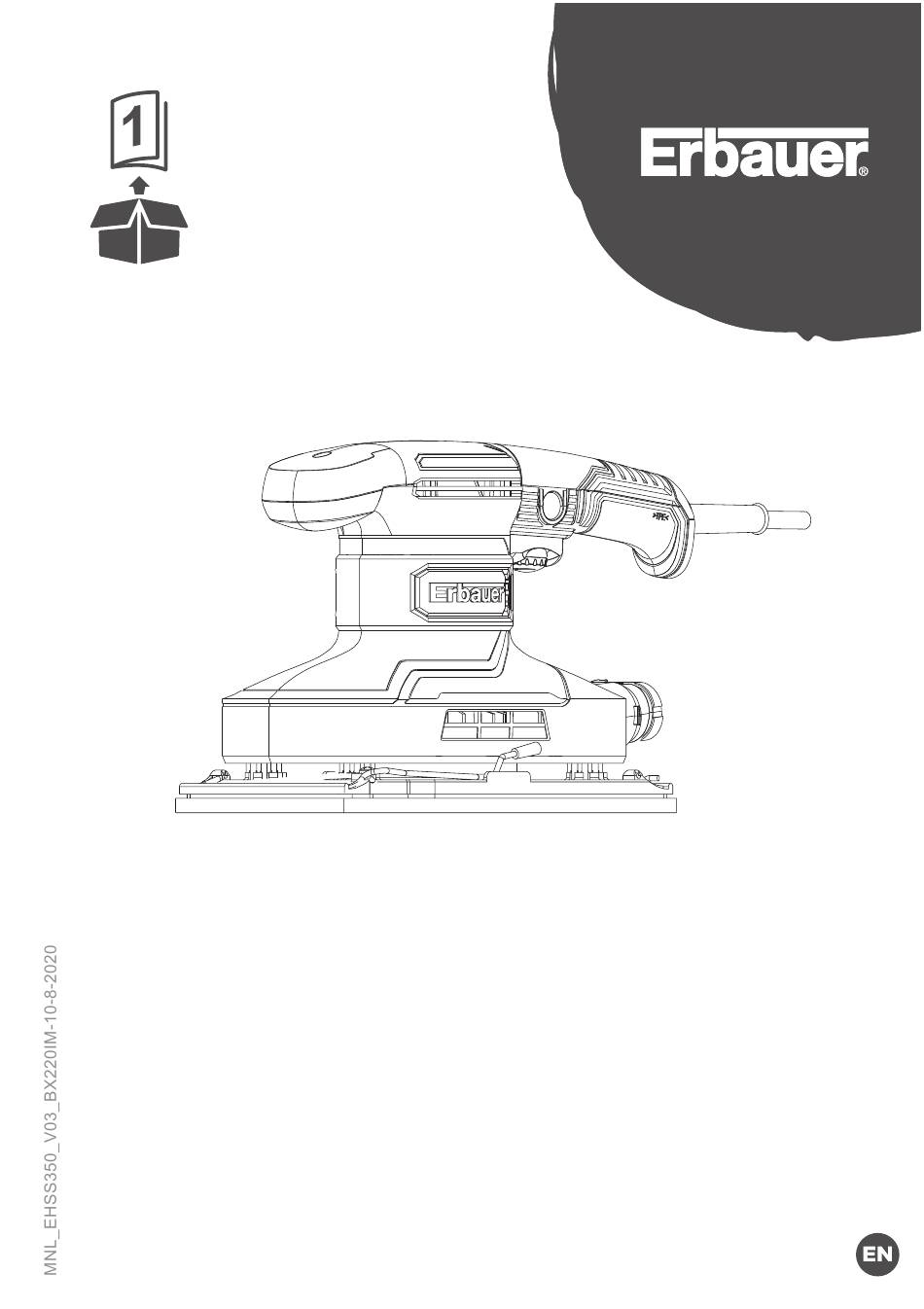

- Page 1 EAN 3663602796794 EHSS350 ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity... - Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
- Page 4 Product description 10 10a...
-
Page 7: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 8 3) PERSONAL SAFETY a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 9 performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
- Page 10 Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! Silica is a natural mineral present in large amounts in things like sand, sandstone and granite.
- Page 11 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products. •...
- Page 12 WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used: • How the materials are grinded, cut or drilled. • If the tool is in good condition and well maintained. •...
- Page 13 VIBRATION AND NOISE REDUCTION To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
-
Page 14: Product Description
Product description Part index The index below refers to Fig. 1 on page 4. 1. Front hand grip 9. Dust extraction adaptor 2. On/off switch a. Release lever (x 2) 3. Lock-on button 10. Dust collection box 4. Main handle a. - Page 15 EN 62841-1 and EN 62841-2-4. The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation EHSS350 = Model number E = Erbauer HSS = 1/2 Sheet Sander 350 = Power (Watts)
-
Page 16: Assembly
Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 17 Sanding paper Always remove dust and chips from the sanding base plate (7) before attaching sanding paper (12) to reduce the wear of sanding base plate and sanding paper. Choosing the right sanding paper Sanding paper is available with different grain sizes (grit) and for different materials. The grain size is indicated with a number on the reverse of the sanding paper, the higher the number, the finer the grain size.
- Page 18 Sanding paper without holes, e.g. from rolls or by the meter, should be cut to suitable size and punctured with hole pattern by using the punch (11). Paper size: • 115x230 mm for sanding paper with hook-and-loop system. • 115x280 mm for sanding paper without hook-and-loop system. Changing/attaching sanding paper with hook-and-loop system (Fig.
- Page 19 Dust extraction (Fig. F, G, H, I, J ) The product can be used with the dust collection box (10) or an external dust extraction device. Dust collection box 1. Attach the dust collection box (10) to the dust extraction outlet (6). Fig. F. 2.
-
Page 20: Use
Intended use This product is intended for dry sanding of wood, plastic, metal, fillers and coated surfaces. This product should not be used on other materials or those harmful to health. Before you start Protection • • Controls • On/Off switch & Lock-on button (Fig. K) •... - Page 21 2. Turn the speed dial (5) anti-clockwise to decrease the maximum speed. A lower setting is suitable for sanding with coarse-grained sanding papers to remove paints and varnishes. Operation WARNING! Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative).
-
Page 22: Care & Maintenance
Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1. - Page 23 UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
- Page 24 Transportation WARNING! Always carry the product by its main handle. Never use the cord for carrying the product. 1. Switch the product off and disconnect it from the power supply. 2. Always carry the product by its handle. 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
-
Page 25: Guarantee
Guarantee At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered. -
Page 26: Declaration Of Conformity
London W2 6PX United Kingdom Declare that the product 350W 1/2 Sheet Sander EHSS350 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 27 Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product 350W 1/2 Sheet Sander EHSS350 Serial number: from 000001 to 999999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
- Page 28 Manufacturer • Fabricant • Producent • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Distributor: www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
