thomann JunoScan MK-II User Manual

Led scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

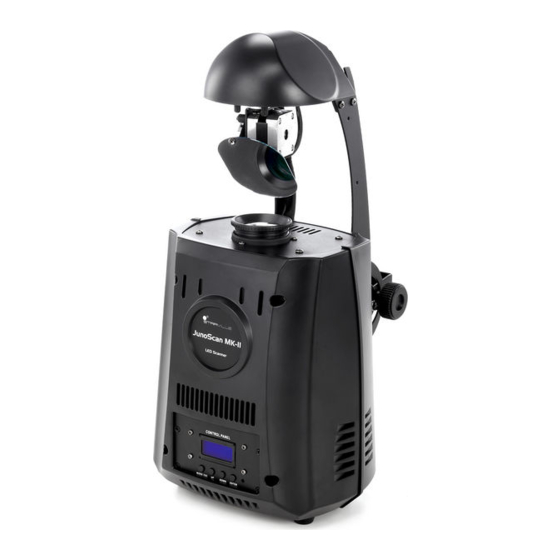

JunoScan MK-II
LED scanner
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JunoScan MK-II and is the answer not in the manual?

Questions and answers

Related Manuals for thomann JunoScan MK-II

Summary of Contents for thomann JunoScan MK-II

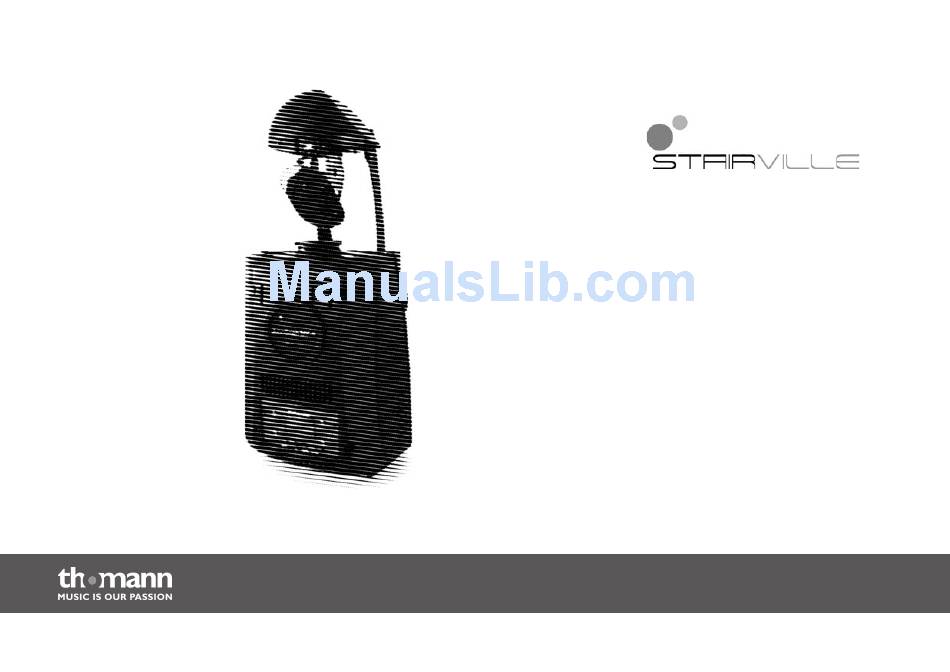

  • Page 1 JunoScan MK-II LED scanner user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 26.10.2012...

  • Page 3: Table Of Contents

    Connections and controls........................21 Operation..............................26 7.1 Starting up the device........................26 7.2 Main menu............................27 7.3 Settings menu........................... 33 7.4 Gobos..............................36 7.5 Functions in 5-channel DMX mode................... 38 7.6 Functions in 8-channel DMX mode................... 42 Troubleshooting............................50 JunoScan MK-II...
  • Page 4 Table of contents Cleaning............................... 52 Technical data............................53 Protecting the environment......................54 LED scanner...

  • Page 5: General Notes

    Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice. Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. JunoScan MK-II...
  • Page 6 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a possible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. JunoScan MK-II...

  • Page 8: Safety Notes

    Safety notes Safety notes Intended use This device is intended for use as a multifunctional lighting instrument with movable mirror. Use the device only as described in this user manual. Any other use or use under other oper‐ ating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 9 Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. JunoScan MK-II...
  • Page 10 Safety notes WARNING! Eye damage caused by high light intensity The lamp used in this device produces an intense beam of visible and invisible light radiation. Do not start the operation of the device without completely fixed covers. Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy.
  • Page 11 Safety notes WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes. JunoScan MK-II...
  • Page 12 Safety notes CAUTION! Risk of injury due to mirror movements The mirror mounted at the device head may perform very fast movements (pan, tilt) and reflect very bright light. This is also the case immediately after switching on the device, with automatic or remote operation, and while a connected DMX controller is in off state.
  • Page 13 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. JunoScan MK-II...

  • Page 14: Features

    Features Features The LED scanner is especially suited for professional lighting tasks, e.g. during events, on rock music stages, in theatre and musical productions or in discotheques. Special features of this device: White high-power LED (10 W) Control via DMX (5 or 8 channels) and buttons plus display on the unit itself. Built-in automatic show programmes Sound control Master/slave mode...

  • Page 15: Installation

    To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. You can install the device on the wall, the ceiling or the floor. JunoScan MK-II...
  • Page 16 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and regulations in your country. Always secure the unit by a second fastening, such as a retaining cable or safety chain. The load capacity of trusses or other fixtures must be sufficient for the intended number of devices.
  • Page 17 DMX connections The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for pin assignment. Ground, shielding DMX data (–) DMX data (+) JunoScan MK-II...

  • Page 18: Setup

    Setup Setup Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED scanner...
  • Page 19 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). JunoScan MK-II...
  • Page 20 Setup DMX indicator While the device and the DMX controller are in operation, a flashing white rectangle (DMX indicator) in the display shows that a DMX signal is present at the input. Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show.

  • Page 21: Connections And Controls

    Connections and controls Connections and controls JunoScan MK-II...
  • Page 22 Connections and controls 1 Device head with movable mirror. 2 Lens, manual focussing. 3 Adjustable suspension. 4 Device body. 5 Control panel. 6 Connections. LED scanner...
  • Page 23 Connections and controls Control panel 7 Display. 8 [MODE ESC] button Activates the main menu and moves between menu items. Closes an open sub‐ menu without saving the changes. 9 [UP] button Increments the displayed value by one. JunoScan MK-II...
  • Page 24 Connections and controls 10 [DOWN] button Decrements the displayed value by one. 11 [ENTER] button Selects an option in the corresponding mode, confirms the set value. LED scanner...
  • Page 25 Connections and controls Connections 12 Plug for mains cable with fuse holder. 13 Eyelet for safety cable. 14 OUTPUT DMX output. 15 INPUT DMX input. JunoScan MK-II...

  • Page 26: Operation

    Operation Operation 7.1 Starting up the device CAUTION! Risk of injury due to mirror movements The mirror mounted at the device head may perform very fast movements (pan, tilt) and reflect very bright light. This is also the case immediately after switching on the device, with automatic or remote operation, and while a connected DMX controller is in off state.

  • Page 27: Main Menu

    All previously made settings are saved, even if you disconnect the device from the power supply. To restart with the default values, use the ‘Reset’ function ( Ä ‘General reset’ on page 31). JunoScan MK-II...
  • Page 28 Operation Auto show mode Press the [MODE ESC] button repeatedly until ‘AutoMode’ appears in the first line of the dis‐ play. You may now choose an operating mode with the [UP] and [DOWN] buttons: Displayed text when menu Displayed text after con‐ Operating mode is open firming with [ENTER]...
  • Page 29 Make sure that the DMX address matches the configuration of your DMX controller. The fol‐ lowing table shows the highest usable DMX address for the different DMX modes. Mode Highest usable DMX address 5 channels 8 channels JunoScan MK-II...
  • Page 30 Operation Reversal of pan direction Press the [MODE ESC] button repeatedly until ‘PanDirt’ appears in the first line of the display. Use the [UP] and [DOWN] buttons to choose between ‘forward’ (normal pan direction) and ‘reverse’ (reverse pan direction). Press the [ENTER] button to confirm your setting and to close the menu. To close the menu without saving the changes, press the [MODE ESC] button or wait one minute.
  • Page 31 This function allows you to restore the factory settings of all parameters that can be changed in the main menu. Press the [MODE ESC] button repeatedly until ‘Load’ appears in the first line of the display. Press the [ENTER] button. The device performs a reset. JunoScan MK-II...
  • Page 32 Operation Overview (main menu) LED scanner...

  • Page 33: Settings Menu

    To close the settings menu and return to the main menu, press the [MODE ESC] button for approx. five seconds. All previously made settings are saved, even if you disconnect the device from the power supply. There is no reset function for the parameters that can be changed in the settings menu. JunoScan MK-II...
  • Page 34 Operation Adjusting the gobo wheel Activate the settings menu. Press the [MODE ESC] button repeatedly until ‘GOBO’ appears in starting position the first line of the display. Use the [UP] and [DOWN] buttons to select a value between 0 and 255 until the gobo wheel is in the desired starting position.
  • Page 35 Operation Overview (settings menu) JunoScan MK-II...

  • Page 36: Gobos

    Operation There is no setting function available for PAN and TILT. 7.4 Gobos The following figure shows the available gobos and their numbers. LED scanner...
  • Page 37 Operation JunoScan MK-II...

  • Page 38: Functions In 5-Channel Dmx Mode

    Operation 7.5 Functions in 5-channel DMX mode Channel Value Function 0…255 Pan (0° to 180°) 0…255 Tilt (0° to 60°) Colour wheel 0…5 White 6…11 Yellow 12…17 Pink 18…23 Green 24…29 30…35 Blue 36…41 Orange 42…47 Dark blue LED scanner...
  • Page 39 Red + blue 98…103 Blue + orange 104…109 Orange + dark blue 110…115 Ark blue + Kelly green 116…121 Kelly green + orange red 122…127 Orange red + white 128…191 Rainbow effect in positive rotation direction, with increasing speed JunoScan MK-II...
  • Page 40 Operation Channel Value Function 192…255 Rainbow effect in negative rotation direction, with increasing speed Shutter 0…3 Closed (blackout) 4…7 Open 8…215 Strobe effect with increasing speed 216…255 Open Gobo wheel 0…5 Open 6…11 Gobo 1 12…17 Gobo 2 18…23 Gobo 3 24…29 Gobo 4 30…35...
  • Page 41 Gobo 6 shake with increasing speed 92…97 Gobo 5 shake with increasing speed 98…103 Gobo 4 shake with increasing speed 104…109 Gobo 3 shake with increasing speed 110…115 Gobo 2 shake with increasing speed 116…121 Gobo 1 shake with increasing speed JunoScan MK-II...

  • Page 42: Functions In 8-Channel Dmx Mode

    Operation Channel Value Function 122…127 Open 128…191 Rainbow effect in positive rotation direction, with increasing speed 192…255 Rainbow effect in negative rotation direction, with increasing speed 7.6 Functions in 8-channel DMX mode Channel Value Function 0…255 Pan (0° to 180°) 0…255 Tilt (0°...
  • Page 43 12…17 Pink 18…23 Green 24…29 30…35 Blue 36…41 Orange 42…47 Dark blue 48…53 Kelly green 54…63 Orange red 64…73 White + yellow 74…79 Yellow + pink 80…85 Pink + green 86…91 Green + red 92…97 Red + blue JunoScan MK-II...
  • Page 44 Operation Channel Value Function 98…103 Blue + orange 104…109 Orange + dark blue 110…115 Ark blue + Kelly green 116…121 Kelly green + orange red 122…127 Orange red + white 128…191 Rainbow effect in positive rotation direction, with increasing speed 192…255 Rainbow effect in negative rotation direction, with increasing speed Shutter...
  • Page 45 12…17 Gobo 2 18…23 Gobo 3 24…29 Gobo 4 30…35 Gobo 5 36…41 Gobo 6 42…47 Gobo 7 48…53 Gobo 8 54…63 Gobo 9 64…73 Gobo 9 shake with increasing speed 74…79 Gobo 8 shake with increasing speed JunoScan MK-II...
  • Page 46 Operation Channel Value Function 80…85 Gobo 7 shake with increasing speed 86…91 Gobo 6 shake with increasing speed 92…97 Gobo 5 shake with increasing speed 98…103 Gobo 4 shake with increasing speed 104…109 Gobo 3 shake with increasing speed 110…115 Gobo 2 shake with increasing speed 116…121 Gobo 1 shake with increasing speed...
  • Page 47 No blackout during colour wheel movement nor during gobo wheel movement nor during pan and tilt movement 56…95 Reserved 96…103 Reset pan angle 104…111 Reset tilt angle 112…119 Reset colour wheel 120…127 Reset gobo wheel 128…151 Reserved 152…159 Reset all channels JunoScan MK-II...
  • Page 48 Operation Channel Value Function 160…255 Reserved Built-in programmes 0…7 Reserved 8…23 Programme 1 24…39 Programme 2 40…55 Programme 3 56…71 Programme 4 72…87 Programme 5 88…103 Programme 6 104…119 Programme 7 120…135 Programme 8 136…151 Sound control 1 152…167 Sound control 2 LED scanner...
  • Page 49 Operation Channel Value Function 168…183 Sound control 3 184…199 Sound control 4 200…215 Sound control 5 216…231 Sound control 6 232…247 Sound control 7 248…255 Sound control 8 JunoScan MK-II...

  • Page 50: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX output to audio devices such as mixers or amplifiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: LED scanner...
  • Page 51 4. Check whether the DMX cables run near or parallel to high-voltage cables that may cause damage or interfer‐ ence to the DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. JunoScan MK-II...

  • Page 52: Cleaning

    Cleaning Cleaning Optical lenses and mirrors Clean the optical lenses and mirrors which are accessible from the outside periodically to opti‐ mise light output. The cleaning frequency depends on the operating environment: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the unit’s optics.

  • Page 53: Technical Data

    Mains power supply 230 V (AC), 50 Hz Power consumption 57 W Fuse 5 mm × 20 mm, 2.0 A, 250 V, fast-blow Dimensions (W × D × H) 140 mm × 396 mm × 106 mm Weight 4.3 kg JunoScan MK-II...

  • Page 54: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 56 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
