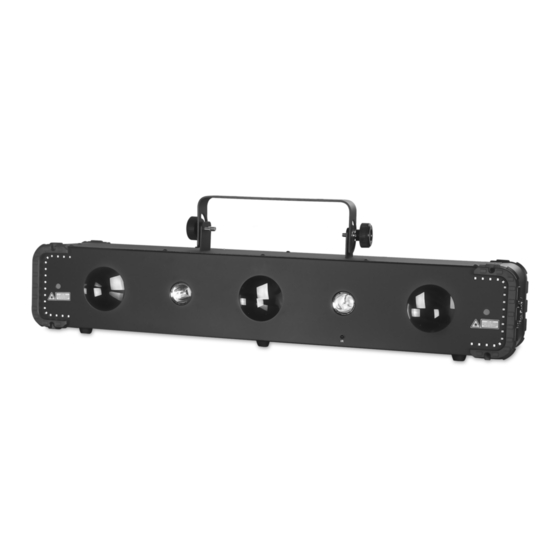

All FX Bar
LED Effect

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE All FX Bar and is the answer not in the manual?

Questions and answers

Summary of Contents for thomann STAIRVILLE All FX Bar

  • Page 1 All FX Bar LED Effect...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 20.10.2023, ID: 525601 (V4)
  • Page 3: Table Of Contents

    Table of contents Table of contents General information......................5 1.1 Symbols and signal words................... 5 Safety instructions......................... 6 Features............................9 Installation..........................10 Starting up..........................12 Connections and controls....................13 Operating..........................15 7.1 Switching the device on and off................15 7.2 Operating mode Automatic..................15 7.3 Sound control.........................
  • Page 4 All FX Bar LED Effect...
  • Page 5: General Information

    Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED tech‐ nology and for the projection of laser light effects. The device is designed for profes‐ sional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 7 Safety instructions CAUTION! Risk of injury from laser! This device contains a class 2M laser, classified according to EN 60825-1:2014+A11:2021. The accessible laser radiation is in a wavelength range of 400 nm to 700 nm, the output is 1 mW or less. If the beam cross-section is bundled by optical collecting instruments, looking into the laser beam can cause injuries to the eyes and affect the person’s vision temporarily.
  • Page 8 Safety instructions NOTICE! Possible staining due to plasticiser in rubber feet! The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor.
  • Page 9: Features

    Features Features Special features of the device: 2 strobe arrays each with 18 cold white LEDs, 0.5 W each Grading laser with two laser diodes 2 beam spots each with 192 RGBWA LEDs, 0.12 W each 2 UV LEDs, 3 W each Control via DMX (4 different modes), buttons and display on the unit as well as the supplied infrared remote control 10 preprogrammed automatic shows...
  • Page 10: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. You can install the device standing or hanging.
  • Page 11 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 12: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 13: Connections And Controls

    Connections and controls Connections and controls Front ö & & & 1 Swivelling mounting bracket 2 Locking screw for the mounting bracket 3 Laser aperture 4 Strobe LEDs 5 Beam spots 6 UV spots 7 [IR] | Infrared sensor for the remote control signals 8 [DMX OUT] | DMX output, designed as XLR chassis socket, 3-pin 9 [POWER OUT] | Lockable output socket (Power Twist) for powering a connected device.
  • Page 14 Connections and controls [MENU] | Activates the main menu and switches between menu items. Closes an open submenu. [UP] | Increases the displayed value by one. [DOWN] | Decreases the displayed value by one. [Enter] | Selects an option of the respective operating mode, confirms the set value [DMX] | The LED indicates that a signal is present on the DMX input.
  • Page 15: Operating

    Operating Operating 7.1 Switching the device on and off Switching on Verify that all required laser safety precautions have been taken. Make sure that there is no one in the reach of the laser beam. Insert the safety key into the lock. If not already done, connect the device to the mains.
  • Page 16: Sound Control

    Operating 7.3 Sound control Press [MENU] repeatedly until the display shows ‘Sou’ and confirm with [ENTER]. Press [UP] or [DOWN] to select one of the sound-controlled programmes ‘So01’ … ‘So14’ . Confirm the selection with [ENTER]. Use the [MIN/MAX] control to set the sensitivity of the built-in microphone. To return to the main menu without making changes, press [MENU].
  • Page 17: Slave Mode

    Operating 7.5 Slave mode In this mode, the device exactly follows the operation of the master that it is con‐ nected to. Press [MENU] repeatedly until the display shows ‘SLA’ and confirm with [ENTER]. ð The display shows ‘SLAV’ . The Slave mode is activated. To return to the main menu without making changes, press [MENU].
  • Page 18: Menu Overview

    Operating 7.8 Menu overview Au01 So01 02Ch SLAV LEdS Au14 S100 So14 d511 05Ch LEdr d508 08Ch rESt d505 U100 10Ch d503 7.9 Functions in 2-channel DMX mode Channel Value Function Automatic show for all components, if channel 2 Sound-controlled automatic show for all compo‐ = 0…250 nents, if channel 2 = 251…255 0…5...
  • Page 19: Functions In 5-Channel Dmx Mode

    Operating 7.10 Functions in 5-channel DMX mode Channel Value Function UV-LEDs Automatic show for UV LEDs, if channel 5 = 0… Sound-controlled automatic show for UV LEDs, if channel 5 = 251…255 0…5 No function No function 6…55 AP01 SP01 56…106 AP02 SP02...
  • Page 20 Operating Channel Value Function 190…197 AB24 SB24 198…205 AB25 SB25 206…213 AB26 SB26 214…221 AB27 SB27 222…229 AB28 SB28 230…237 AB29 SB29 238…245 AB30 SB30 246…255 ABM (mix programme) SBM (mix programme) Laser Automatic show for laser, if channel 5 = 0…250 Sound-controlled automatic show for laser, if channel 5 = 251…255 0…5...
  • Page 21: Functions In 8-Channel Dmx Mode

    Operating Channel Value Function 0…250 Run speed of the automatic show, from slow to fast, if channel 1, 2, 3 or 4 = 6…255 251…255 Sensitivity of the sound control microphone from low to high, if channel 1, 2, 3 or 4 = 6…255 7.11 Functions in 8-channel DMX mode Channel...
  • Page 22 Operating Channel Value Function 190…197 AB24 SB24 198…205 AB25 SB25 206…213 AB26 SB26 214…221 AB27 SB27 222…229 AB28 SB28 230…237 AB29 SB29 238…245 AB30 SB30 246…255 ABM (mix programme) SBM (mix programme) 0…255 Run speed of the automatic show, from slow to fast, if channel 2 = 6…255 0…255 Strobe effect with increasing speed, if channel 4 = 6…255 Laser...
  • Page 23: Functions In 10-Channel Dmx Mode

    Operating Channel Value Function 164…186 AF08 SF08 187…209 AF09 SF09 210…232 AF10 SF10 233…255 AFM (mix programme) SFM (mix programme) 0…250 Run speed of the automatic show, from slow to fast, if channel 6 = 6…255 Beam LEDs, laser, strobe LEDs 0…35 No function 36…71...
  • Page 24 Operating Channel Value Function 38…45 AB05 SB05 46…53 AB06 SB06 54…61 AB07 SB07 62…69 AB08 SB08 70…77 AB09 SB09 78…85 AB10 SB10 86…93 AB11 SB11 94…101 AB12 SB12 102…109 AB13 SB13 110…117 AB14 SB14 118…125 AB15 SB15 126…133 AB16 SB16 134…141 AB17 SB17...
  • Page 25 Operating Channel Value Function 132…173 Strobe effect red laser, green laser switched on 174…215 Red laser switched on, strobe effect green laser 216…255 Strobe effect red and green lasers If channel 6 = 6…255 0…5 No function 6…250 Strobe effect with increasing speed 251…255 Sound-controlled strobe effect No function...
  • Page 26: Technical Specifications

    Technical specifications Technical specifications Light source 2 × strobe arrays: 18 × cold white LEDs 0,5 W each 3 × beam spots: 192 × RGBWA LEDs 0.12 W each 2 × laser: Green 30 mW / 532 nm, red 100 mW / 650 nm 2 ×...
  • Page 27: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 28: Troubleshooting

    Troubleshooting Troubleshooting CAUTION! Risk of injury due to improper troubleshooting! There is a risk of injury if troubleshooting is not performed properly. Have all work and repairs on class 2M lasers performed by trained experts. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy...
  • Page 29: Cleaning

    Cleaning Cleaning CAUTION! Risk of injury due to improper cleaning! There is a risk of injury if cleaning is not performed properly. To avoid unintentional laser radiation, switch off the laser before you start cleaning the device. Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output.
  • Page 30: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
