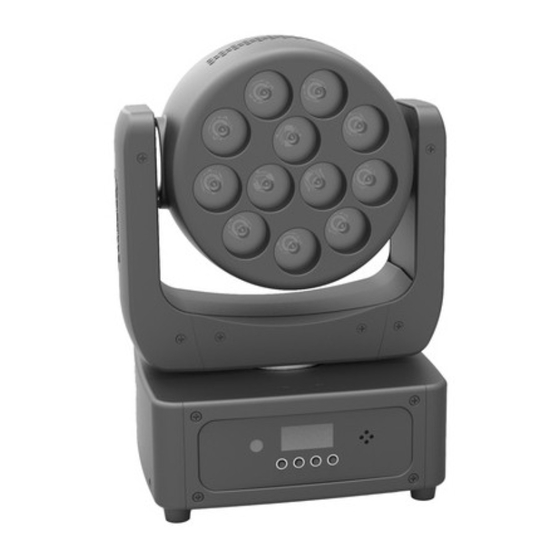

- Page 1 SonicPulse MH Wash 1208 Moving Head...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 17.06.2024, ID: 589121...
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Symbols and signal words................... 4 Safety instructions......................... 5 Features............................7 Installation..........................8 Starting up..........................11 Connections and controls....................12 Operating..........................15 7.1 Starting the device....................... 15 7.2 Main menu........................15 7.2.1 DMX address....................... -
Page 4: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 5: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as a freely moving multifunctional spotlight. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 6 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sunlight, heavy dirt and strong vibrations.
-
Page 7: Features
Features Features Master-slave-compatible with all devices in the SonicPulse series 12 × 4-in-1 RGBWW LEDs (each 8 W) Pan rotation (540°) Tilt rotation (220°) Control via DMX (2 different modes) and via buttons and display on the device Pre-programmed automatic shows Two separately controllable LED segments Strobe effect Sound control with two different modes for perfectly synchronised light... -
Page 8: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. Lift the device only at the base. - Page 9 Installation NOTICE! Damage to the device due to operation in confined environments! If the device is operated in confined environments, movements of the device head can result in collisions, and the device can be damaged. Ensure that there is sufficient space around the device to allow move‐ ments of the device head.
-
Page 10: Mounting Options
Installation Mounting options You can install the device in hanging or standing positions. When in use, the device must always be attached to a solid surface or an approved mount. Always work from a stable platform whenever installing, moving or servicing the device. -
Page 11: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. -
Page 12: Connections And Controls
Connections and controls Connections and controls Overview & ö PUSH Power Out Max 6A Power In Power Out DMX In DXM Out 1 Device base 2 Movable head 3 LEDs 4 Operating panel with display 5 Fan grid 6 Connection panel with power supply and DMX connections SonicPulse MH Wash 1208 Moving Head... - Page 13 Connections and controls Control panel, connection panel ö PUSH Power Out Max 6A Power In Power Out DMX In DXM Out % & 1 Sensor for the optional infrared remote control (item no. 354223) 2 Display 3 Built-in microphone for sound control 4 [Mode] | Activates the main menu and toggles between menu items.
- Page 14 Connections and controls Infrared remote control Since the universal remote control can be used for several device types, some but‐ (item no. 354223, tons may not be assigned and therefore have no function. optionally available) 1 [AUTO] | Activates “Automatic” mode. ö...
-
Page 15: Operating
Operating Operating 7.1 Starting the device CAUTION! Risk of injury due to unexpected movements of the device! The device head may perform fast movements and generate very bright light. This is the case immediately after the device is switched on, in automatic or remote operation, and when a connected DMX controller is switched off. -
Page 16: Dmx Address
Operating 7.2.1 DMX address This setting is only relevant if the device is controlled via a DMX controller. Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘DMX’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘Address’... -
Page 17: Manual Control
Operating 7.2.3 Manual control This setting is only relevant if the device is not controlled via a DMX controller and not working as a slave in a master/slave configuration. This operating mode can be used to set the pan, tilt, colours and strobe. Press [Mode] to activate the main menu. -
Page 18: Automatic Mode
Operating 7.2.4 Automatic mode Automatic mode can only be activated if the device is operating in stand-alone mode or as the master in a master/slave configuration and if the device is not controlled via a DMX controller. Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Auto’... -
Page 19: Pre-Programmed Automatic Show
Operating 7.2.5 Pre-programmed automatic show A pre-programmed automatic show can only be activated if the device is operating in stand-alone mode or as the master in a master/slave configuration and if the device is not controlled via a DMX controller. Press [Mode] to activate the main menu. -
Page 20: Sound Control
Operating 7.2.6 Sound control This setting is only relevant if the device is not controlled via a DMX controller and not working as a slave in a master/slave configuration. The settings in sound mode are adopted if the device is controlled as ‘Slave 2’ by a different SonicPulse device. -
Page 21: Master/Slave" Mode
Operating Setting the frequency The following frequencies can be set: Frequency Hertz ‘001’ 40…360 Hz ‘002’ 400…3000 Hz ‘003’ 3040…10200 Hz ‘004’ 40…80 Hz ‘005’ 120…200 Hz ‘006’ 240…360 Hz ‘007’ 400…600 Hz ‘008’ 640…880 Hz ‘009’ 920…1200 Hz ‘010’ 1240…1560 Hz ‘011’... -
Page 22: Pan Rotation Angle
Operating 7.2.8 Pan rotation angle Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Settings’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘Pan Angle’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to adjust the maximum rotation angle between 0°... -
Page 23: Dimmer Curves
Operating 7.2.11 Dimmer curves Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Settings’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘Curves Select’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to select the required dimmer curve. -
Page 24: Pwm Frequency
Operating 7.2.13 PWM frequency Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Settings’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘PWM Frequency’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to choose between ‘12KHz’... -
Page 25: Display Lighting
Operating 7.2.16 Display lighting Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Settings’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘Backlight Time’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to choose between ‘Always on’... -
Page 26: System Reset
Operating 7.2.19 System reset Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Settings’ . Press [Setup] to confirm the selection. Press [Up]/[Down] until the display shows ‘Reset Motor’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to choose between ‘No’... -
Page 27: System Information
Operating 7.2.21 System information Press [Mode] to activate the main menu. Press [Mode] or [Up]/[Down] until the display shows ‘Information’ . Press [Setup] to confirm the selection. Press [Up]/[Down] to select the required submenu. The following submenus are available: Menu level 2 Menu level 3 Function ‘Version’... -
Page 28: Menu Overview
Operating 7.3 Menu overview Control Auto Program Sound Slave Settings Information Address Slave1 Pan Angle Version Yes/No 540/360 Vx.x / 0627 Channels Tilt Tilt Tilt Tilt Slave2 Pan Inv Temperature 10/20-CH Yes/No Normal/Inverted LED:xx°C Red1 Motor Auto Mode Mode Tilt Inv Time Normal/Inverted PowerTime:xxxxxh... -
Page 29: Functions In 10-Channel Dmx Mode
Operating 7.4 Functions in 10-channel DMX mode Channe Value Function Rotation (pan) 000…255 Fixed position (0° to 540°) Inclination (tilt) 000…255 Fixed position (0° to 220°) Pan/tilt speed 000…255 Decreasing speed 000…255 Dimmer intensity (0% to 100%) Strobe 0…10 No function 11…127 Linear strobe effect, increasing speed 128…255... -
Page 30: Functions In 20-Channel Dmx Mode
Operating Channe Value Function 095…099 Normal rotation 100…104 Inverted rotation 105…109 Normal tilt 110…114 Inverted tilt 115…119 No function 120…124 No function 125…129 PWM frequency 12 kHz 130…134 PWM frequency 6 kHz 135…139 PWM frequency 3 kHz 140…144 PWM frequency 1 kHz 145…149 Dynamic sound control 150…154... - Page 31 Operating Channe Value Function 11…127 Linear strobe effect, increasing speed 128…255 Random strobe effect, increasing speed Colour settings 000…024 No function 025…031 R: 255; G: 000; B: 000; W: 000 032…038 R: 255; G: 000; B: 000; W: 100 039…045 R: 255;...
- Page 32 Operating Channe Value Function 249…255 R: 255; G: 255; B: 255; W: 255 Colour change 000…017 No function 018…034 Colour shift 1 035…051 Colour shift 2 052…068 Colour shift 3 069…085 Colour shift 4 086…102 Colour shift 5 103…119 Colour shift 6 120…136 Colour shift 7 137…153...
- Page 33 Operating Channe Value Function 025…029 No function 030…034 No function 035…039 No function 040…044 No function 045…049 Automatic mode of the fan 050…054 Maximum fan speed 055…059 Minimum fan speed 060…064 Fan off 065…069 Linear proportional course (Linear) 070…074 Quadratic curve with a flat profile at the beginning and a steep profile at the end (Square Law) 075…079 Inverted square curve with a steep course at the beginning and a flat course at the end (inverse square law)
-
Page 34: Technical Specifications
Technical specifications Technical specifications 198 mm 159 mm Light source 12 × RGBWW LED, 8 W each Optical properties Beam angle 9° Rotation angle (pan), max. 540° Inclination angle (tilt), max. 220° Dimmer Electronic, 0…100% Control protocols DMX 512/RDM Control DMX, buttons and display on the device, infrared remote control (item no. -
Page 35: Further Information
Technical specifications Further information Lamp type Light output 96 W Colour mix RGBWW Motorised zoom SonicPulse MH Wash 1208 Moving Head... -
Page 36: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 37: Troubleshooting
DMX interface circuit. 4. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. SonicPulse MH Wash 1208 Moving Head... -
Page 38: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi‐ ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 39: Protecting The Environment
You can also return your old device to Tho‐ mann GmbH at no charge. Check the current conditions on www.thomann.de. Proper disposal protects the environment as well as the health of your fellow human beings. - Page 40 Notes SonicPulse MH Wash 1208 Moving Head...
- Page 41 Notes SonicPulse MH Wash 1208 Moving Head...
- Page 42 Notes SonicPulse MH Wash 1208 Moving Head...
- Page 44 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
