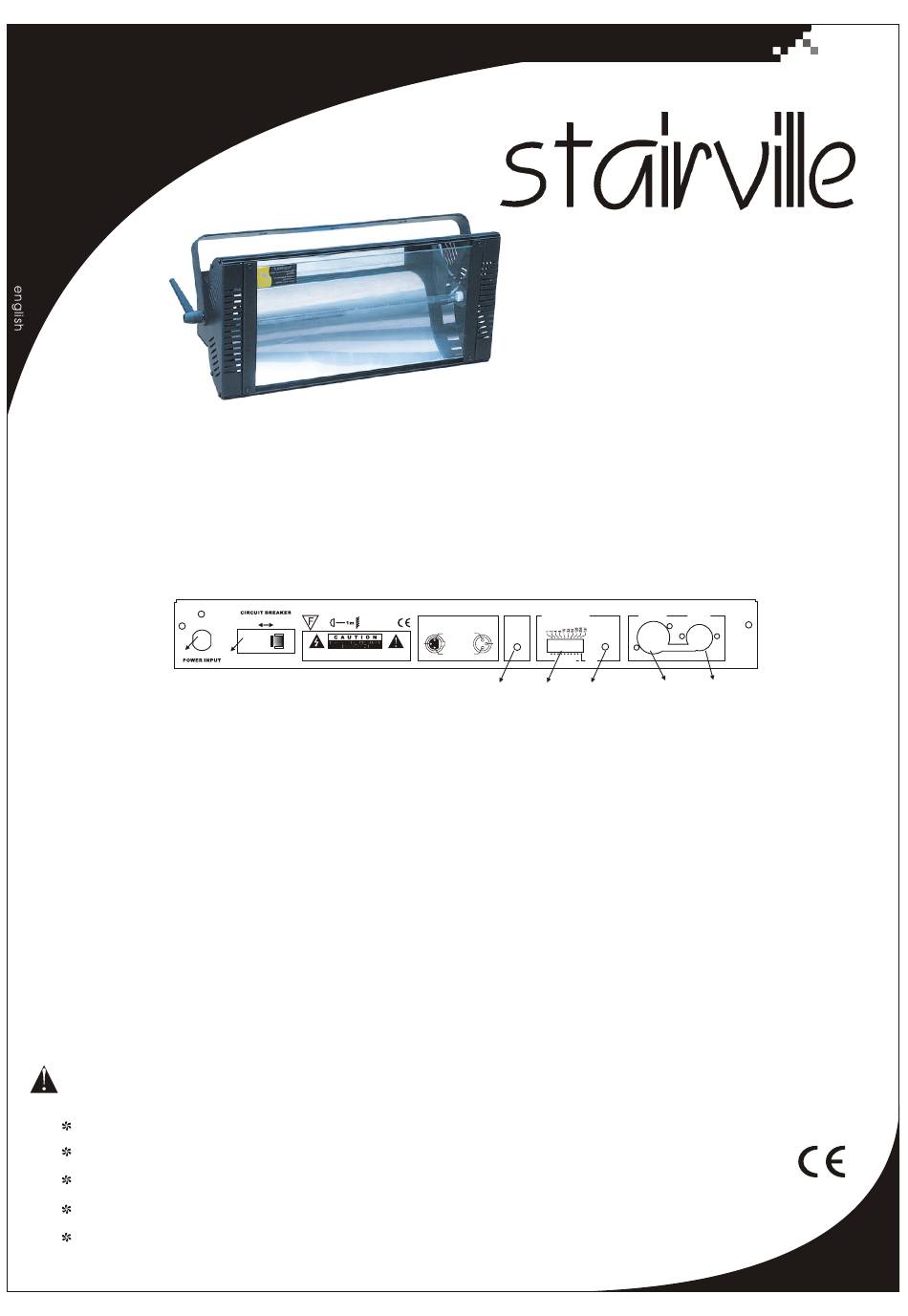

user manual

PRODUCT DESCRIPTION:

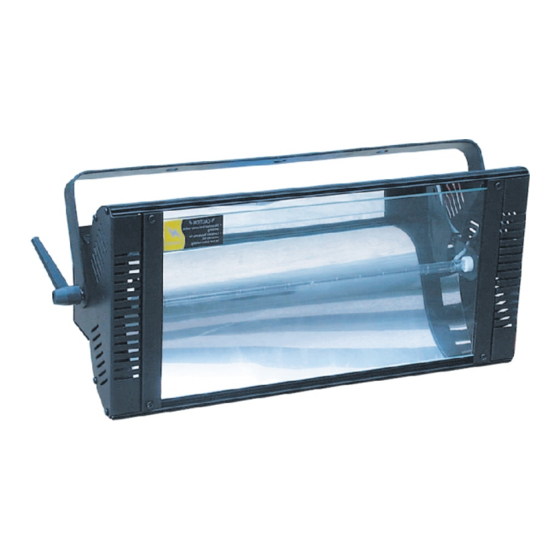

This model is a powerful DMX strobe that allows to control flash speed and dimmer.
It has two operating mode by changing dip switch setting: self-test mode and DMX
pack mode.

GENERAL FUNCTIONS :

1
1.POWER INPUT: AC 120/230/240/250V 50/60Hz
2.CIRCUIT BREAKER: 16A
3.POWER INDICATOR: indicates when power is on.
4.DMX DIP SWITCH: Assign dip switch 10 to OFF, this unit is in DMX pack mode...
Assign dip switch 10 to ON, this unit is in self-test mode.
5.DMX INDICATOR: Indicates when DMX signal is available.
6.DMX SIGNAL OUTPUT: XLR female socket, use to connect other unit.
7.DMX SIGNAL INPUT: XLR male socket, use to receive DMX signals.

OPERATING INSTRUCTIONS:

1. Please confirm power input is matched with that specified on this unit.
2. Plug in power cord to turn the power on.
3.this unit has two operating modes: self-test mode and DMX pack mode.
4. Switch dip switch 10 to ON position, this unit is in self-test mode.
5. Switch dip switch 10 to OFF position, this unit is in DMX pack mode. Follow DMX
address setting printed on the rear for desired flash speed and dimmer.
6. For safety, disconnect power cable when not using.
CAUTION:
Avoid direct eye exposure.
Disconnect from main power before replacing lamp or servicing unit.
Remember to always replace with same lamp.
To prevent fire or shock hazard, do not expose this unit to rain or moisture.
This product must not be used continuously longer than 15 minutes under
maximum speed and dimmer.
ON
OFF
2
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING: SHOCK HAZARD-DO NOT OPEN
SWITCH
DMX DIPSWITCH
DMX OUT
DMX IN
POWER
INDICATCR
2
1
OFF
3
3
1=Ground
2=Data -
ON
2
1
3=Data +
ADDRESS
TEST
3
4
5
PS 1500 DMX
DMX OUT
DMX IN
DMX
INDICATCR
6
7
