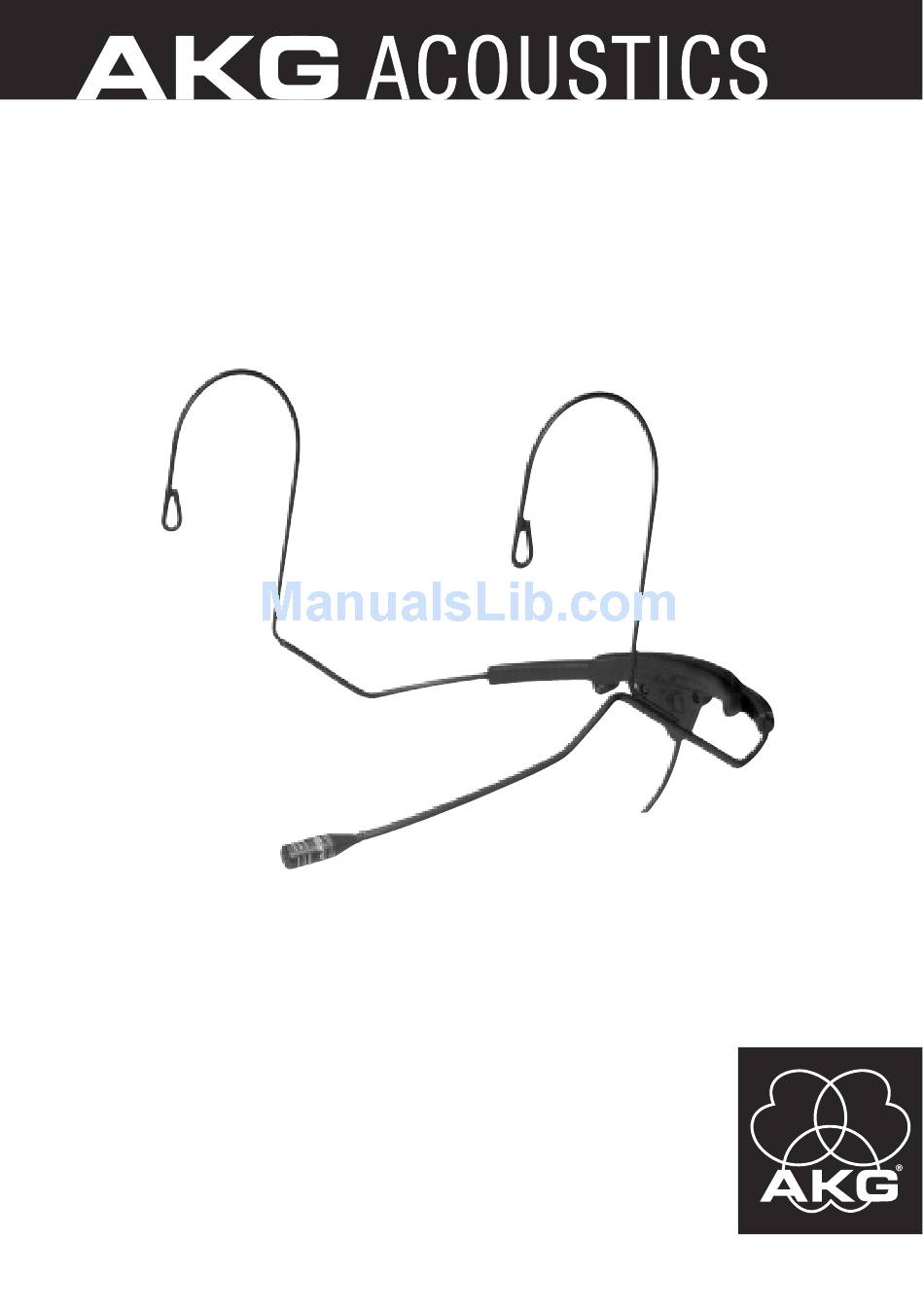

  • Page 1 C 477 Bedienungsanleitung ... . S. 2 Bitte vor Inbetriebnahme des Gerätes lesen! User Instructions ....p. 8 Please read the manual before using the equipment! Mode d’emploi .

  • Page 2: Safety And Environment

    The C 477 WR is available in six versions: 1. C 477 WR L: with 3-pin mini XLR connector for use with AKG body- pack transmitters or the optional MPA III phantom power adapter from AKG for connecting to mixers or amplifiers. Black, microphone on the left.
  • Page 3 The C 477 WR is a prepolarized condenser microphone and requires a supply voltage of 1.5 VDC to 12 VDC. You can connect the C 477 WR L directly to any bodypack transmitter 3.1 C 477 WR L from AKG.

  • Page 4: Operating Notes

    Fig. 2: C 477 oc circuit diagram. The C 477 WR oc uses a connecting cable with stripped and tinned leads. You can use this microphone with bodypack transmitters or other devices that provide a supply voltage between 1.5 VDC and 12 VDC.
  • Page 5 4 Operating Notes 4.1 Putting the Microphone On Fig. 3: Microphone position on Fig. 4: Adjusting the headband. the head. 1. Put the microphone on as shown in fig. 3. Refer to fig. 3. 2. Bend the microphone arm so that the microphone will sit in front of the corner of the user’s mouth, as close as possible to the mouth.

  • Page 6: Troubleshooting

    Remedy 1. No sound: 1. No supply voltage. 1. Check phantom power supply. 2. Microphone arm contacts 2. Contact an AKG service soiled, shorted by center. moisture, or corroded. 2. Loud pop, wind, and/or 1. Microphone sits too close 1. Align microphone sound breath noise: to mouth or nose.

  • Page 7: Specifications

    7 Specifications Type: Pre-polarized dual-diaphragm condenser microphone Polar pattern: Omnidirectional Frequency range: 20 Hz to 20,000 Hz Sensitivity at 1000 Hz: 8 mV/Pa Max. SPL: 133 dB Equivalent noise level: <26 dB-A Signal-to-noise ratio (A-weighted): >68 dB-A Electrical Impedance: 3.5 kΩ Recommended load impedance: 10 kΩ...
